Danfoss 2S16SL

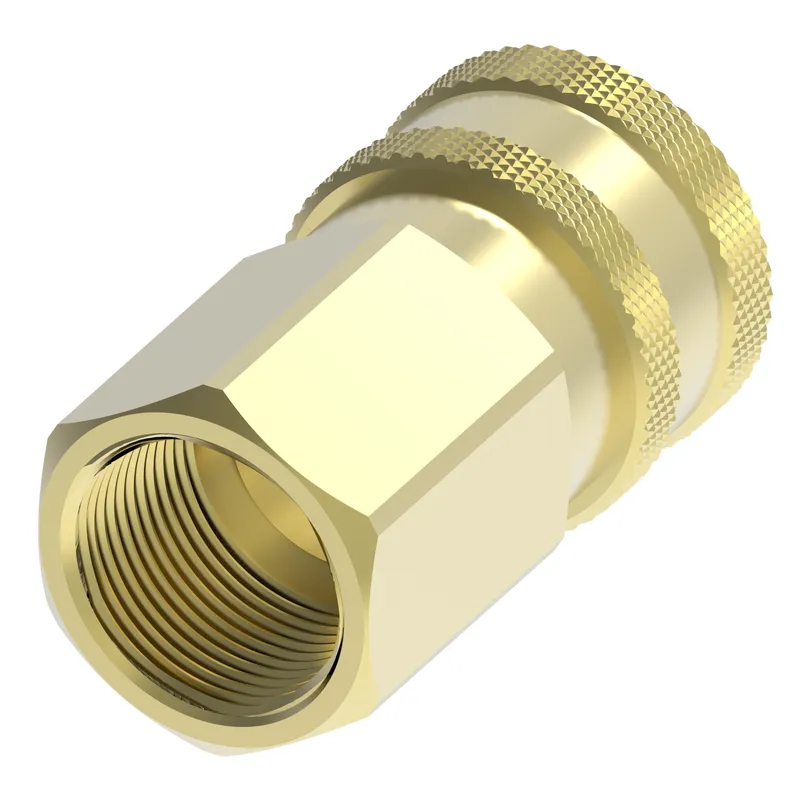

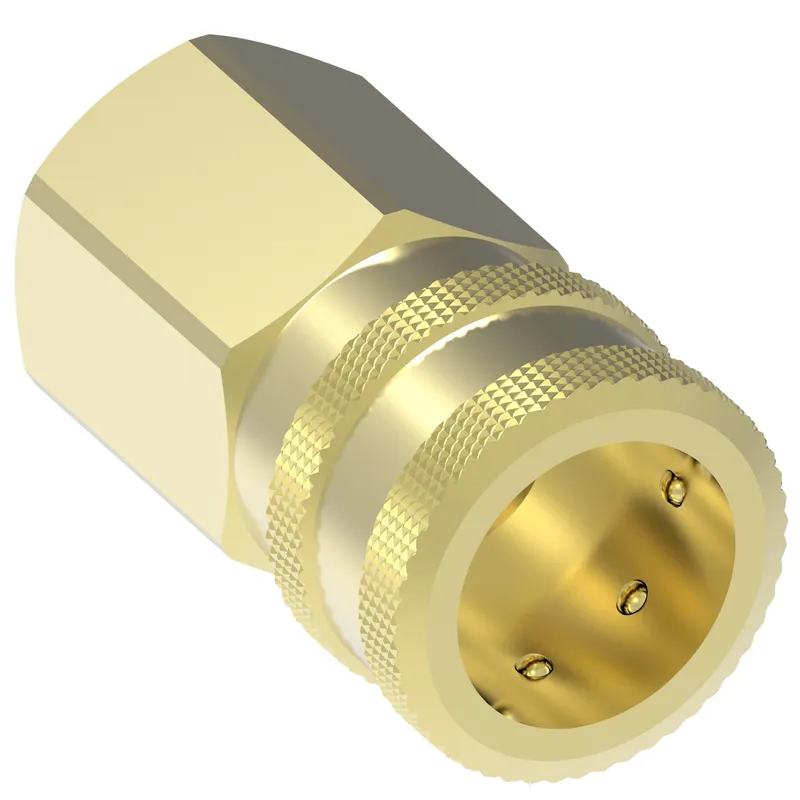

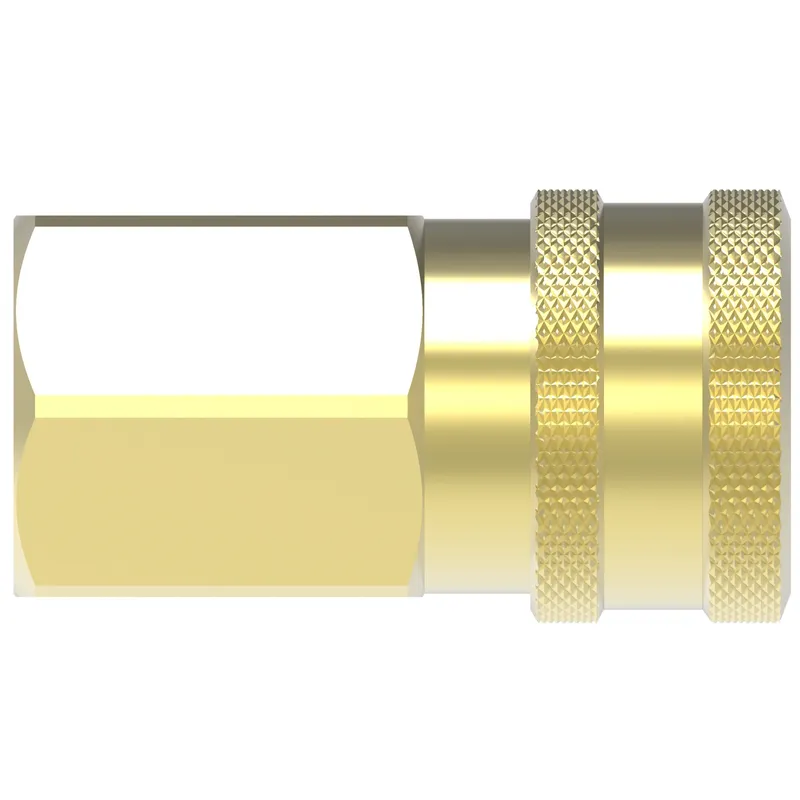

Cplng, ST SERIES FEMALE, BRASS

MPN: 2S16SL
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 2S16SL?

Danfoss Cplng, ST SERIES FEMALE, BRASS, manufacturer part number 2S16SL. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146158437
Angle shape	Straight
Body size	1/4
Brand	Danfoss
Burst pressure min bar	1434
Burst pressure min psi	20800
Connection style	Manual connect
End size 2	-4
End type 1	Female Push to Connect
End type 2	Female pipe (NPTF)
Flow rate GPM	5.60
Flow rate LPM	21.20
Fluid compatibility	Versatile fluid
Hex size 1 IN	0.810
Hex size 1 MM	20.574
Item type	Female half
Latch type	Push/pull
Product length in	1.500
Product material	Brass
Safety locking mechanism	Sleeve lock
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	Straight thru
Working pressure max psi	5200
Working pressure max BAR	359
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
