Danfoss 2R28P15

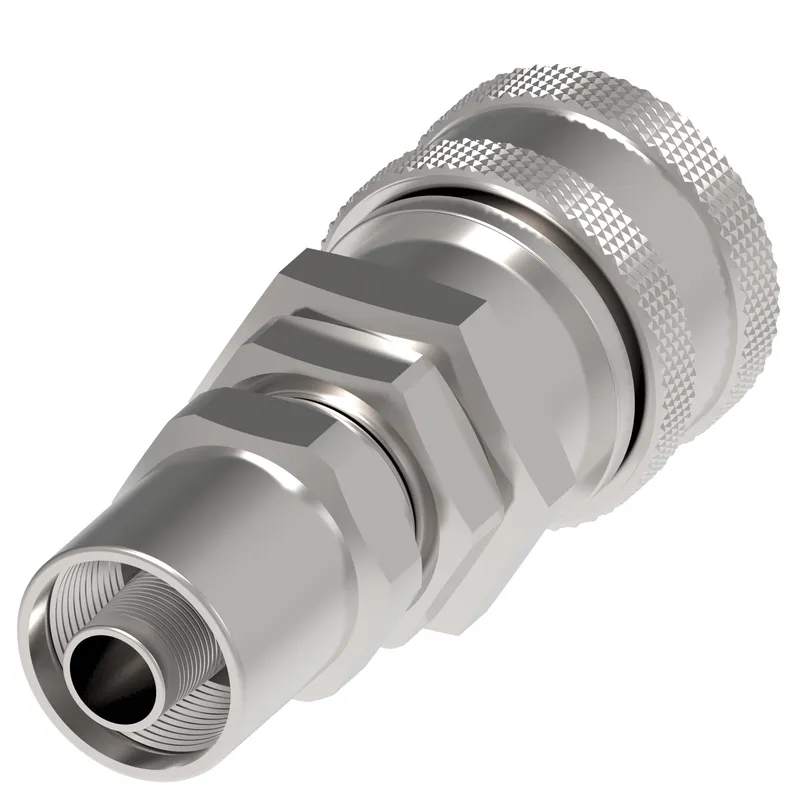

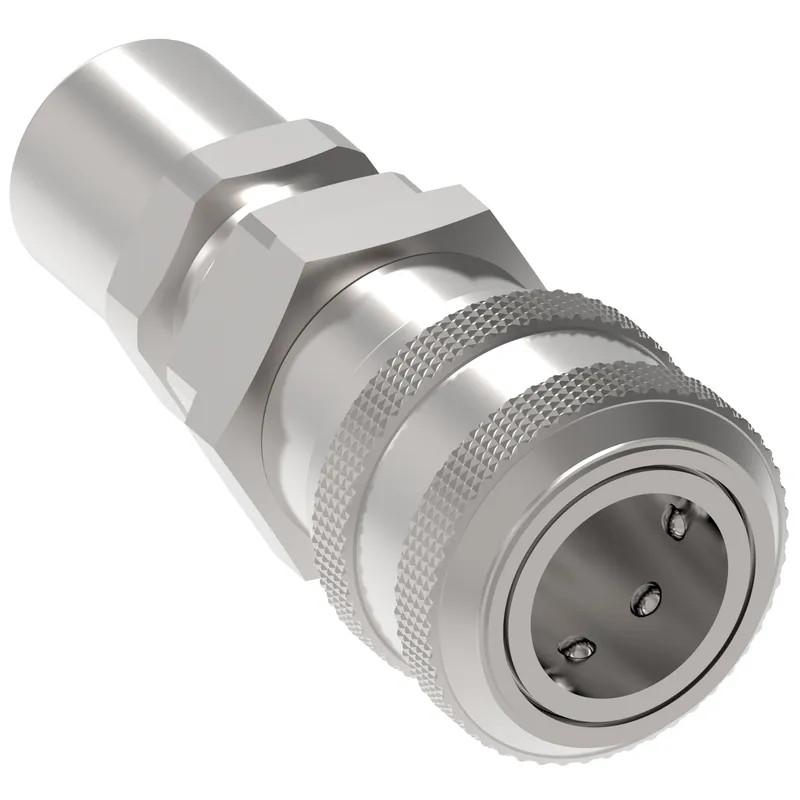

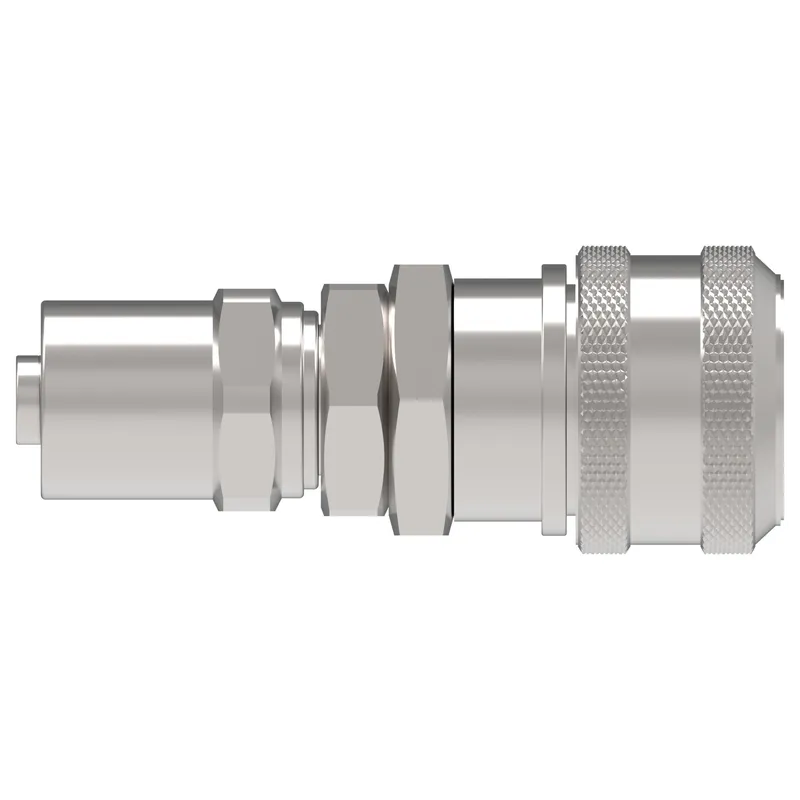

Cplng, 2RL SERIES FEMALE, STEEL

MPN: 2R28P15
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 2R28P15?

Danfoss Cplng, 2RL SERIES FEMALE, STEEL, manufacturer part number 2R28P15. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146165121
Angle shape	Straight
Body size	1/4
Brand	Danfoss
Burst pressure min bar	83
Burst pressure min psi	1200
Connection style	Manual connect
End type 1	Female Push to Connect
End type 2	Line/hose/tube
Finish plating	Zinc
Flow rate GPM	356.00
Flow rate LPM	1347.61
Fluid compatibility	Compressed air
Hex size 1 IN	1.000
Hex size 1 MM	25.400
Item type	Female half
Latch type	Push/pull
Product length in	3.480
Product material	Carbon steel
Safety locking mechanism	Ring lock
Seal material	Nitrile (NBR)
Sub brand	Hansen
Working pressure max psi	300
Working pressure max BAR	21
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
