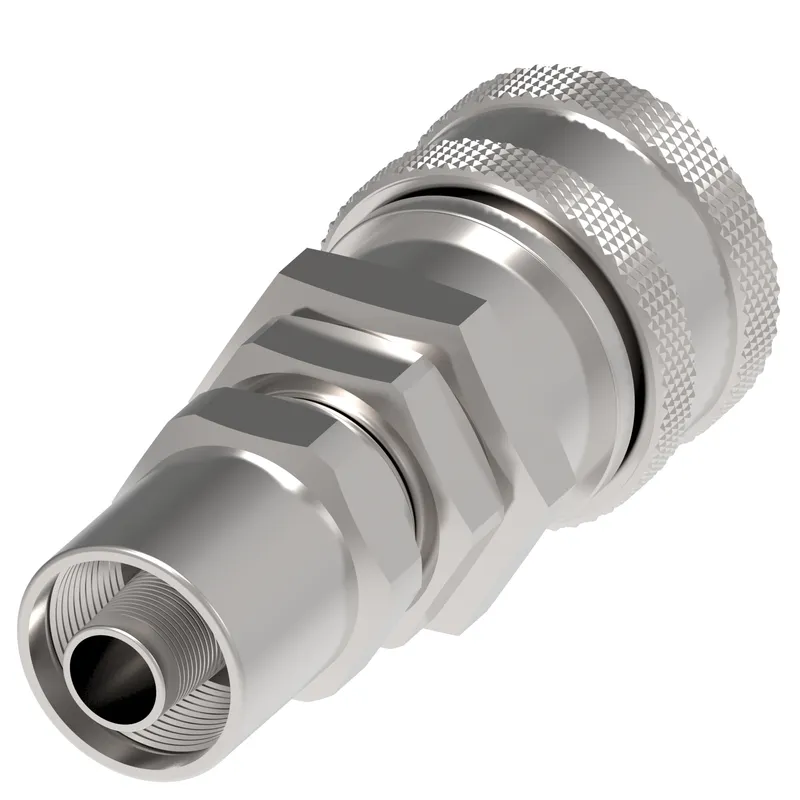

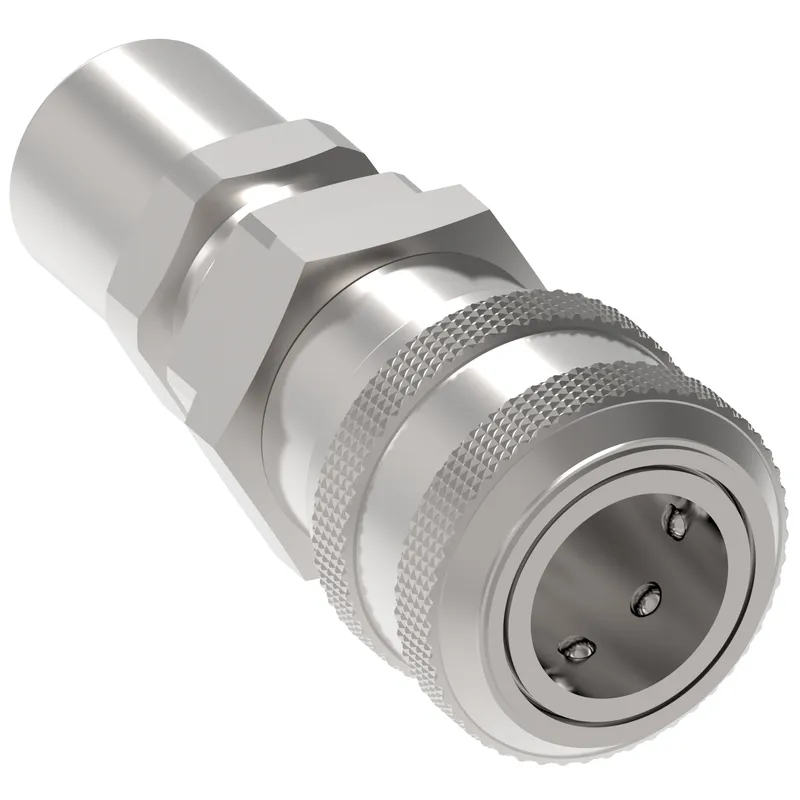

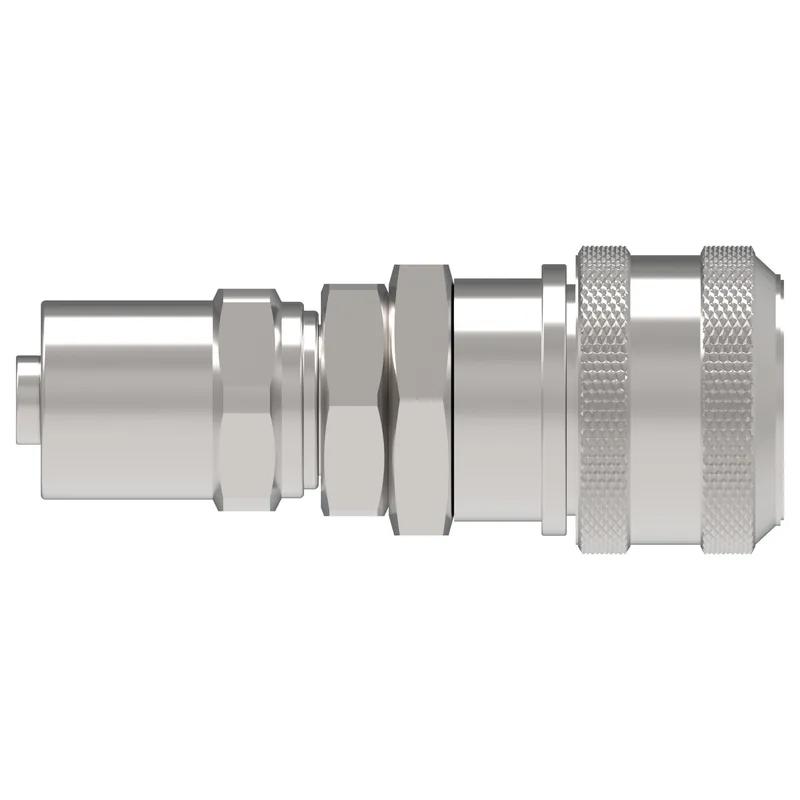

Danfoss 2R23D9LLV

Cplng 2RL SERIES Female STEEL SS valve

MPN: 2R23D9LLV
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 2R23D9LLV?

Danfoss Cplng 2RL SERIES Female STEEL SS valve, manufacturer part number 2R23D9LLV. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789255068
Angle shape	Straight
Body size	1/4
Brand	Danfoss
Burst pressure min bar	83
Burst pressure min psi	1200
Connection style	Manual connect
End type 1	Female Push to Connect
End type 2	Line/hose/tube
Finish plating	Zinc
Flow rate GPM	356.00
Flow rate LPM	1347.61
Fluid compatibility	Compressed air
Hex size 1 IN	1.410
Hex size 1 MM	35.814
Item type	Female half
Latch type	Push/pull
Product material	Carbon steel
Safety locking mechanism	Ring lock
Seal material	Nitrile (NBR)
Sub brand	Hansen
Working pressure max psi	300
Working pressure max BAR	21
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40

2R23D9LLV: frequently asked questions

When can 2R23D9LLV be shipped?

2R23D9LLV is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 2R23D9LLV in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 2R23D9LLV and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2R23D9LLV, subject to availability and destination.
