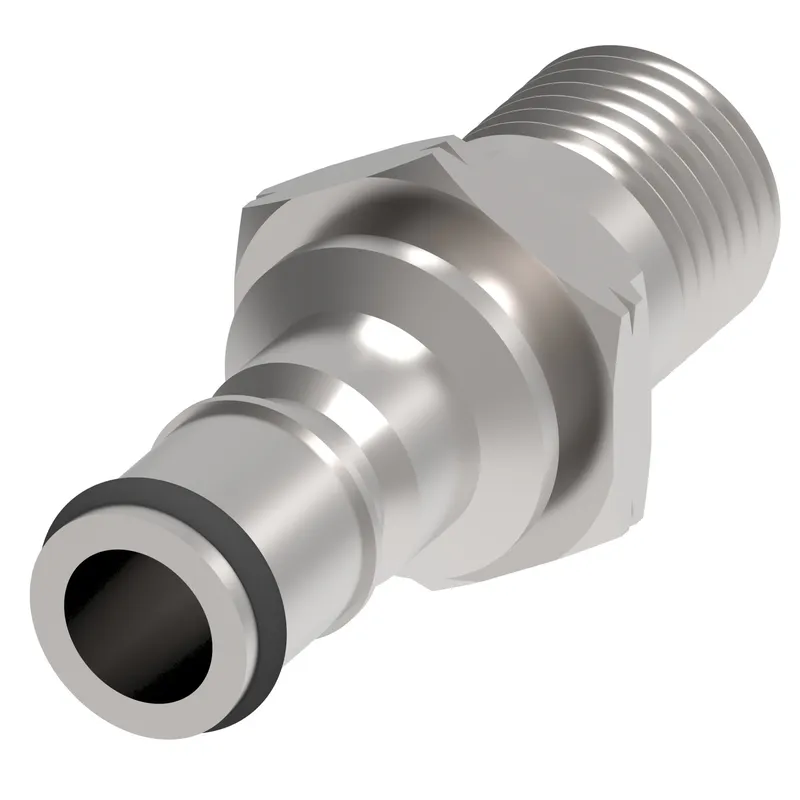

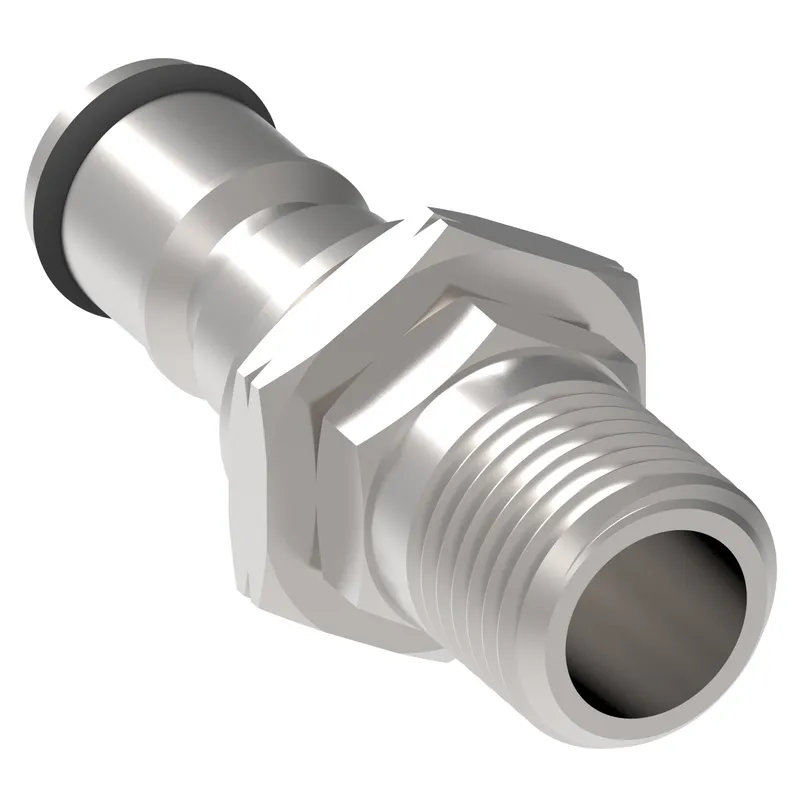

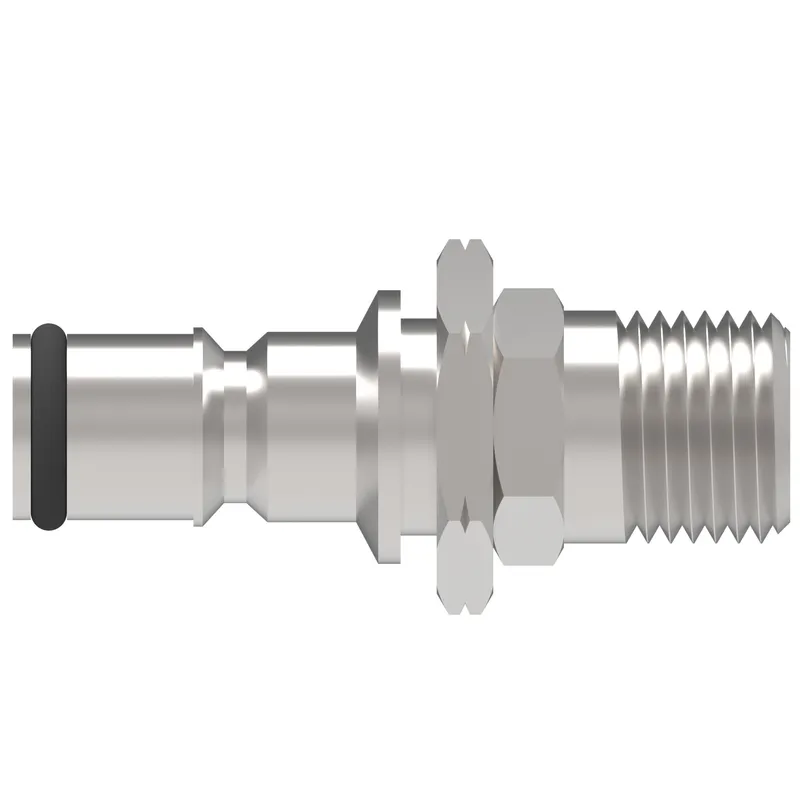

COUPLING,2KIG,M,1/4,SS,-4MNPTF,EPDM

Name: COUPLING,2KIG,M,1/4,SS,-4MNPTF,EPDM
Brand: Danfoss (Drives)
SKU: 2KIGF15192

MPN: 2KIGF15192 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Danfoss Hansen® quick disconnect couplings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 2KIGF15192 be shipped?

2KIGF15192 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 2KIGF15192 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 2KIGF15192 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2KIGF15192, subject to availability and destination.

Danfoss COUPLING,2KIG,M,1/4,SS,-4MNPTF,EPDM, manufacturer part number 2KIGF15192. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146198457
Air inclusion max cc	2.20
Air inclusion max in3	0.13
Angle shape	Straight
Body size	1/4
Burst pressure min bar	414
Burst pressure min psi	6000
Connection style	Manual connect
End size 1	-4
End size 2	-4
End type 1	Male push to connect
End type 2	Male pipe (NPTF)
Flow rate GPM	2.20
Flow rate LPM	8.33
Fluid compatibility	Liquid and gases
Fluid loss cc	1.00000
Fluid loss in3	0.06100
Hex size 1 IN	0.690
Hex size 1 MM	17.526
Item type	Male half
Latch type	Push/pull
Product material	Stainless steel
Safety locking mechanism	None
Seal material	Ethylene propylene (EPDM)
Thread size 1	1/4-18 NPTF
Working pressure max psi	1500
Working pressure max BAR	103
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
