Danfoss 2K6

COUPLING,HK,M,1/4,CS,-6UNF,NBR

MPN: 2K6
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 2K6?

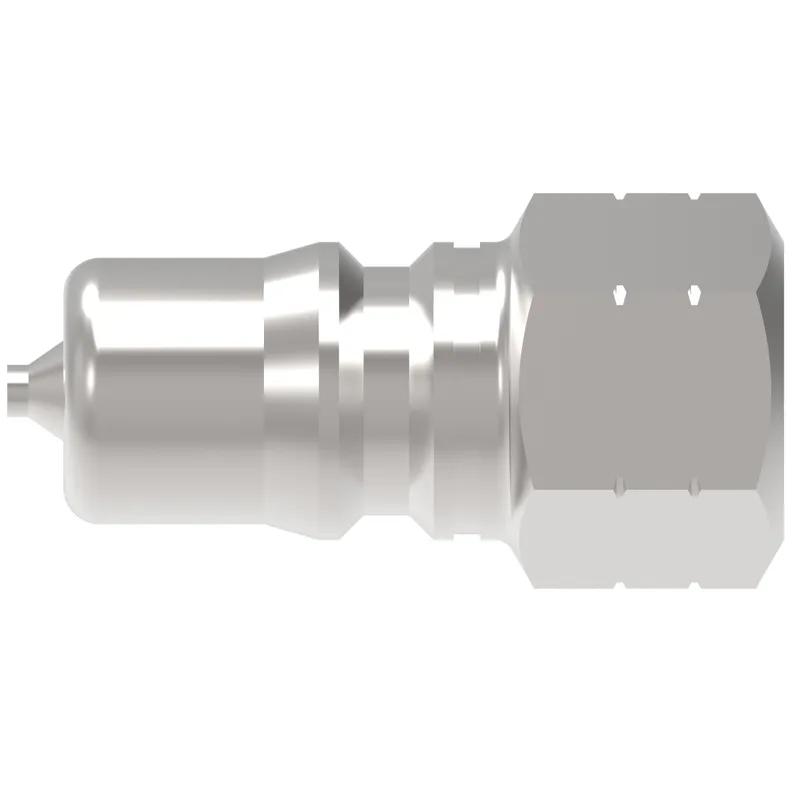

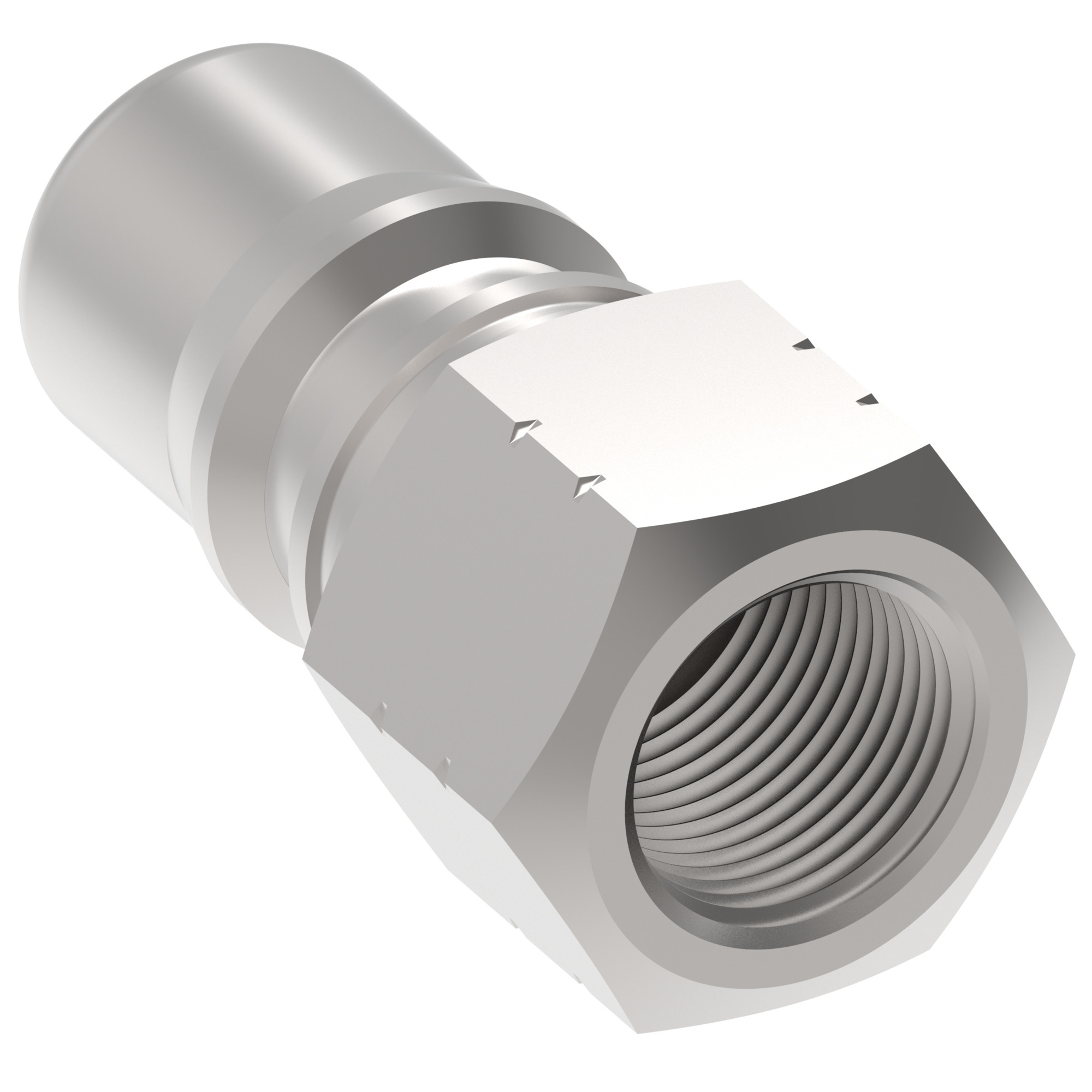

Danfoss COUPLING,HK,M,1/4,CS,-6UNF,NBR, manufacturer part number 2K6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146100214
Air inclusion max cc	1.20
Air inclusion max in3	0.07
Angle shape	Straight
Application	Aerospace, Agriculture, Chemical, Construction, Consumer products, Fluid transfer, Food and beverage, General industry, Hvac, Hydraulics, Law enforcement/rescue, Medical, Military, Oil and gas, Transportation, Trucks
Body size	1/4
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End size 1	-6
End size 2	9/16"
End type 1	Male push to connect
End type 2	Female 37 degree swivel
Finish plating	Zinc
Flow rate GPM	3.00
Flow rate LPM	11.36
Fluid compatibility	Hydraulic fluid
Fluid loss cc	0.90000
Fluid loss in3	0.05500
Hex size 1 IN	0.880
Hex size 1 MM	22.352
Item type	Male half
Latch type	Push/pull
Product length in	1.660
Product material	Carbon steel
Safety locking mechanism	None
Seal material	Nitrile (NBR)
Thread size 1	9/16-18 UNF
Valve type	2 way
Working pressure max psi	5000
Working pressure max BAR	345
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40

2K6: frequently asked questions

When can 2K6 be shipped?

2K6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 2K6 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 2K6 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2K6, subject to availability and destination.
