Danfoss 2HL720

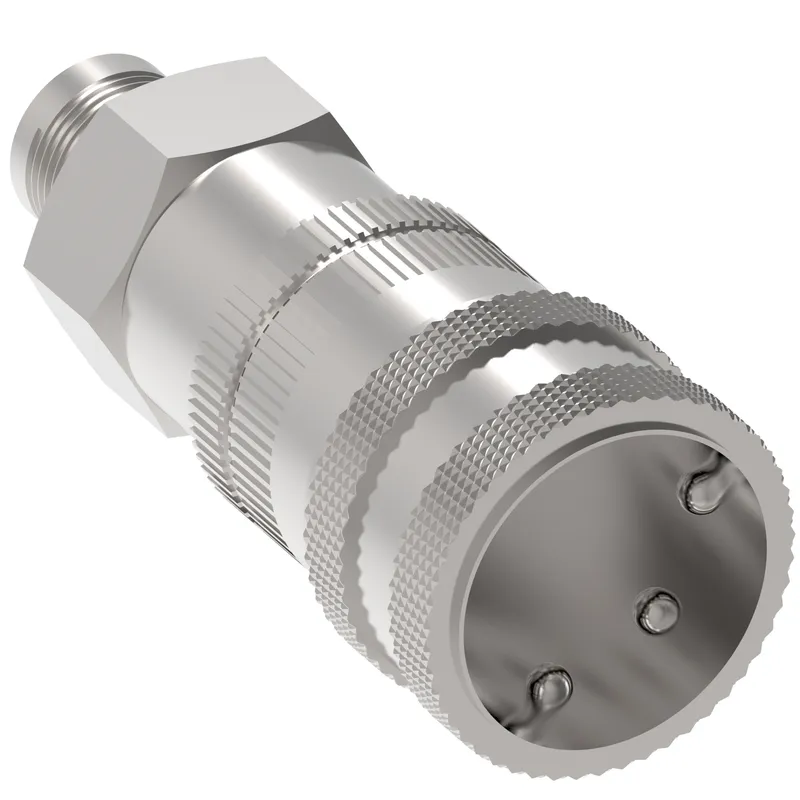

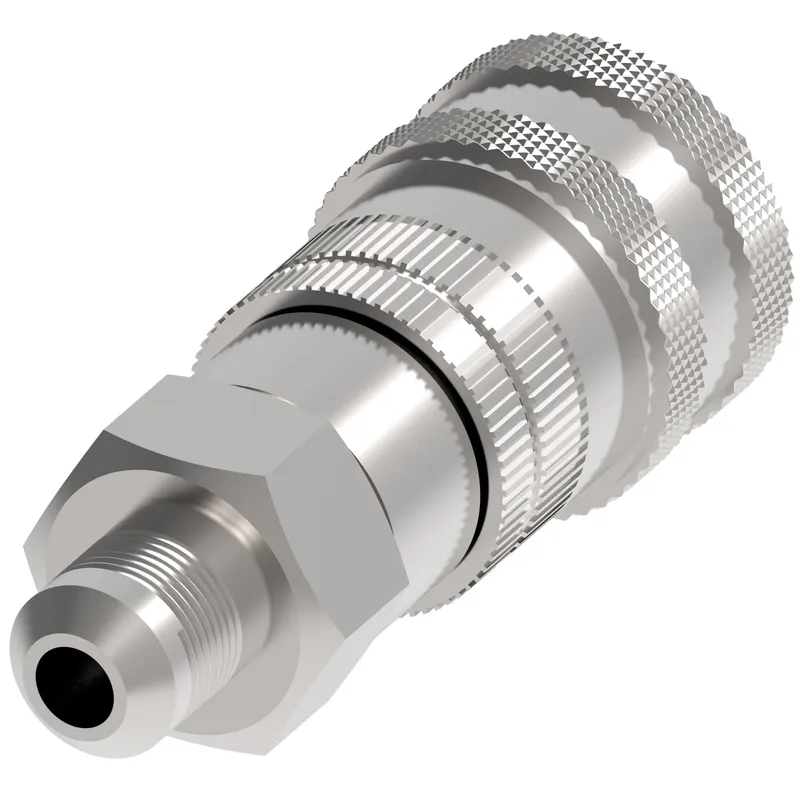

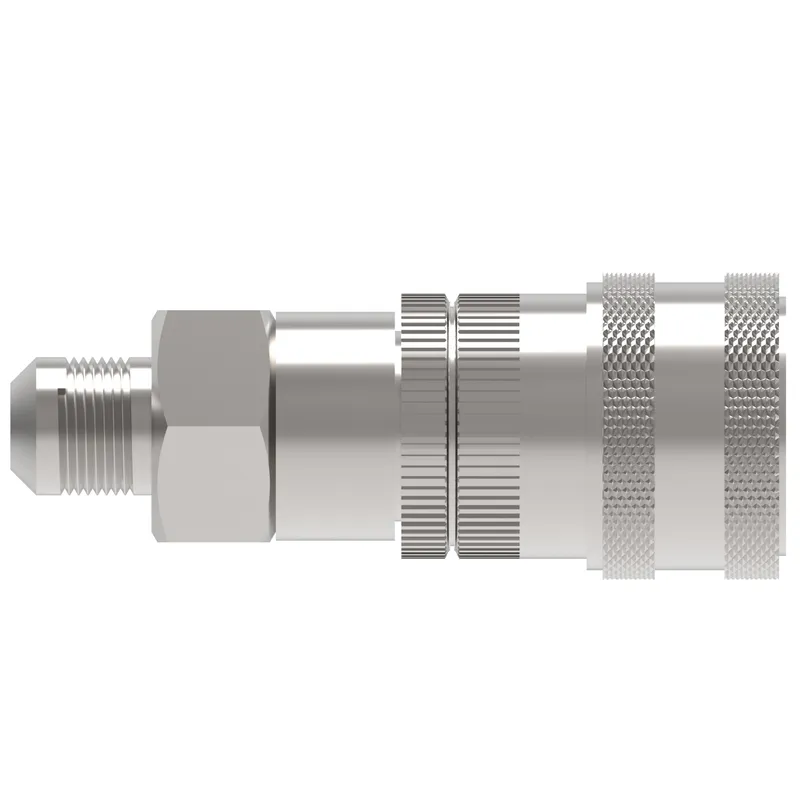

COUPLING,2HKGL,F,1/4,SS,-4MUNF,NBR

MPN: 2HL720
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 2HL720?

Danfoss COUPLING,2HKGL,F,1/4,SS,-4MUNF,NBR, manufacturer part number 2HL720. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146198310
Air inclusion max cc	2.20
Air inclusion max in3	0.13
Angle shape	Straight
Body size	1/4
Burst pressure min bar	414
Burst pressure min psi	6000
Connection style	Manual connect
End size 2	7/16"
End type 1	Female Push to Connect
Flow rate GPM	2.20
Flow rate LPM	8.33
Fluid compatibility	Liquid and gases
Fluid loss cc	1.00000
Fluid loss in3	0.06100
Item type	Female half
Latch type	Push/pull
Product length in	2.800
Product material	Stainless steel
Safety locking mechanism	None
Seal material	Nitrile (NBR)
Working pressure max psi	1500
Working pressure max BAR	103
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
