Danfoss 2HIL16192

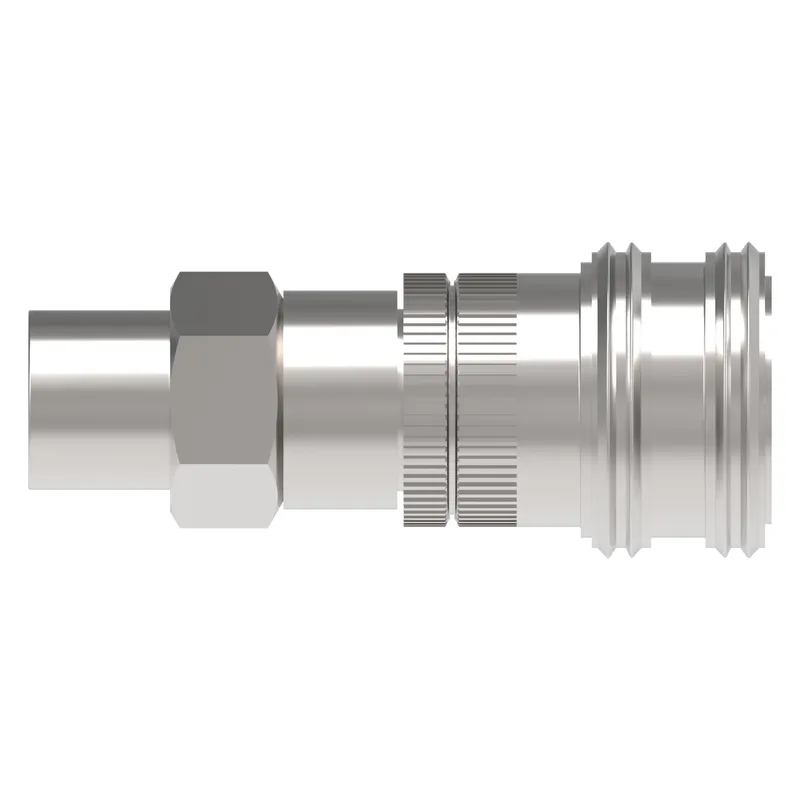

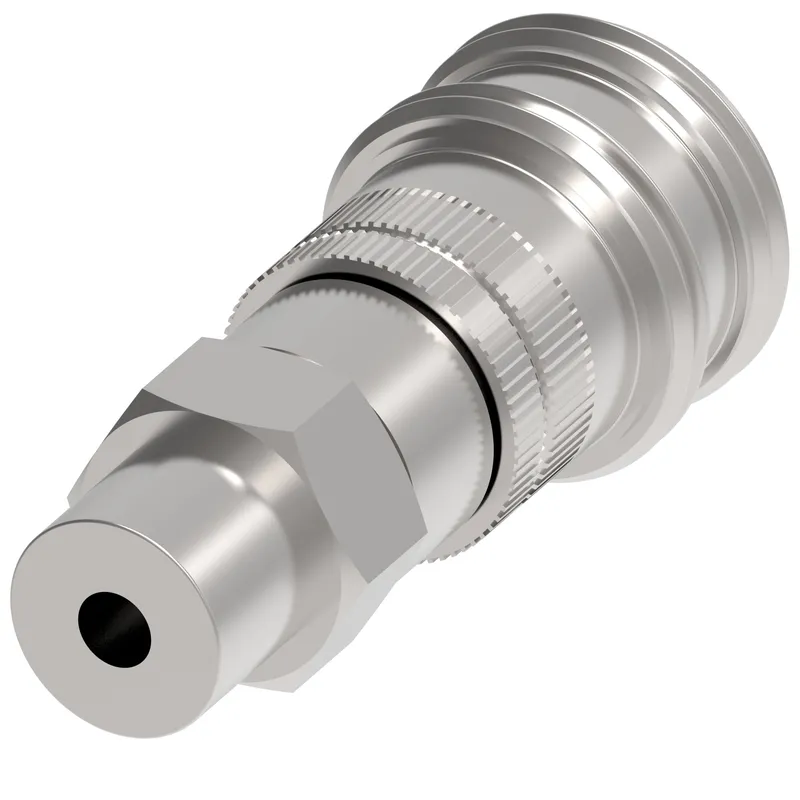

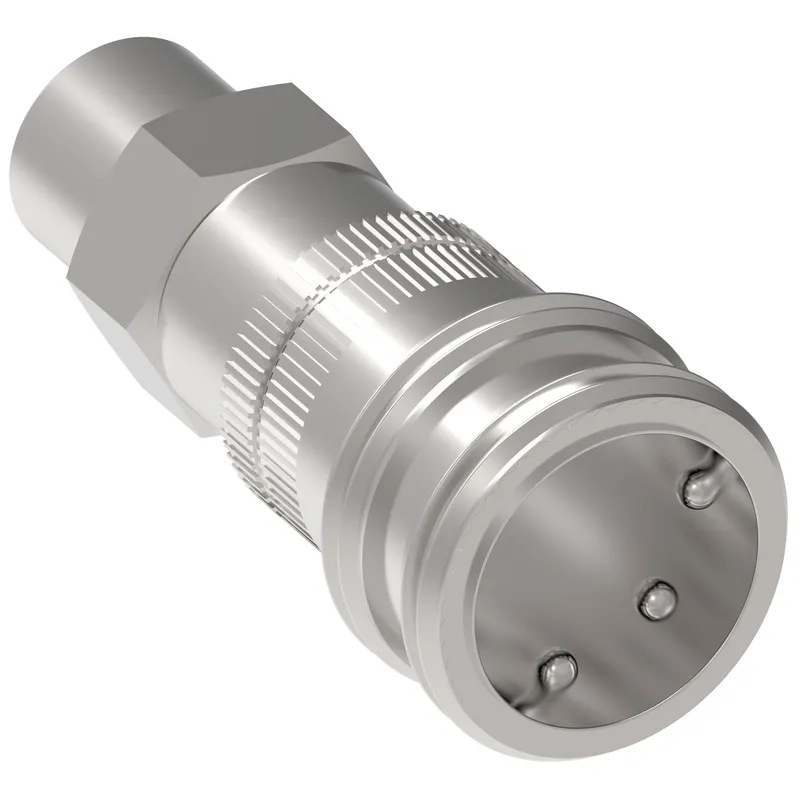

COUPLING,2HIL,F,1/4,SS,-4MNPTF,EPDM

MPN: 2HIL16192
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 2HIL16192?

Danfoss COUPLING,2HIL,F,1/4,SS,-4MNPTF,EPDM, manufacturer part number 2HIL16192. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146100030
Air inclusion max cc	2.20
Air inclusion max in3	0.13
Angle shape	Straight
Body size	1/4
Burst pressure min bar	414
Burst pressure min psi	6000
Connection style	Manual connect
End size 1	-4
End size 2	-4
End type 1	Female Push to Connect
End type 2	Female pipe (NPTF)
Flow rate GPM	2.20
Flow rate LPM	8.33
Fluid compatibility	Liquid and gases
Fluid loss cc	1.00000
Fluid loss in3	0.06100
Hex size 1 IN	0.810
Hex size 1 MM	20.574
Item type	Female half
Latch type	Push/pull
Product material	Stainless steel
Safety locking mechanism	None
Seal material	Ethylene propylene (EPDM)
Thread size 1	1/4-18 NPTF
Working pressure max psi	1500
Working pressure max BAR	103
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
