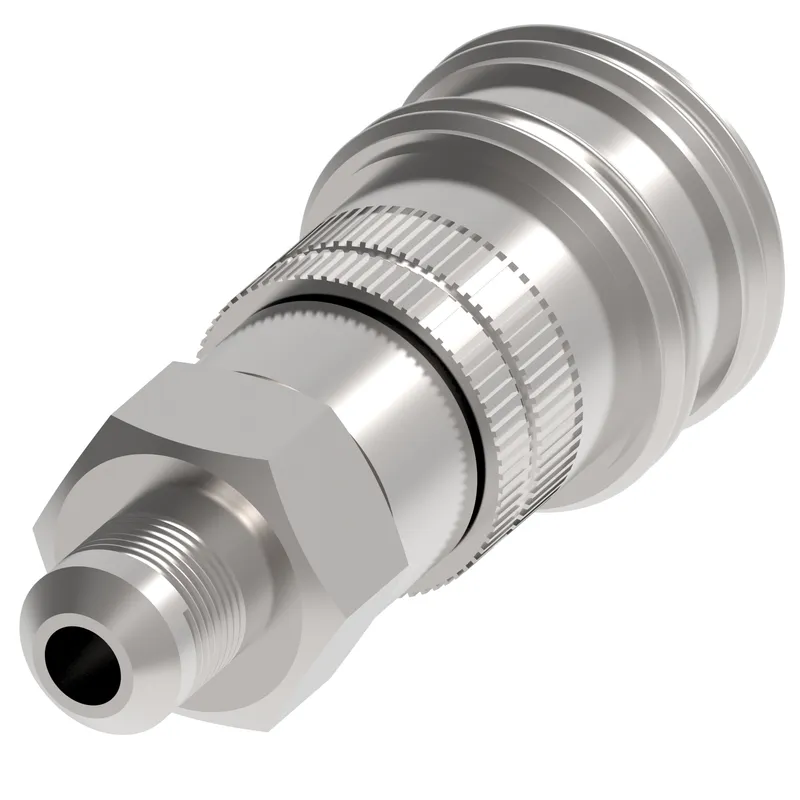

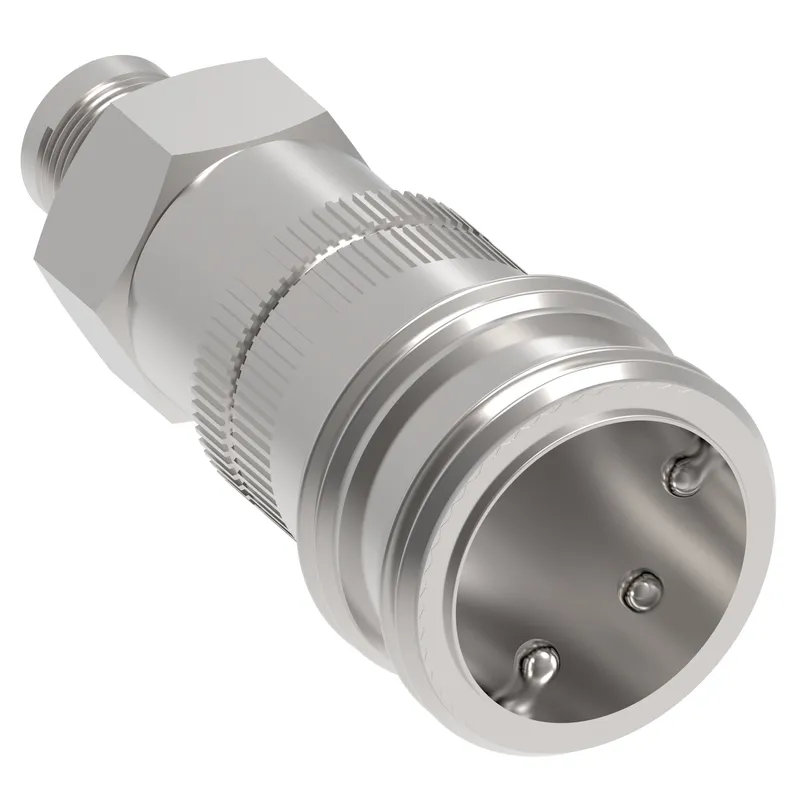

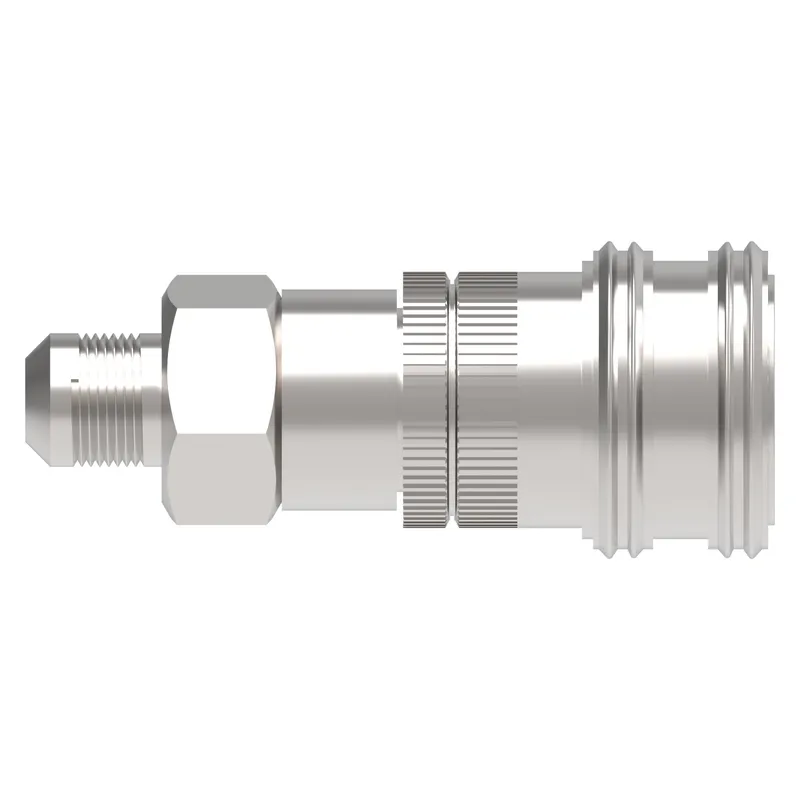

Danfoss 2HIG10

COUPLING,2HKIG,F,1/4,SS,-2MNPTF,NBR

MPN: 2HIG10
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 2HIG10?

Danfoss COUPLING,2HKIG,F,1/4,SS,-2MNPTF,NBR, manufacturer part number 2HIG10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146198068
Air inclusion max cc	2.20
Air inclusion max in3	0.13
Angle shape	Straight
Body size	1/4
Burst pressure min bar	414
Burst pressure min psi	6000
Connection style	Manual connect
End size 1	-2
End size 2	-2
End type 1	Female Push to Connect
End type 2	Male pipe (NPTF)
Flow rate GPM	2.20
Flow rate LPM	8.33
Fluid compatibility	Liquid and gases
Fluid loss cc	1.00000
Fluid loss in3	0.06100
Hex size 1 IN	0.810
Hex size 1 MM	20.574
Item type	Female half
Latch type	Push/pull
Product material	Stainless steel
Safety locking mechanism	None
Seal material	Nitrile (NBR)
Thread size 1	1/8-27 NPTF
Working pressure max psi	1500
Working pressure max BAR	103
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40

2HIG10: frequently asked questions

When can 2HIG10 be shipped?

2HIG10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 2HIG10 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 2HIG10 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2HIG10, subject to availability and destination.
