Danfoss 295044

MPN: 295044
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 295044?

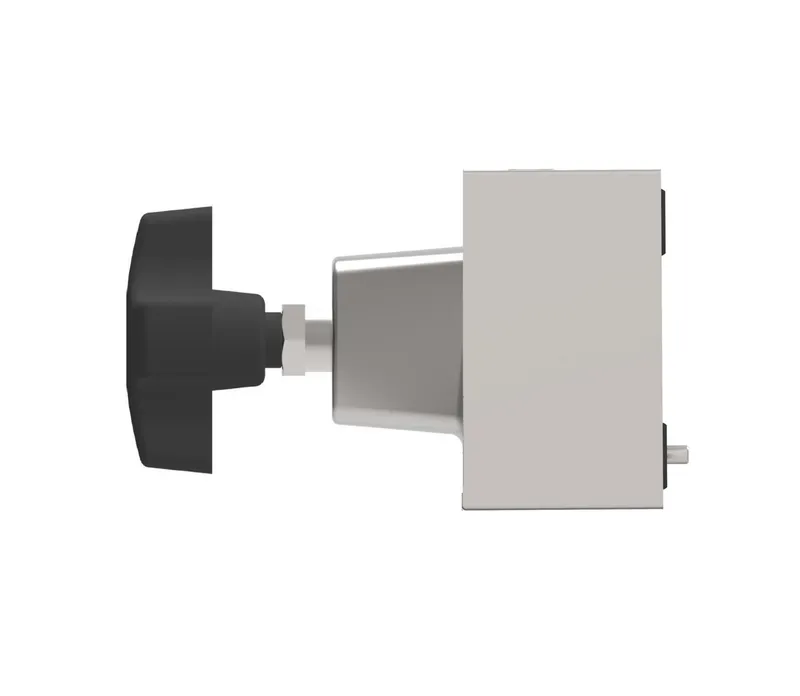

Danfoss F3 CG 03 C 10, F3CG03C10, manufacturer part number 295044. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Direct acting
Adjustment range	35-140 bar (500-2000 psi)
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Design Series	10 Series
Electrical connection	None
Flow rate lpm	30.0
Flow rate USGPM	8.0
Fluid Cleanliness	19/17/14 Micron
Fluid compatibility	Phosphate esters
Hi-vent spring	No
Indicator Light	No
Maximum pressure BAR	207
Maximum pressure PSI	3000
Model Code 1	F3CG03C10
Performance	Standard
Product height in	3.120
Product height mm	79.248
Product length in	6.250
Product length mm	158.750
Product width in	3.190
Product width mm	81.026
Seal material	Fluorocarbon
Size	Size 03
Special feature	None
Stage	Single stage
Tank pressure bar	210
Tank pressure PSI	3000
Valve Mount Type	Subplate/manifold mounted
Valve type	Relief valve
Working temperature max C	70
Working temperature max F	158
Working temperature min C	-20
Working temperature min F	-4
