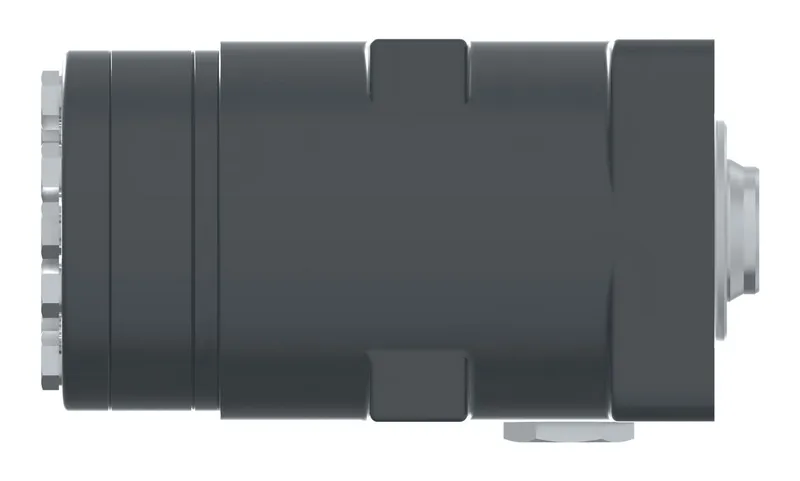

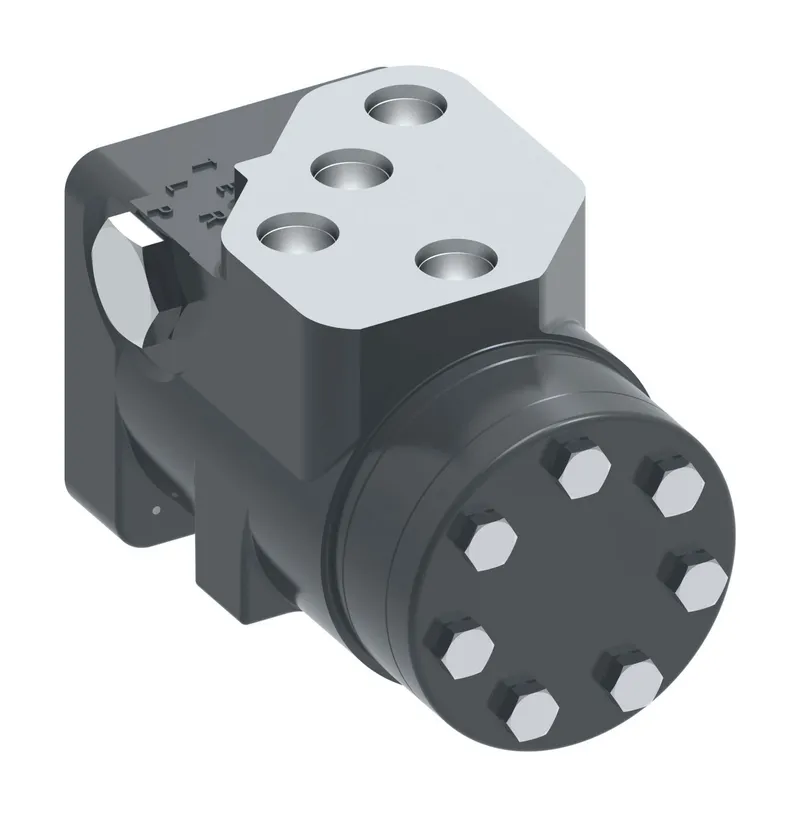

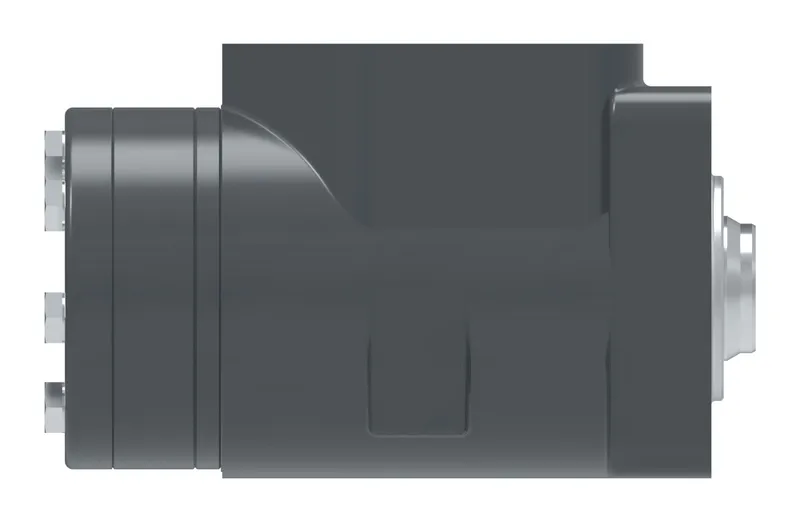

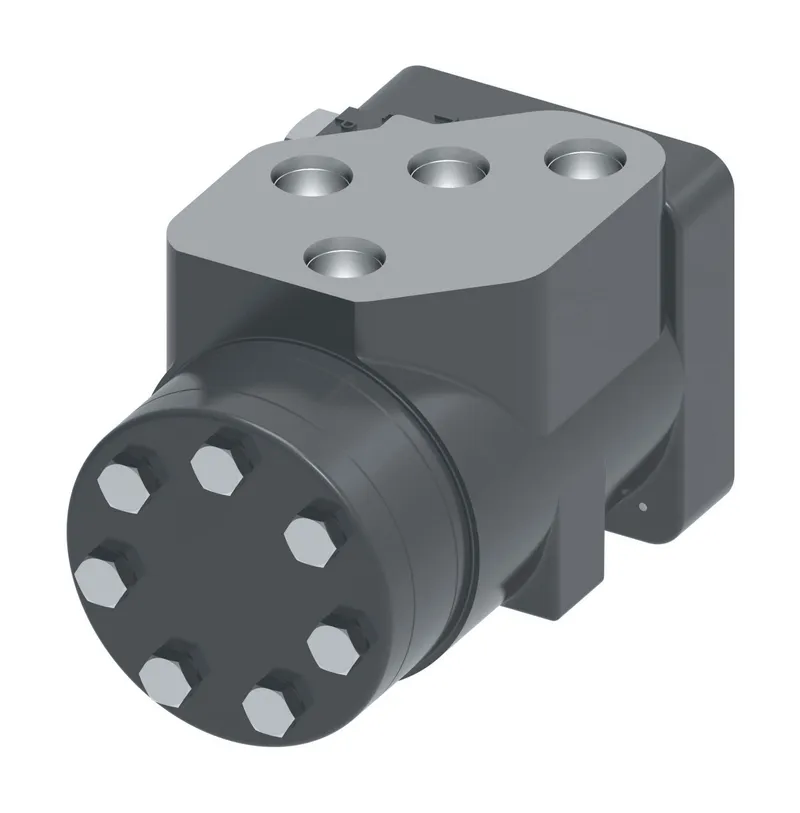

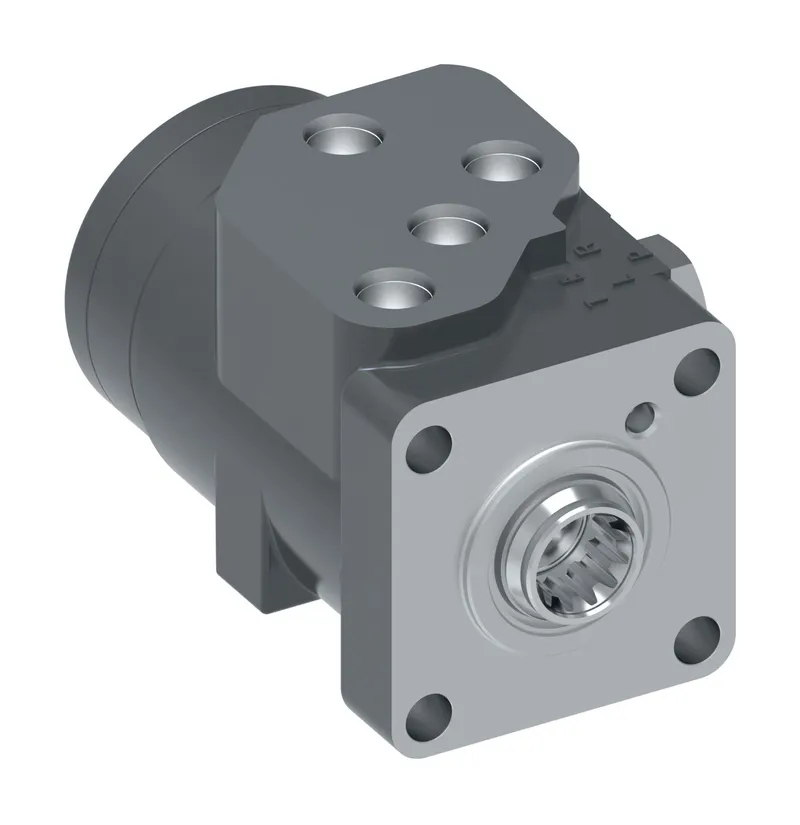

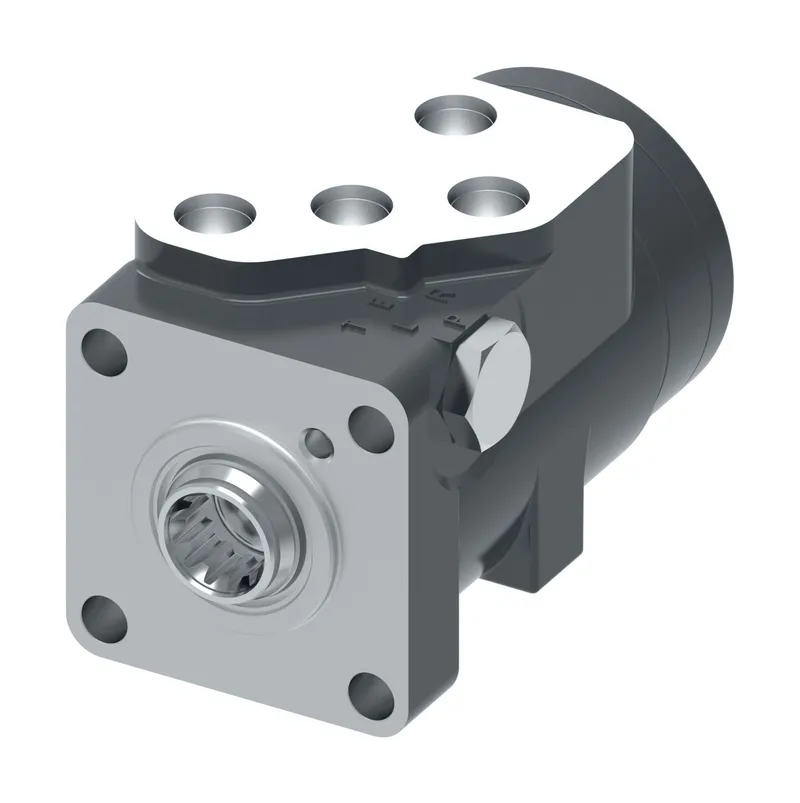

SERIES 5 74 PBN STEERING UNIT
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Hydraulic steering units |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 291-5168-003 be shipped?
291-5168-003 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 291-5168-003 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 291-5168-003 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 291-5168-003, subject to availability and destination.
Danfoss SERIES 5 74 PBN STEERING UNIT, manufacturer part number 291-5168-003. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Brand | Danfoss |
| Cylinder Relief Valve Setting | None |
| Design code | 3rd Design |
| Displacement | 73.8 cm3/r [4.50 in3/r] |
| Flow Amplification | None |
| Fluid Type | Reference bulletin 3-401 |
| Identification | DESIGNATED CUSTOMER NO CUSTOMER NUMBER ONNAMEPLATE |
| Inlet or LS relief setting | None |
| Inlet Pressure Rating | 69 BAR [1000 PSI] |
| Input Torque | Low |
| Load Circuit | Non reaction |
| Mechanical Interface | INTERNAL TANG 16 [.630] WIDE |
| Mounting Threads | 3X M8 x 1.25-6H PORT FACE 4X M10 x 1.5-6HMOUNTING FACE |
| Neutral Circuit | Open center with power beyond |
| Nominal Flow Rating | 19 LPM [5.00 GPM] |
| PAINTS & PACKAGING | NO PAINT |
| Product Series | Series 5 Steering Unit |
| Return Pressure Rating | 10 BAR [145 PSI] |
| Special Application Options | None |
| Special Features | None |
| Valve Options | Manual steering check valve |
