Danfoss 291-1131-003

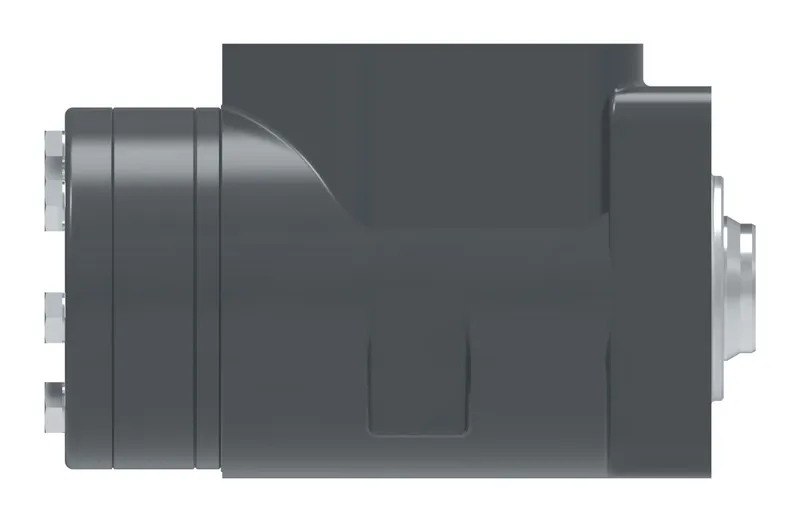

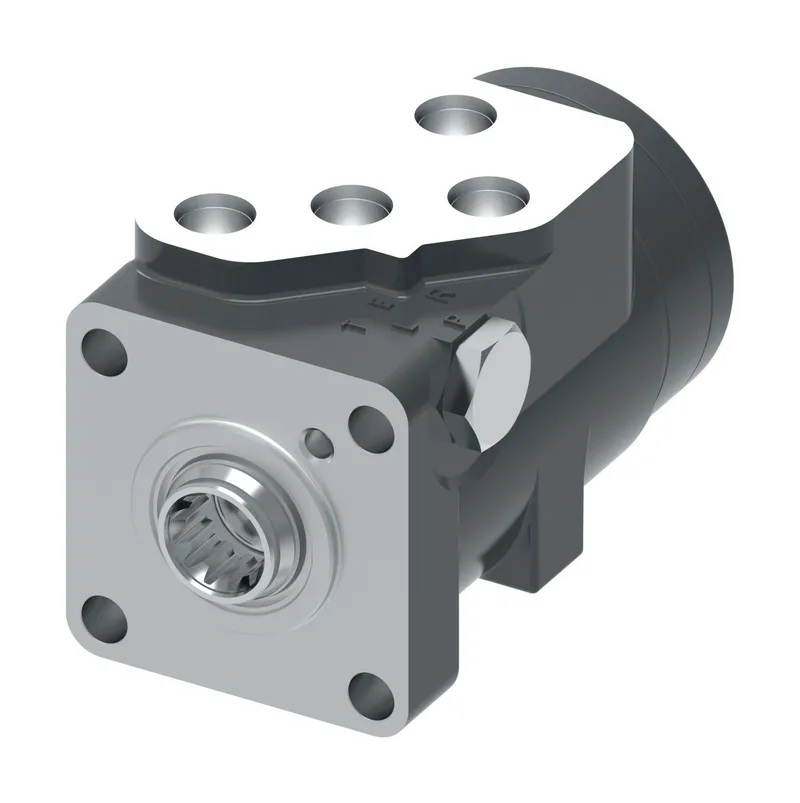

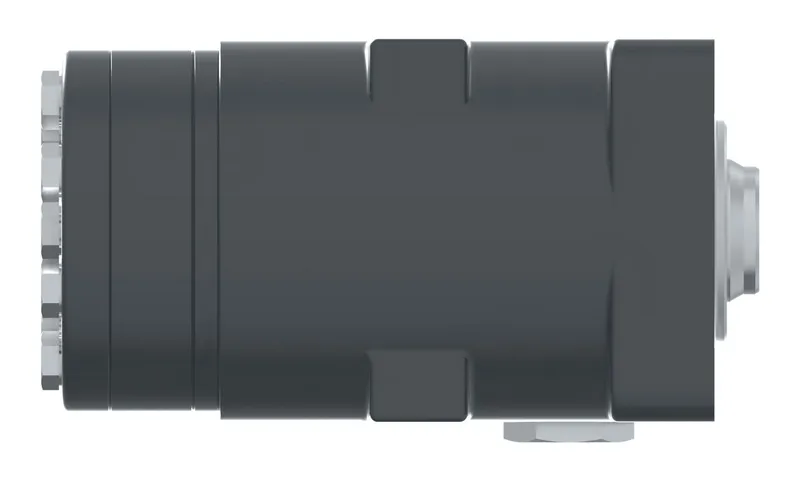

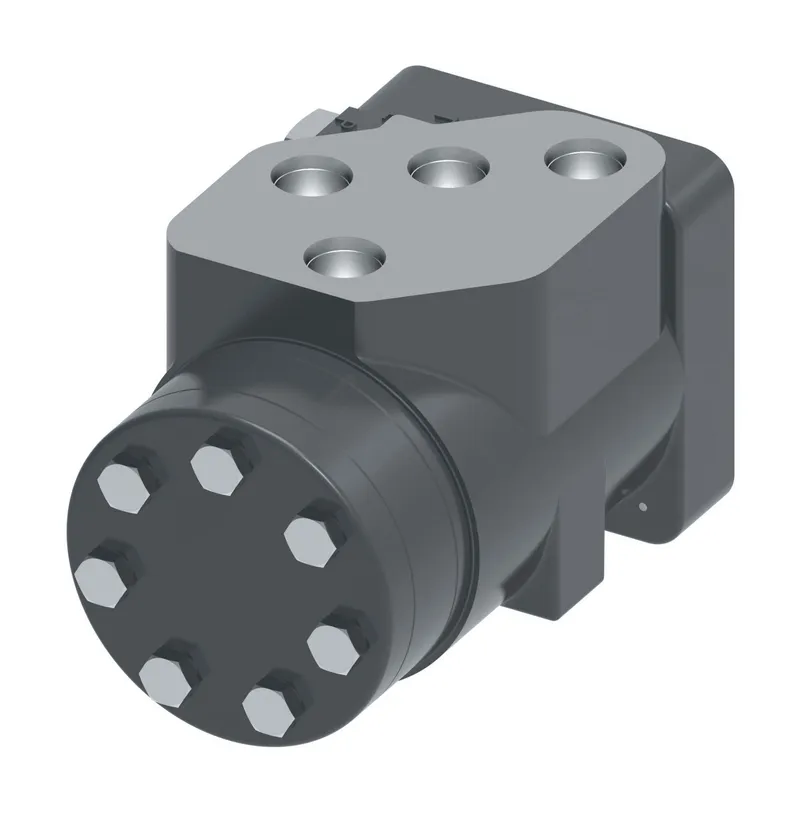

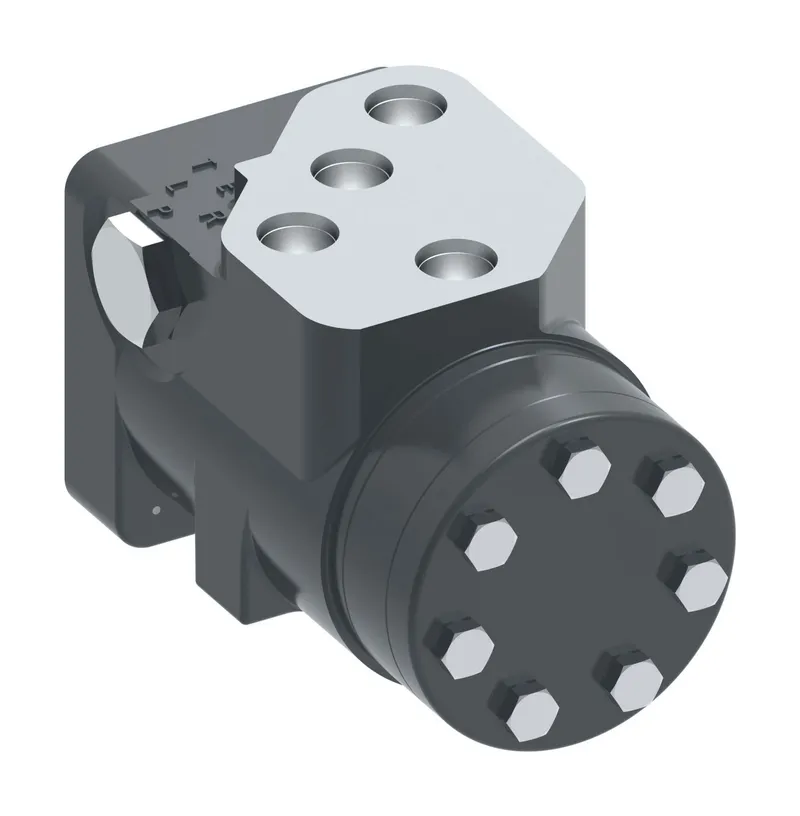

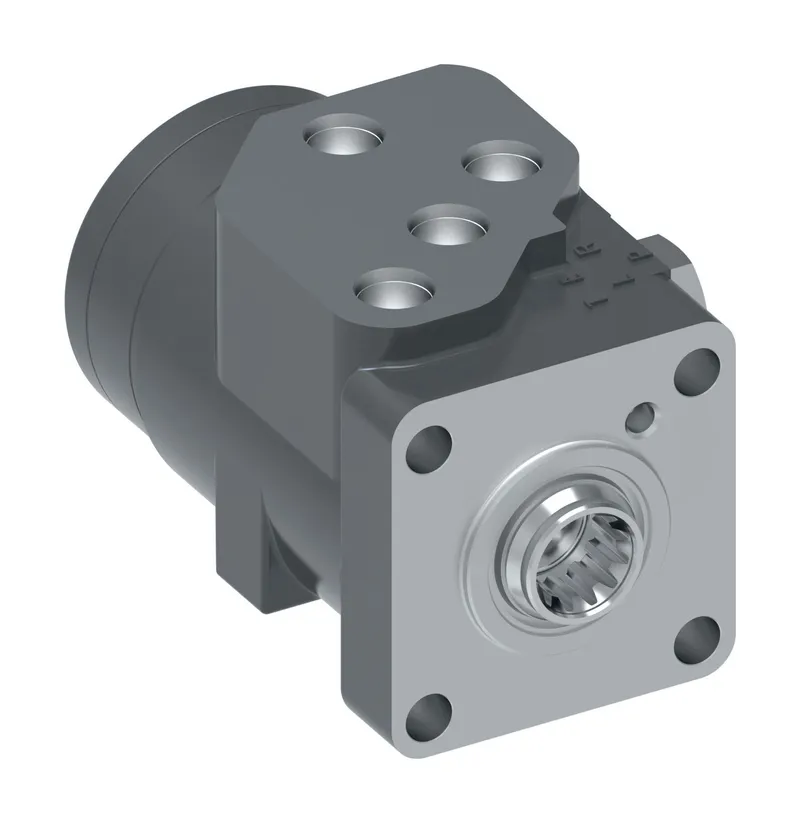

Series 5 100 ON Steering Unit

MPN
291-1131-003
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 291-1131-003?

Danfoss Series 5 100 ON Steering Unit, manufacturer part number 291-1131-003. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Additonal PortsNONE
Cylinder Relief Valve SettingNone
Design code3rd Design
Displacement100 cm3/r [6.10 in3/r]
Flow AmplificationNone
Fluid TypeReference bulletin 3-401
IdentificationEATON PRODUCT NUMBER ON NAMEPLATE
Inlet or LS relief setting80BAR[1160 PSI]
Inlet Pressure Rating140 BAR [2030 PSI]
Input TorqueStandard
Load CircuitNon reaction
Mechanical InterfaceINTERNAL INVOLUTE SPLINE 12 TOOTH 16/32 DP30 DEGREE PA
Mounting ThreadsNONE ON PORT FACE 4X M10 x 1.5-6H ONMOUNTING FACE
Neutral CircuitOpen center
Nominal Flow Rating19 LPM [5.00 GPM]
P,T,L, AND R PORT SIZESIDE PORTED 4X .5625-18 UNF-2B SAE O-RING PORT
PAINTS & PACKAGINGBLACK PAINT
Product SeriesSeries 5 Steering Unit
Return Pressure Rating10 BAR [145 PSI]
Special Application OptionsNone
Special FeaturesNone
Valve OptionsIRV,MSCV
