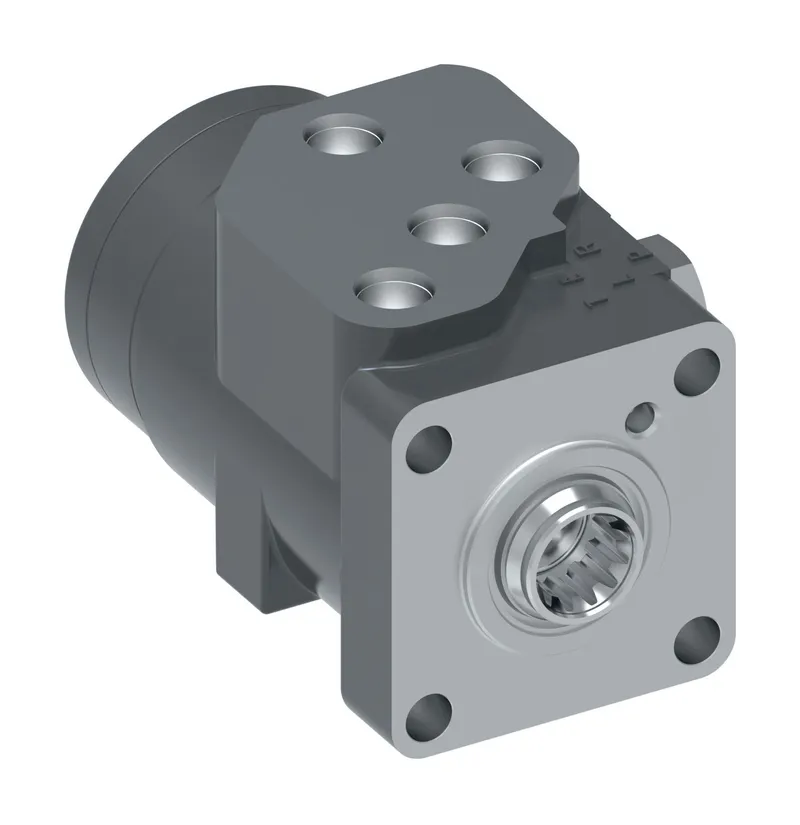

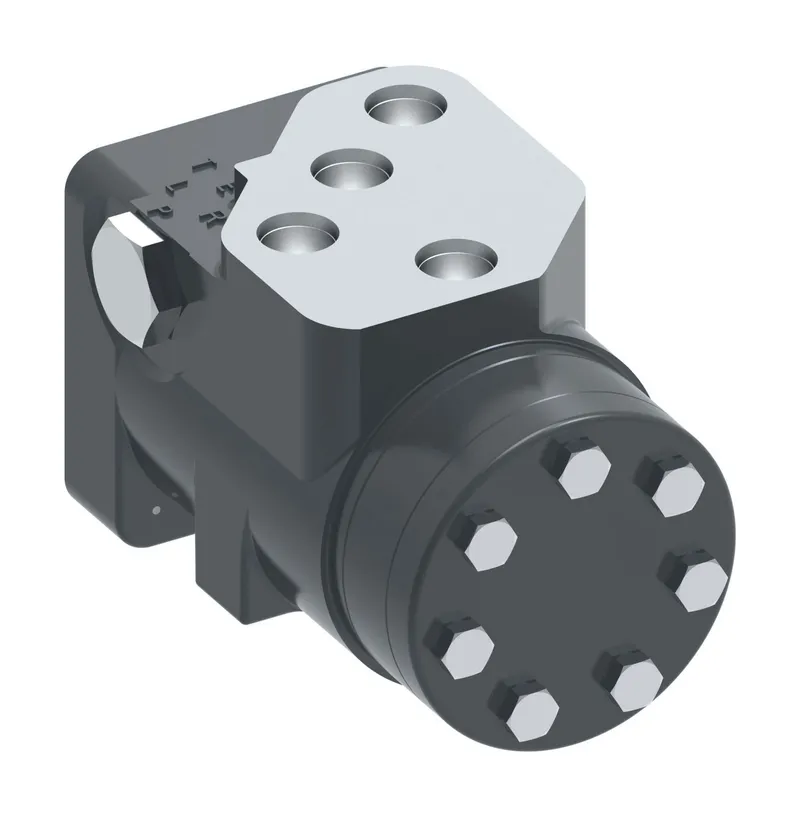

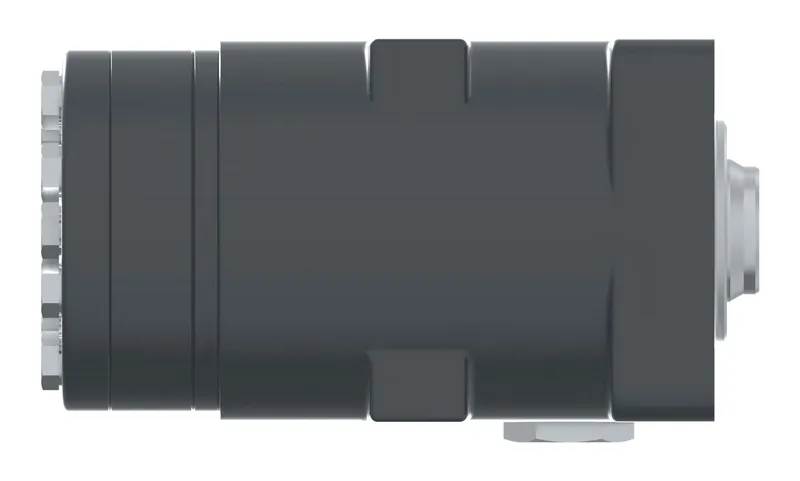

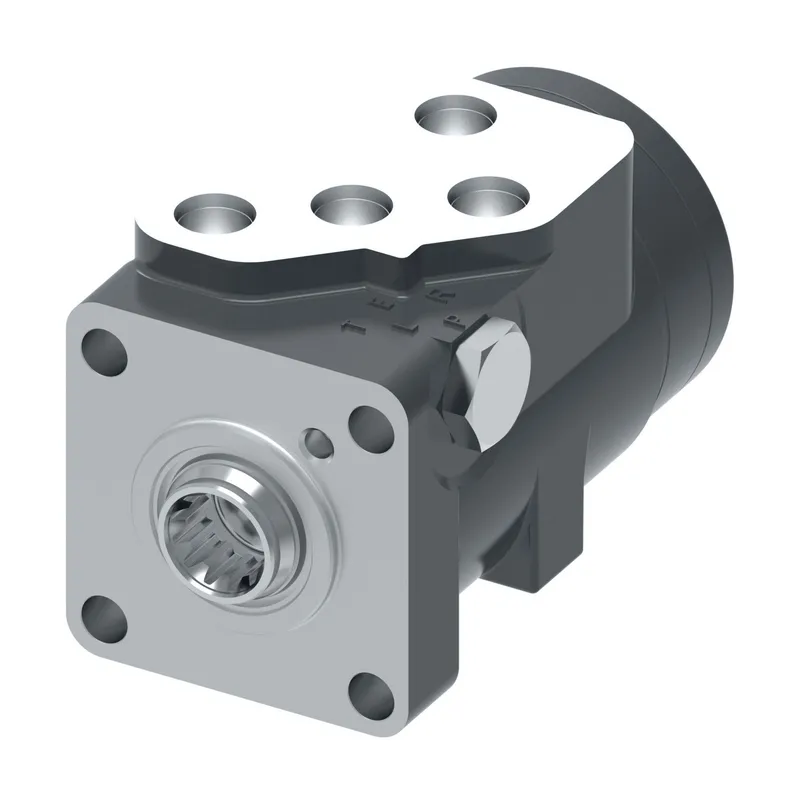

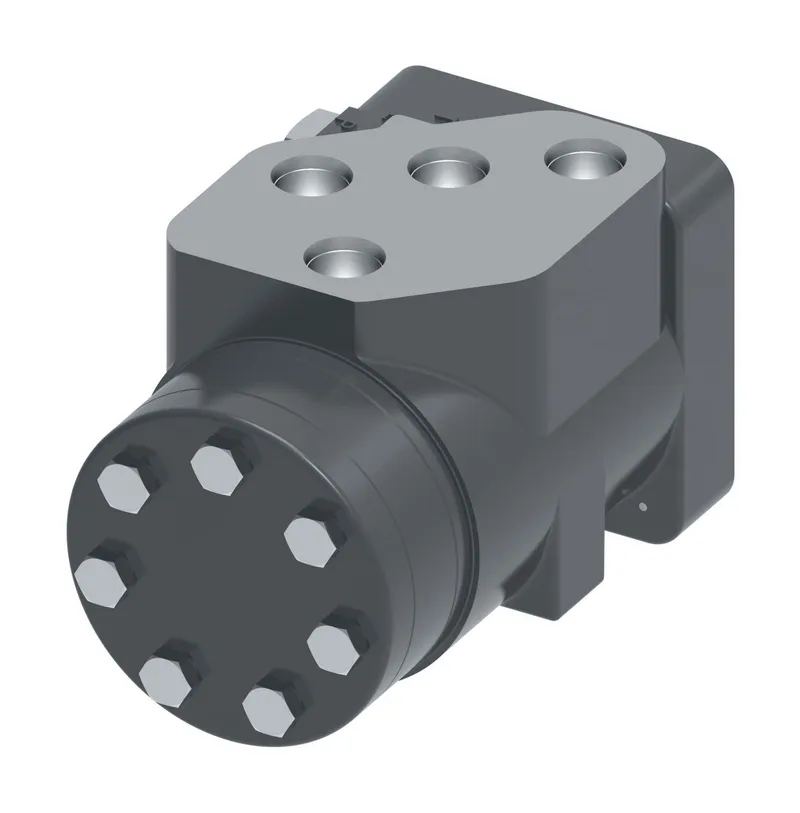

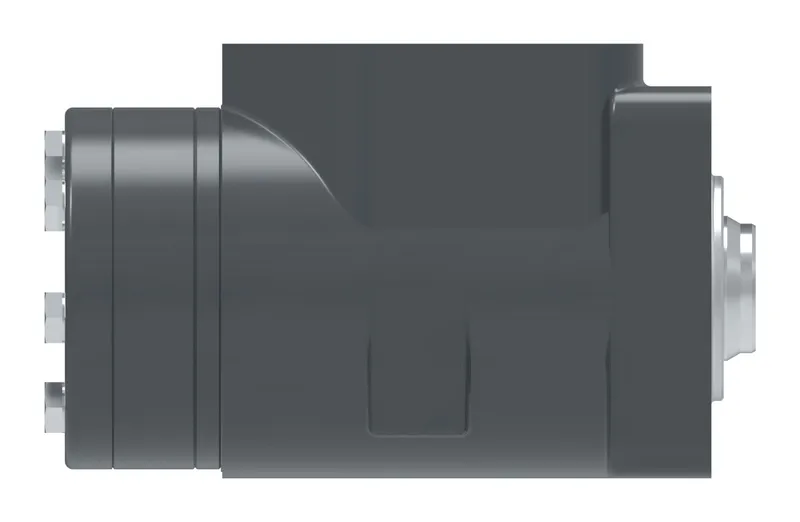

Danfoss 291-1034-003
Series 5 74 ON Steering Unit
- MPN
- 291-1034-003
- Category
- Hydraulic steering units
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Danfoss 291-1034-003?
Danfoss Series 5 74 ON Steering Unit, manufacturer part number 291-1034-003. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Additonal Ports | NONE |
| Cylinder Relief Valve Setting | None |
| Design code | 3rd Design |
| Displacement | 73.8 cm3/r [4.50 in3/r] |
| Flow Amplification | None |
| Fluid Type | Reference bulletin 3-401 |
| Identification | EATON PRODUCT NUMBER ON NAMEPLATE |
| Inlet or LS relief setting | None |
| Inlet Pressure Rating | 140 BAR [2030 PSI] |
| Input Torque | Standard |
| Load Circuit | Non reaction |
| Mechanical Interface | INTERNAL INVOLUTE SPLINE 12 TOOTH 16/32 DP30 DEGREE PA |
| Mounting Threads | NONE ON PORT FACE 4X M10 x 1.5-6H ONMOUNTING FACE |
| Neutral Circuit | Open center |
| Nominal Flow Rating | 19 LPM [5.00 GPM] |
| P,T,L, AND R PORT SIZE | SIDE PORTED 4X .5625-18 UNF-2B SAE O-RING PORT |
| PAINTS & PACKAGING | BLACK PAINT |
| Product Series | Series 5 Steering Unit |
| Return Pressure Rating | 10 BAR [145 PSI] |
| Special Application Options | None |
| Special Features | None |
| Valve Options | Manual steering check valve |
