Danfoss 263418

MPN: 263418
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 263418?

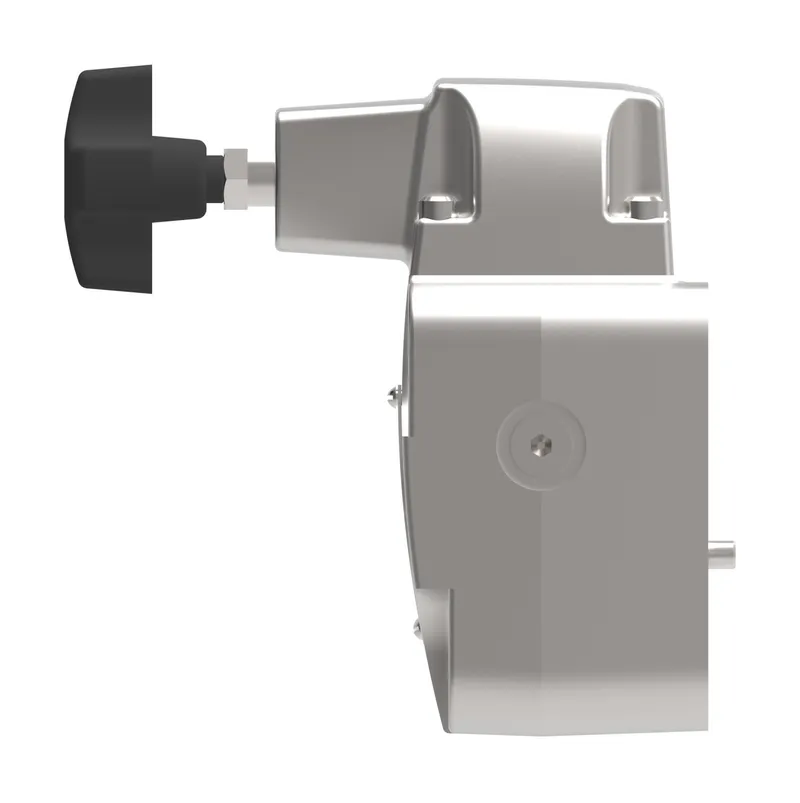

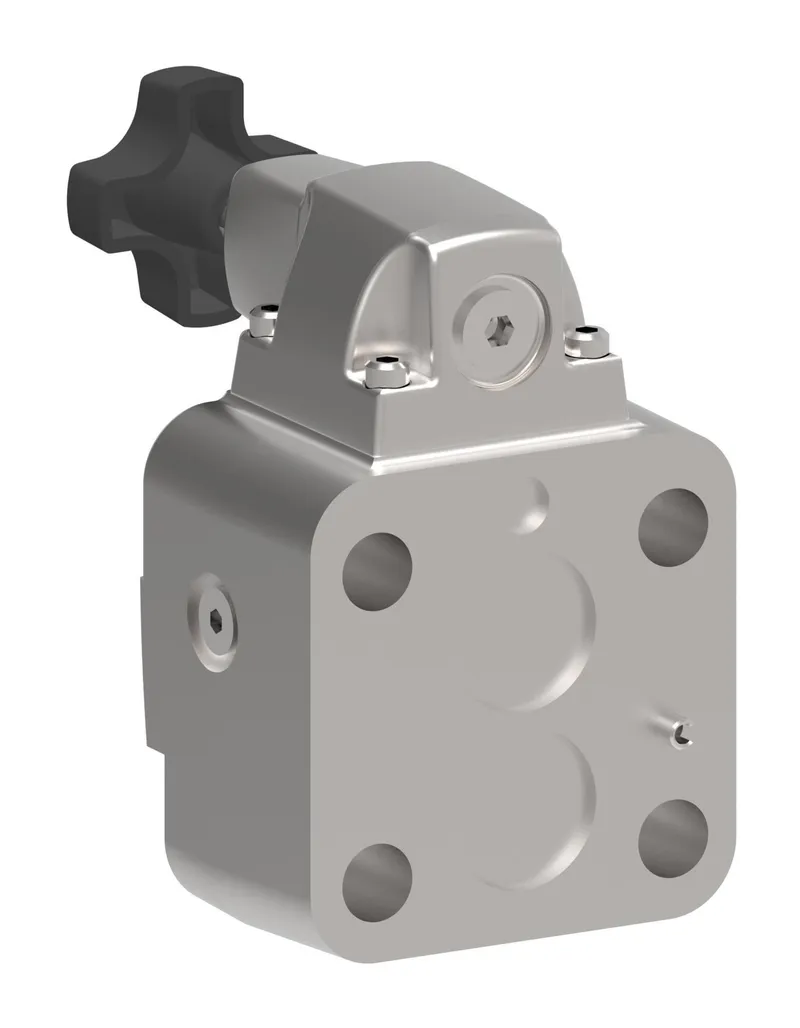

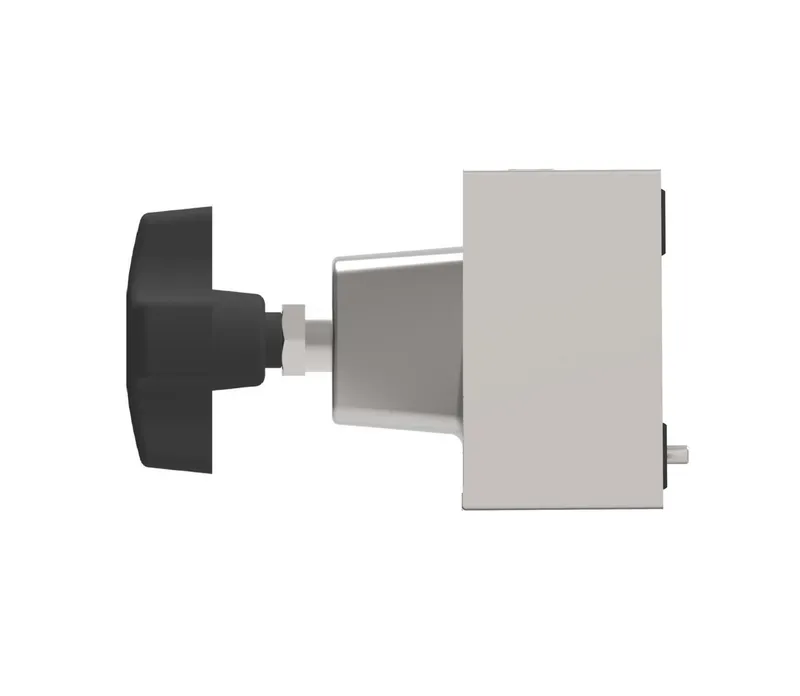

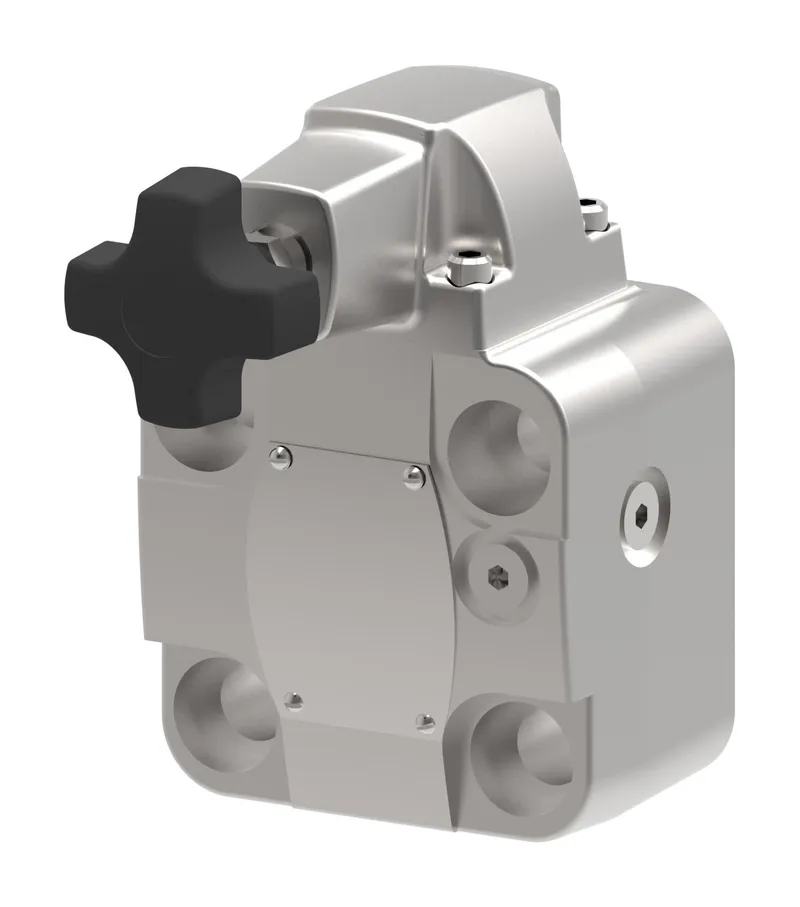

Danfoss F3 CG 03 B 10, F3CG03B10, manufacturer part number 263418. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Direct acting
Adjustment range	5-70 bar (75-1000 psi)
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Design Series	10 Series
Electrical connection	None
Flow rate lpm	30.0
Flow rate USGPM	8.0
Fluid Cleanliness	19/17/14 Micron
Fluid compatibility	Phosphate esters
Hi-vent spring	No
Indicator Light	No
Maximum pressure BAR	207
Maximum pressure PSI	3000
Model Code 1	F3CG03B10
Performance	Standard
Product height in	3.120
Product height mm	79.248
Product length in	6.250
Product length mm	158.750
Product width in	3.190
Product width mm	81.026
Seal material	Fluorocarbon
Size	Size 03
Special feature	None
Stage	Single stage
Tank pressure bar	210
Tank pressure PSI	3000
Valve Mount Type	Subplate/manifold mounted
Valve type	Relief valve
Working temperature max C	70
Working temperature max F	158
Working temperature min C	-20
Working temperature min F	-4

263418: frequently asked questions

When can 263418 be shipped?

263418 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 263418 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 263418 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 263418, subject to availability and destination.
