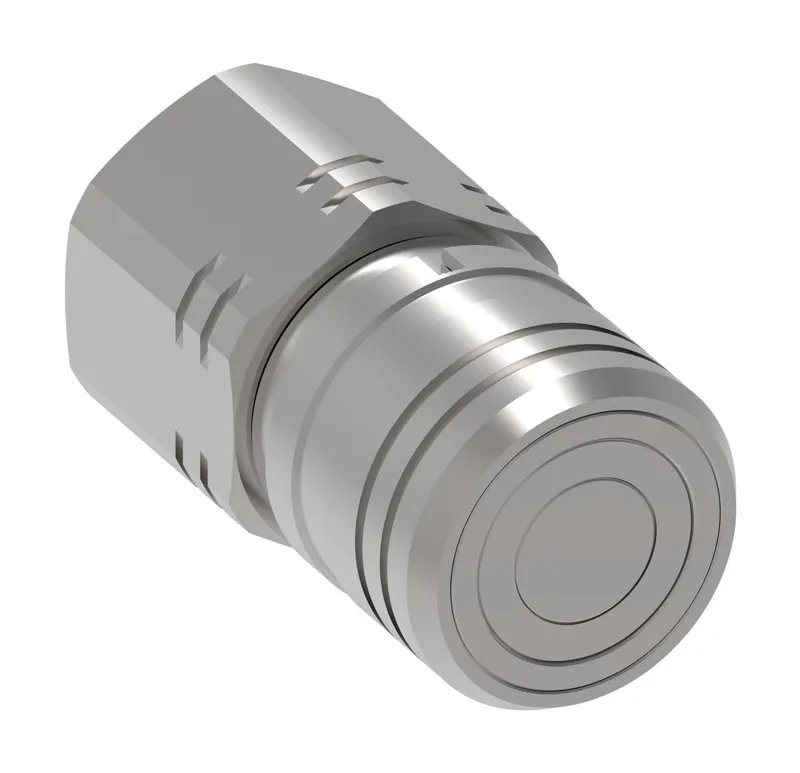

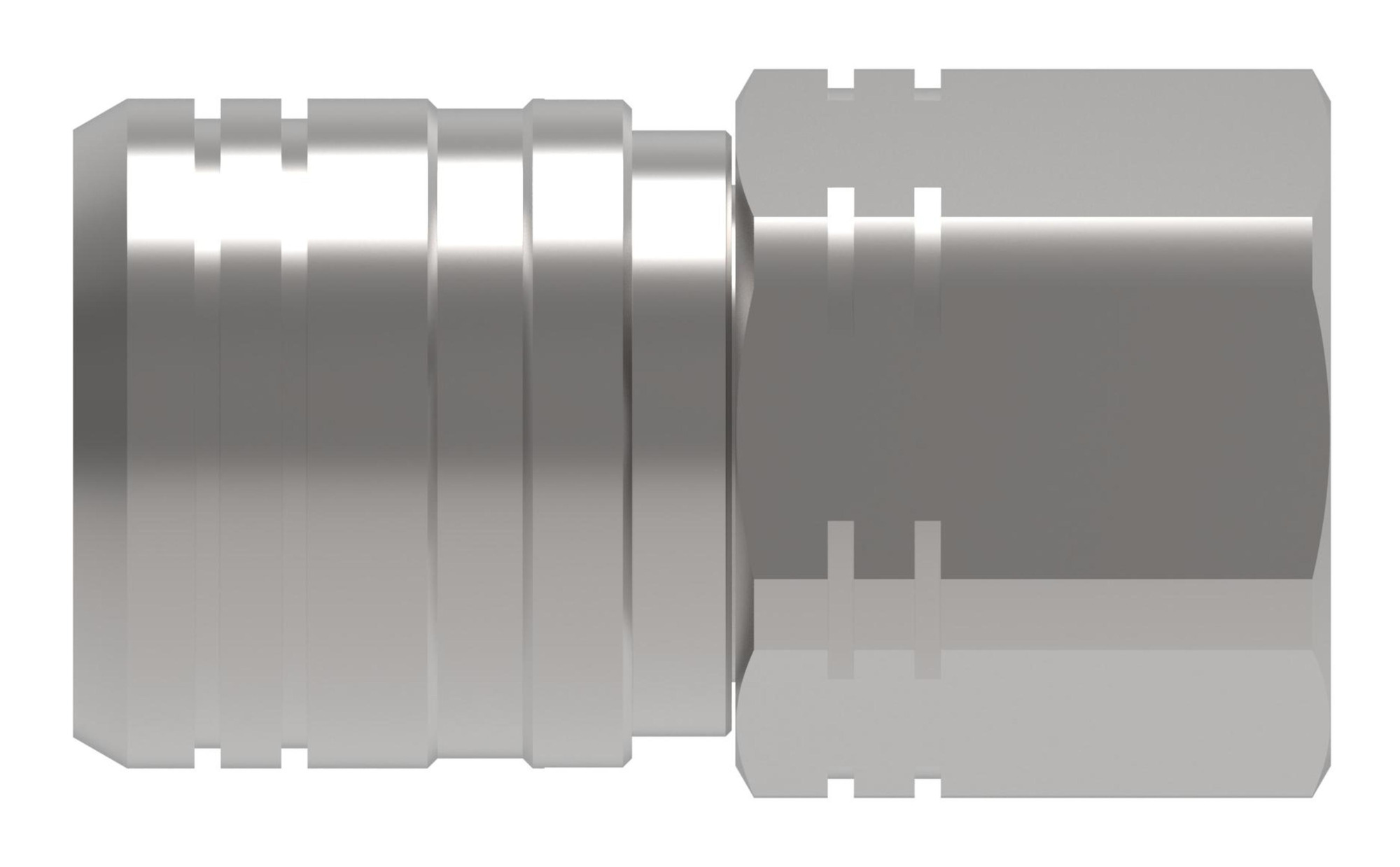

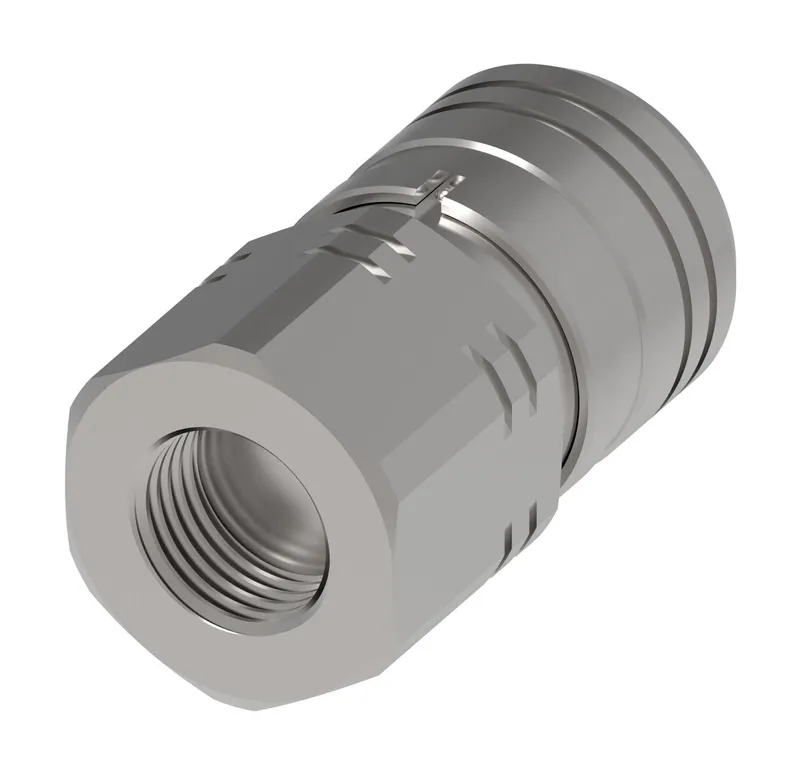

Danfoss 25FFS131UN

COUPLING,FF,F,1",CS,-12UNF,NBR

MPN: 25FFS131UN
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 25FFS131UN?

Danfoss COUPLING,FF,F,1",CS,-12UNF,NBR, manufacturer part number 25FFS131UN. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	813688024547
Air inclusion max cc	0.03
Angle shape	Straight
Application	Agriculture, Building material, Commercial vehicles, Fluid transfer, Hydraulics, Road vehicles
Body size	1"
Brand	Danfoss
Burst pressure min psi	18270
Certifications	ISO 16028
Compliances	PED 2014/68 EU Article 4.3, REACH, RoHS Compliant
Connection style	Manual connect
End size 1	-12
End type 1	Female ORB port ISO 11926-1
Finish plating	Guardian sealtm
Flow rate GPM	48.60
Fluid compatibility	Hydraulic fluid
Fluid loss cc	0.03200
Hex size 1 IN	2.170
Item type	Female half
Latch type	Push to connect
Product material	Carbon steel
Safety locking mechanism	Sleeve lock
Seal material	Nitrile(NBR)+Polyurethane(AU)
Sub brand	Hansen
Thread size 1	1 1/16-12 UN
Torque lbs-ft	58.50
Valve type	2 way
Working pressure max psi	5800
Working temperature max F	212
Working temperature min F	-13
