Danfoss 2580-128

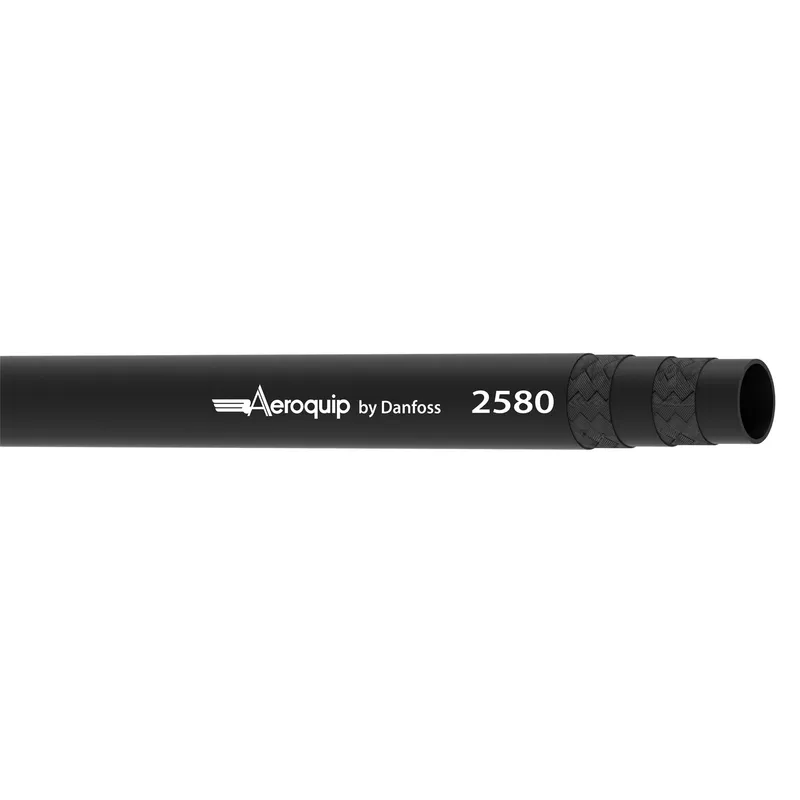

Hose Marine CEX ITEM MIL-H-24136/1
- MPN
- 2580-128
- Category
- Marine and military
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 2580-128?
Danfoss Hose Marine CEX ITEM MIL-H-24136/1, manufacturer part number 2580-128. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146075857 |
| Abrasion resistance | Standard |
| Application | Fresh and salt water systems, Fuel oil, Gasoline |
| Bend radius min (inch) | 8.050 |
| Bend radius min (mm) | 204.470 |
| Brand | Aeroquip by Danfoss |
| Burst pressure (bar) | 83 |
| Burst pressure (psi) | 1200 |
| Certifications | MIL-H-24136/3 |
| Color | Black |
| Conductivity | Conductive |
| Construction | 2 Ply braid |
| Cover material | Chloroprene (CR) |
| Inside diameter (inch) | 8.94 |
| Inside diameter (mm) | 227.08 |
| Matr grp for sales restriction | Country Excluded Products |
| Outside diameter (inch) | 8.94 |
| Outside diameter (mm) | 227.08 |
| Package form | Bulk |
| Qualified hose fittings | Reusable |
| Reinforcement material | Fabric |
| Series | 2580 Series |
| Size | -128 |
| Tube material | Nitrile (NBR) |
| Tube wall thickness (inch) | 0.47 |
| Tube wall thickness (mm) | 11.94 |
| Working pressure max (bar) | 21 |
| Working pressure max (psi) | 300 |
| Working temperature max (C) | 100 |
| Working temperature max (F) | 212.0 |
| Working temperature min (C) | -40 |
| Working temperature min (F) | -40.0 |
2580-128: frequently asked questions
When can 2580-128 be shipped?
2580-128 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 2580-128 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 2580-128 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2580-128, subject to availability and destination.
