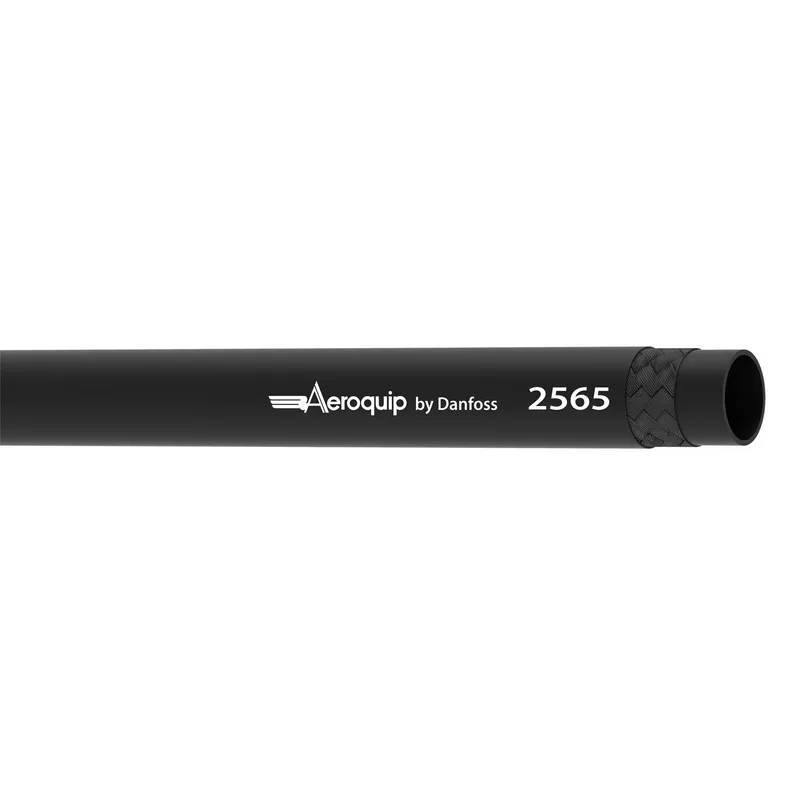

Hose Sckless CEX ITEM MIL-DTL-13444 TyI
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Marine and military |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 2565-4 be shipped?
2565-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 2565-4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 2565-4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2565-4, subject to availability and destination.
Danfoss Hose Sckless CEX ITEM MIL-DTL-13444 TyI, manufacturer part number 2565-4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146071842 |
| Abrasion resistance | Standard |
| Application | Air, Crude oil, Gasoline, Lubricating oils, Water |
| Bend radius min (inch) | 2.250 |
| Bend radius min (mm) | 57.150 |
| Burst pressure (bar) | 86 |
| Burst pressure (psi) | 1250 |
| Certifications | MIL-DTL-13444 Type 1, Class A |
| Color | Black |
| Compliances | SAE 30R2 Type 1 |
| Conditional temp range | Air not to exceed 71C, Water not to exceed 66C |
| Conductivity | Conductive |
| Construction | 1 Ply braid |
| Cover material | Chloroprene (CR) |
| Inside diameter (inch) | 0.25 |
| Inside diameter (mm) | 6.35 |
| Lay line style | Ink jet |
| Matr grp for sales restriction | Country Excluded Products |
| Outside diameter (inch) | 0.50 |
| Outside diameter (mm) | 12.70 |
| Package form | Bulk |
| Qualified hose fittings | Reusable |
| Reinforcement material | Fabric |
| Series | 2565 Series |
| Size | -4 |
| Tube material | Nitrile (NBR) |
| Tube wall thickness (inch) | 0.25 |
| Tube wall thickness (mm) | 6.35 |
| Vacuum rating (inHg) | 20 |
| Vacuum rating (mmHg) | 508.00 |
| Working pressure max (bar) | 21 |
| Working pressure max (psi) | 300 |
| Working temperature max (C) | 121 |
| Working temperature max (F) | 250.0 |
| Working temperature min (C) | -54 |
| Working temperature min (F) | -65.0 |
