Danfoss 25534-LAM

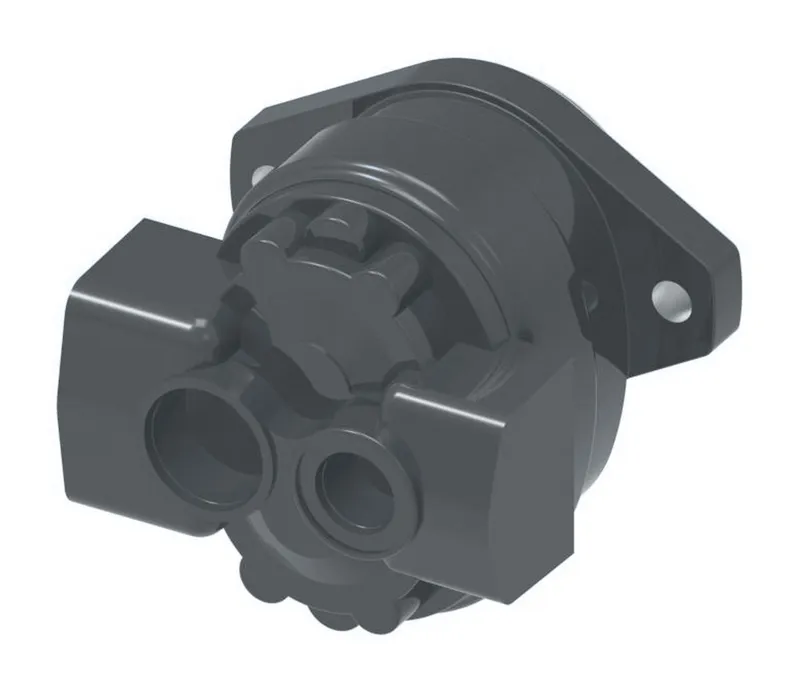

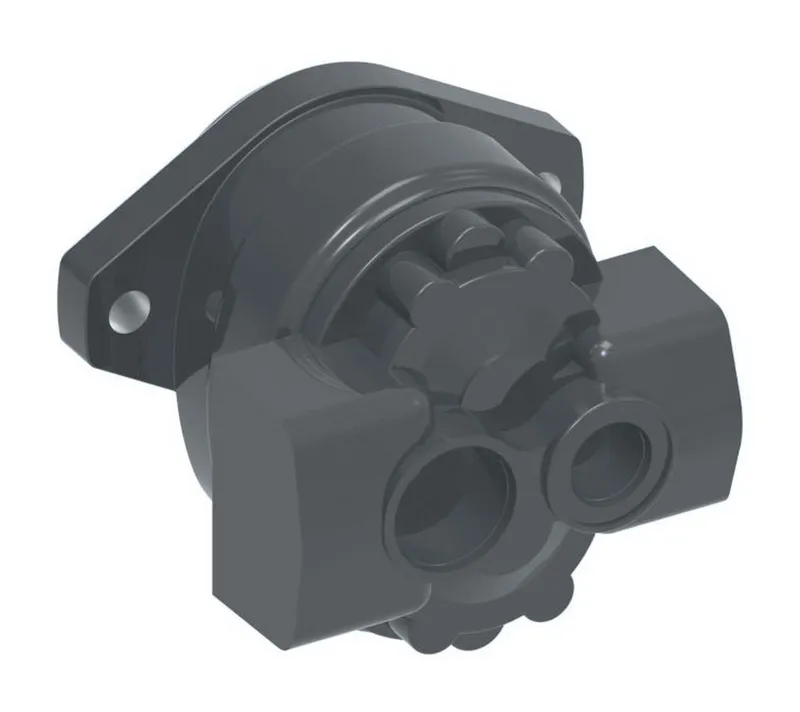

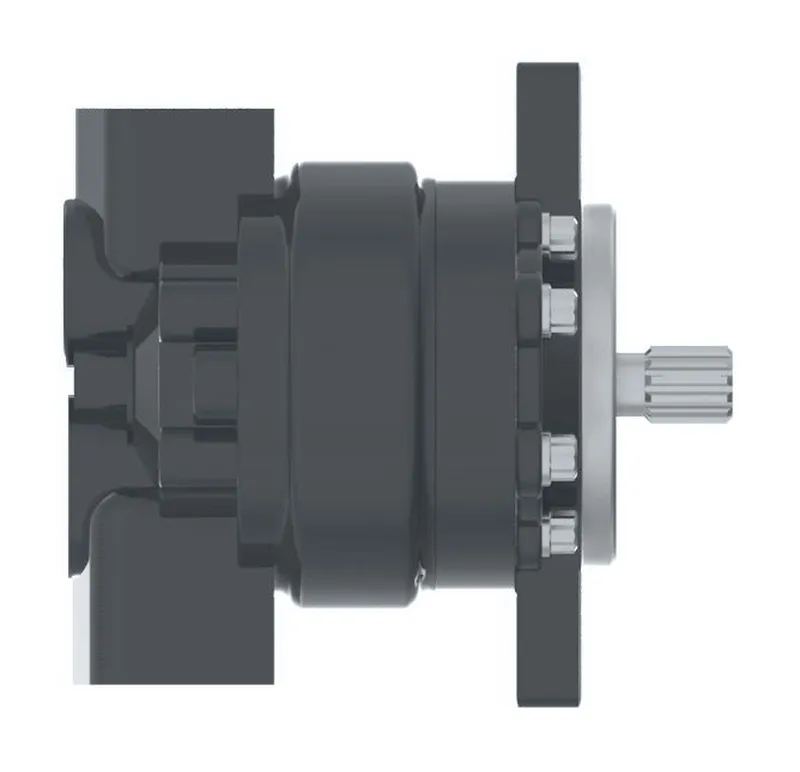

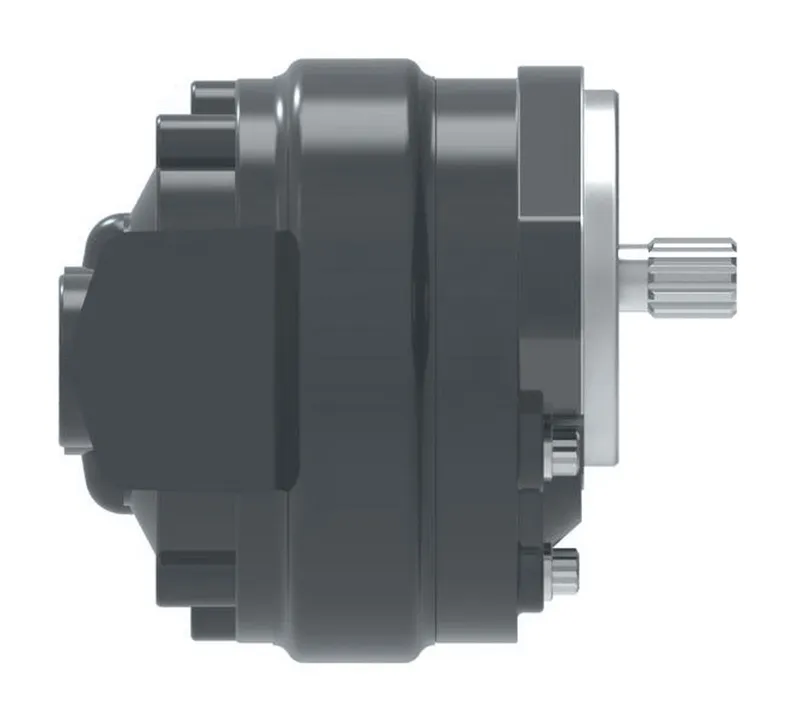

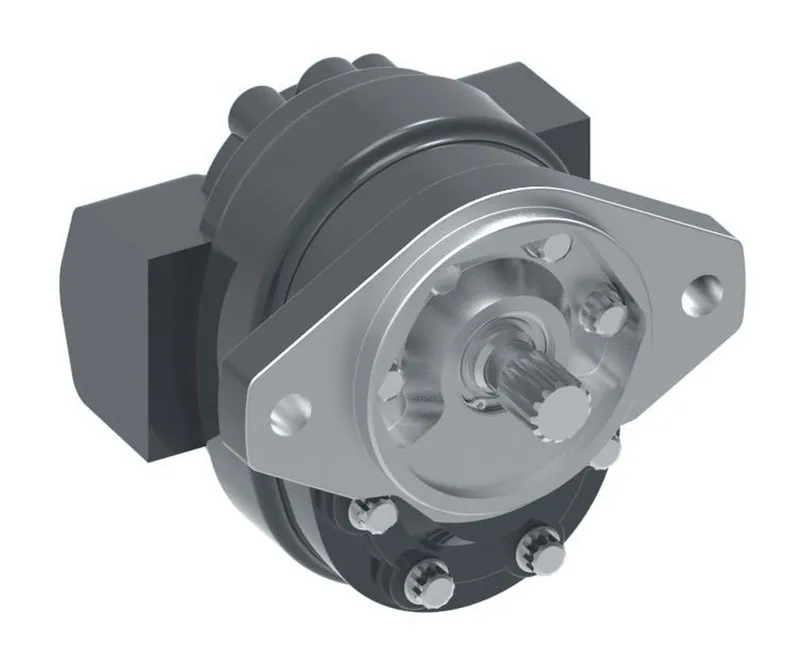

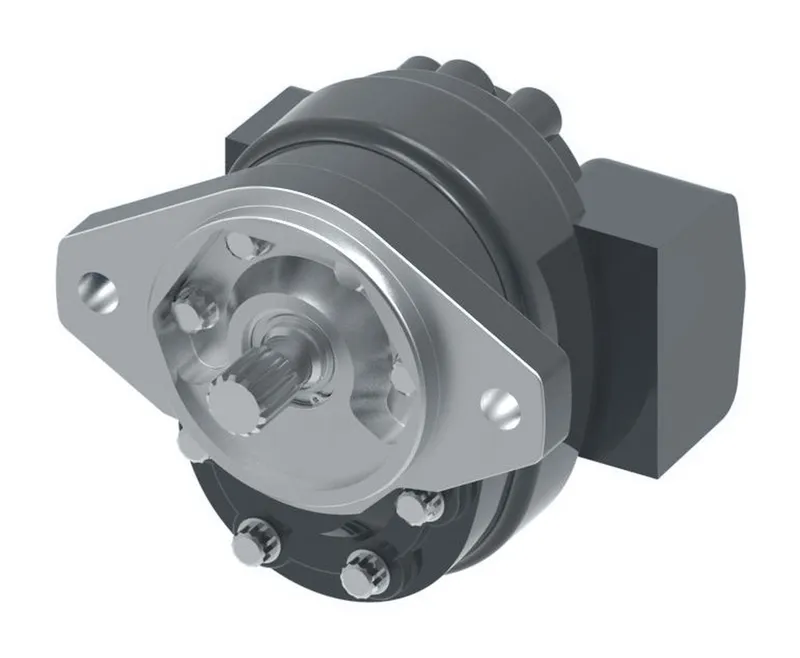

GEAR PUMP ASSY

MPN: 25534-LAM
Category: Rugid aluminum gear pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 25534-LAM?

Danfoss GEAR PUMP ASSY, manufacturer part number 25534-LAM. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Danfoss
Design code	A
Displacement	38.2 cm3/r [2.33 in3/r]
Identification	Standard
Input shaft	13 tooth 16/32 spline, min full spline 22.2 [.88], shaft ext 41.1[1.62]
Paint	Primer per spec 209-13a
Ports and location	P 1 5/8-12r 1 7/8-14r
Priority flow divider setting	15.1 l/min [ 4.0 gal/min]
Product	L2 gear pump (single unit)
Rear mounting	No auxiliary mounting features
Relief valve full flow setting	103.4 bar [1500 lbf/in2]
Rotation	Left-hand rotation (ccw)
Special features	Unit specific
Unit type	Flow divider
