Home / Danfoss (Drives) / Rugid aluminum gear pumps / Danfoss 25508-RAG

Danfoss (Drives)

Danfoss 25508-RAG

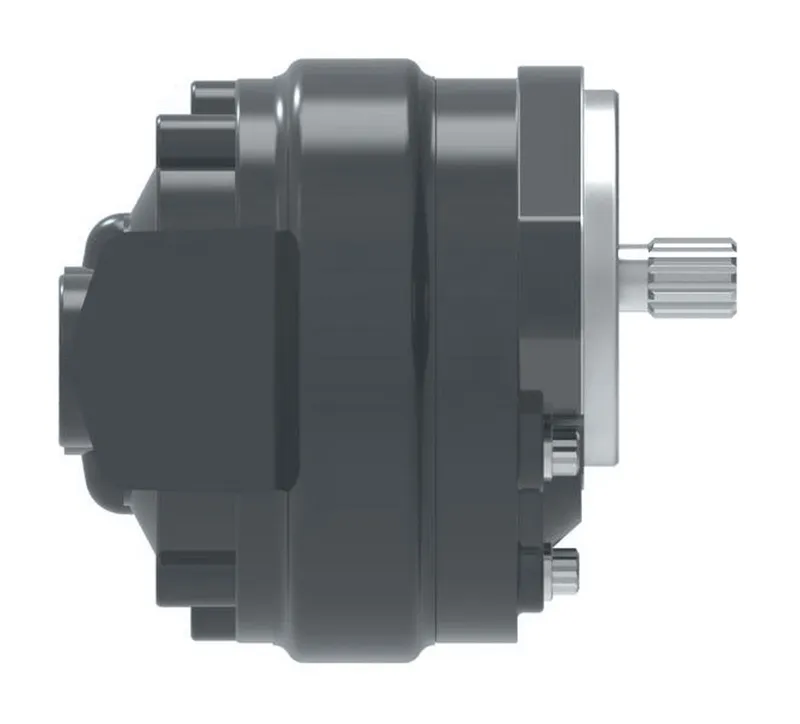

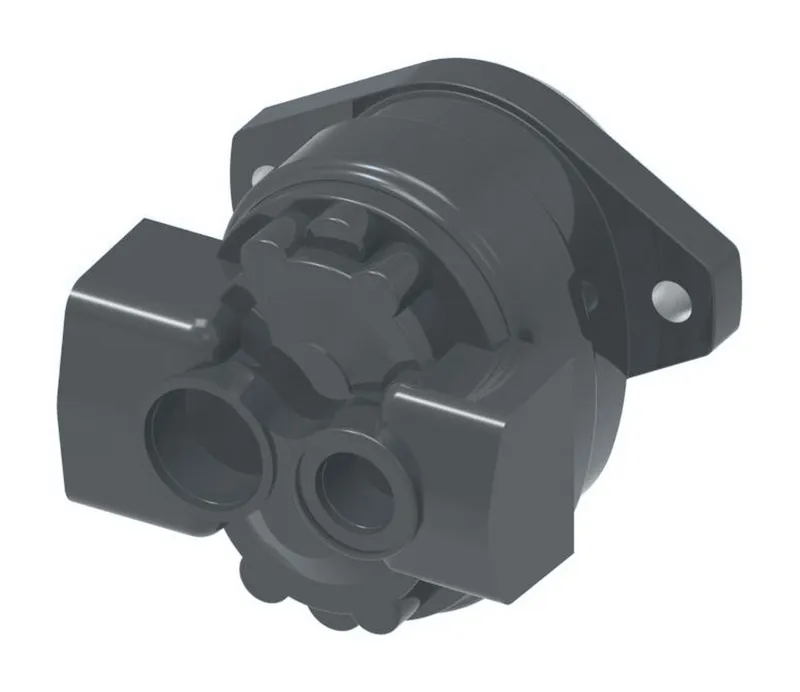

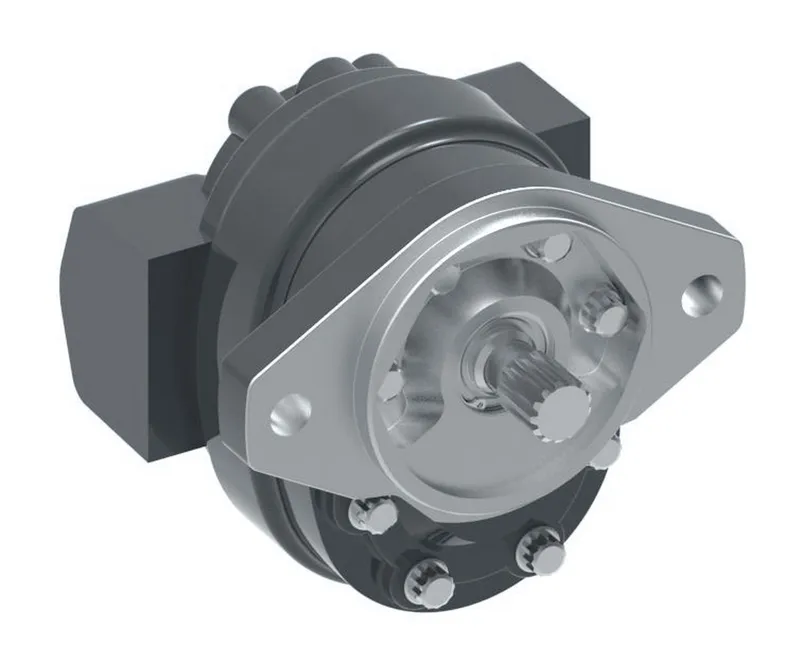

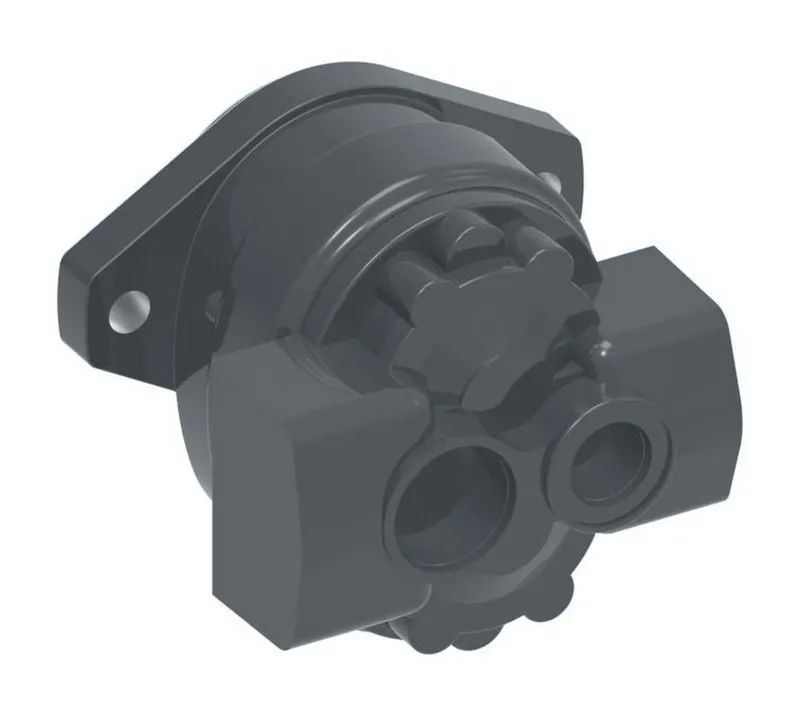

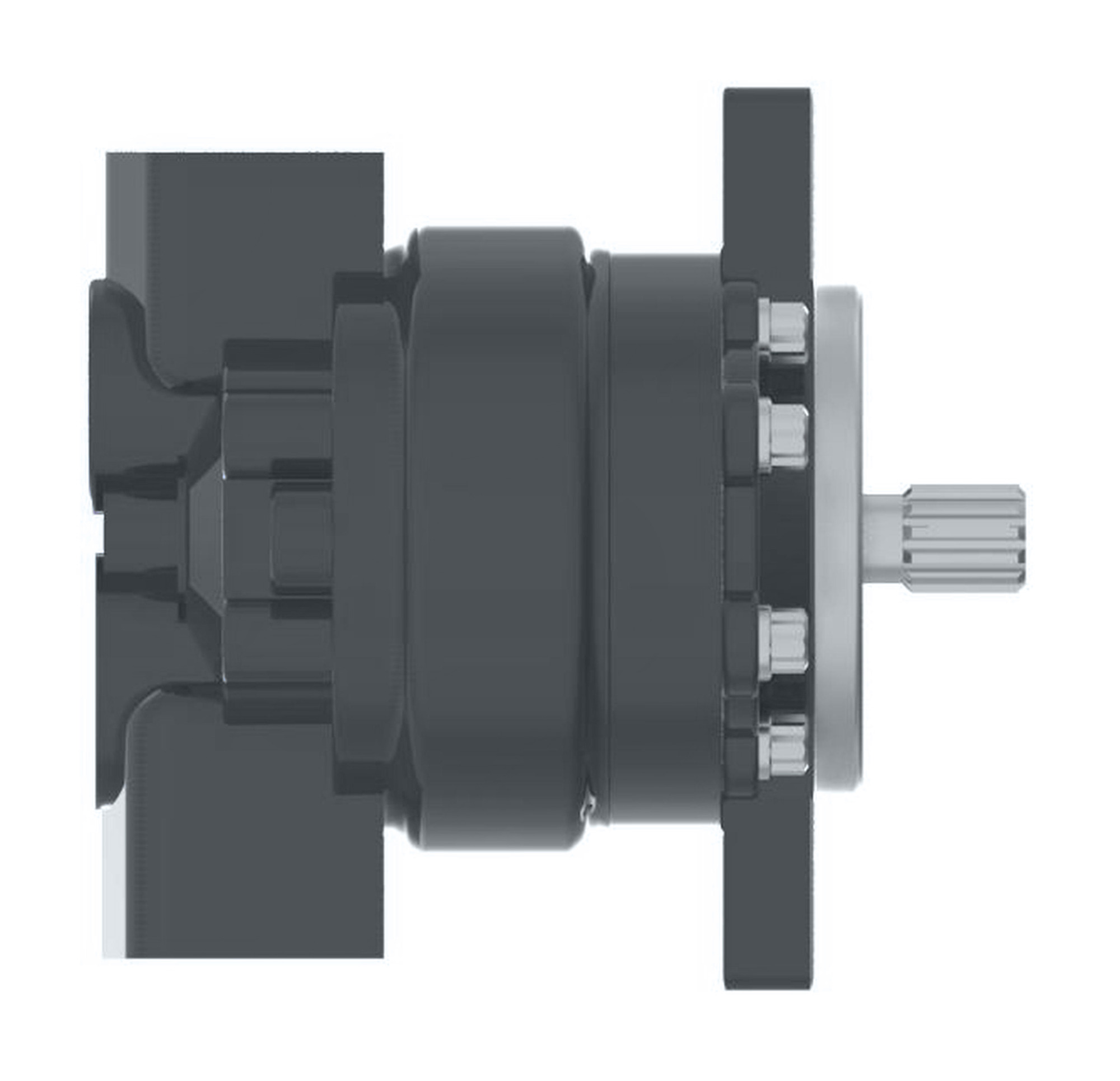

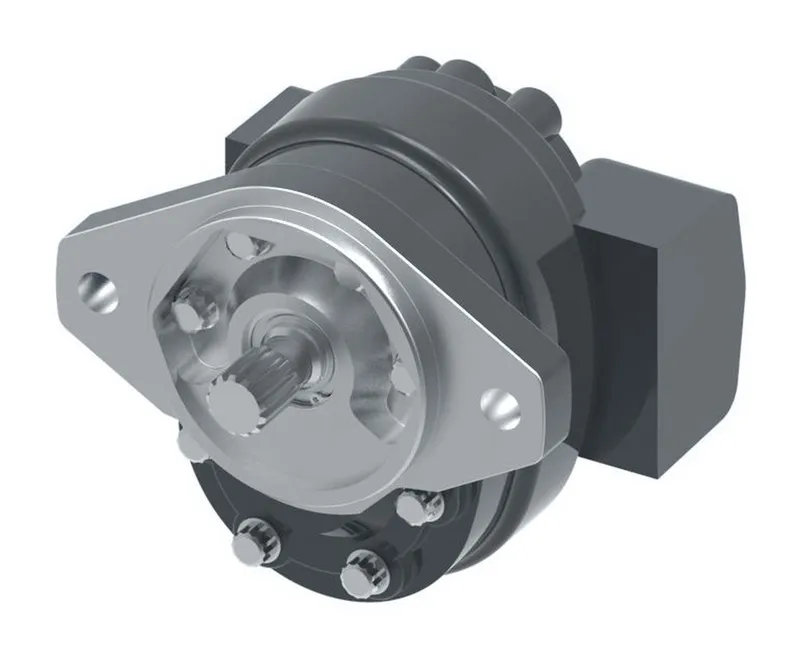

GR PUMP (L2-CASE)

MPN: 25508-RAG
Category: Rugid aluminum gear pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 25508-RAG?

Danfoss GR PUMP (L2-CASE), manufacturer part number 25508-RAG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Danfoss
Design code	A
Displacement	55.2 cm3/r [3.37 in3/r]
Identification	None
Input shaft	41 tooth 48/96 spline, min full spline 12.9 [.51], shaft ext 24.9 [.98]
Paint	Black per spec 209-13ca
Ports and location	Plain: suction port 1.625-12 UN-2b SAE o-ring port; pressure port 1.0625-12 UN-2b SAE o-ring port - side ports
Priority flow divider setting	No flow setting
Product	L2 gear pump (single unit)
Rear mounting	No auxiliary mounting features
Relief valve full flow setting	No relief valve setting
Rotation	Right-hand rotation (cw)
Special features	Unit specific
Unit type	Plain

25508-RAG: frequently asked questions

When can 25508-RAG be shipped?

25508-RAG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 25508-RAG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 25508-RAG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 25508-RAG, subject to availability and destination.
