Danfoss 25505-LAM

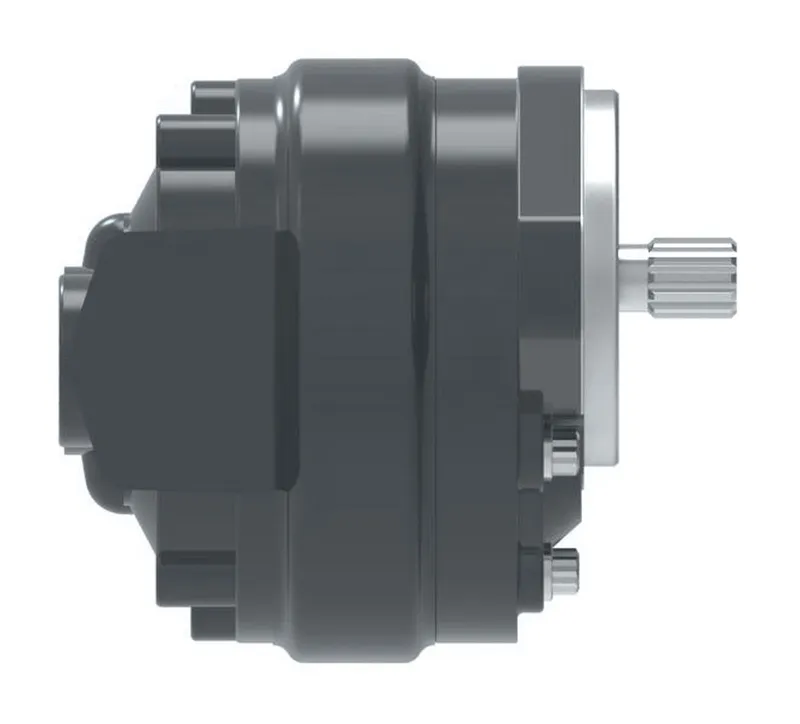

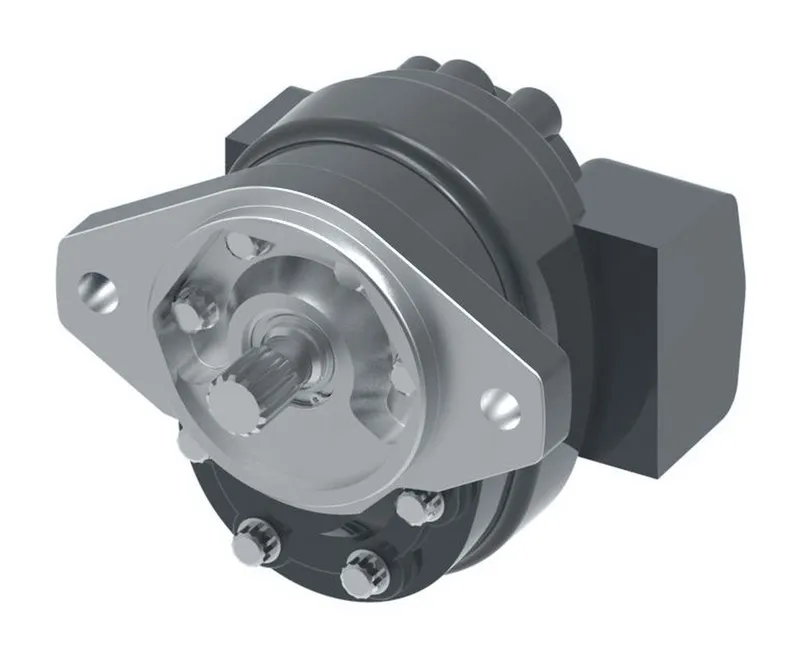

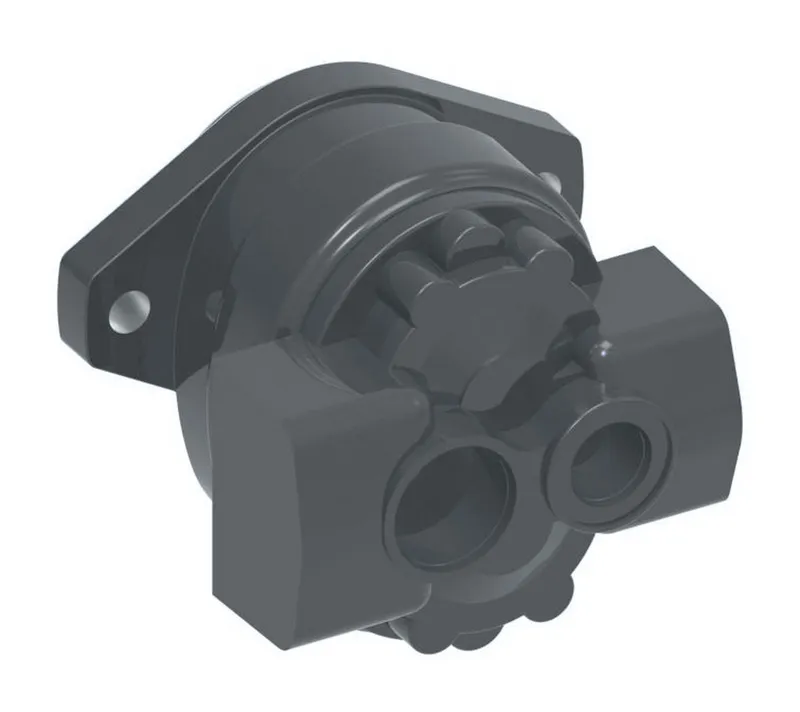

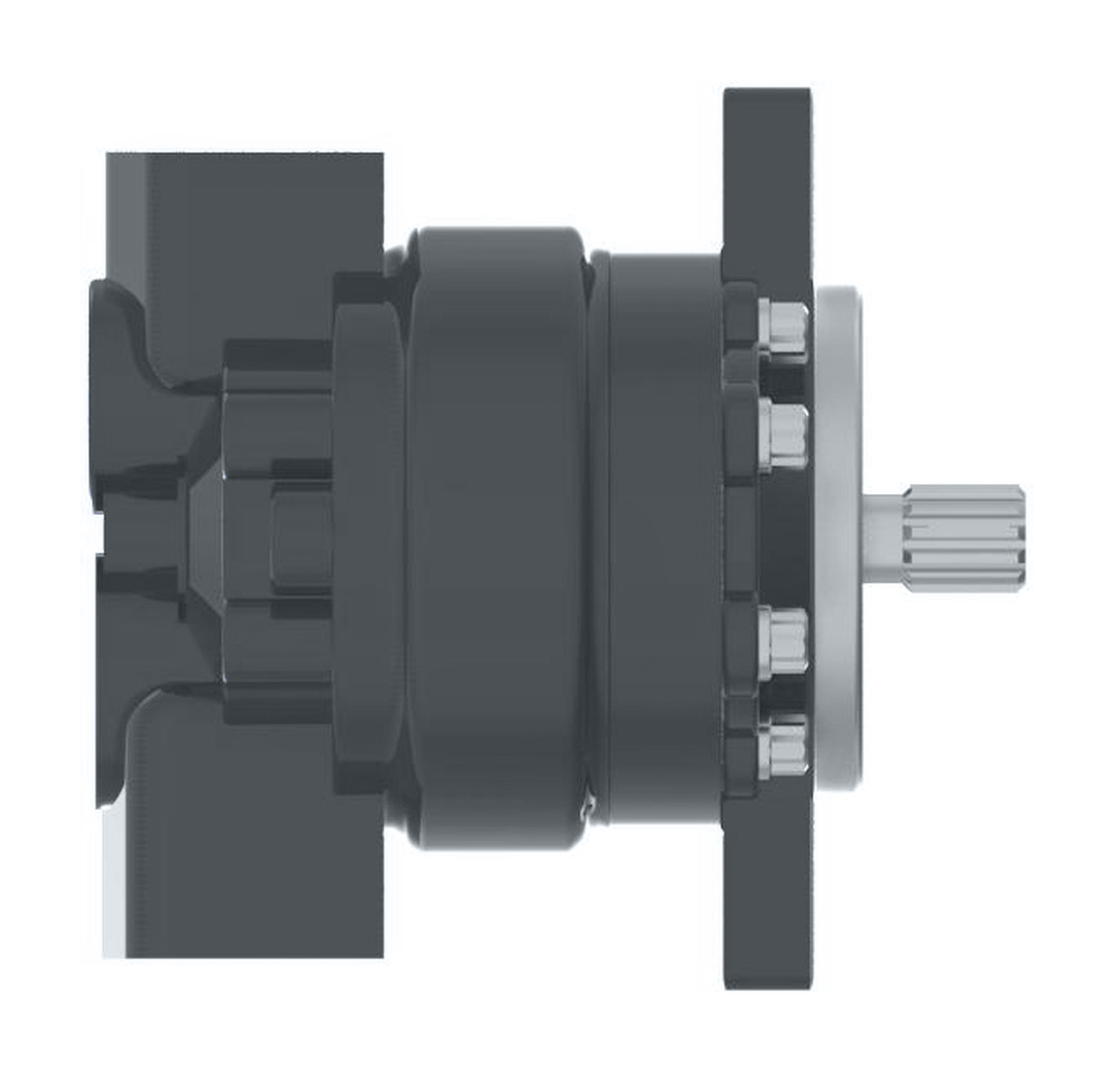

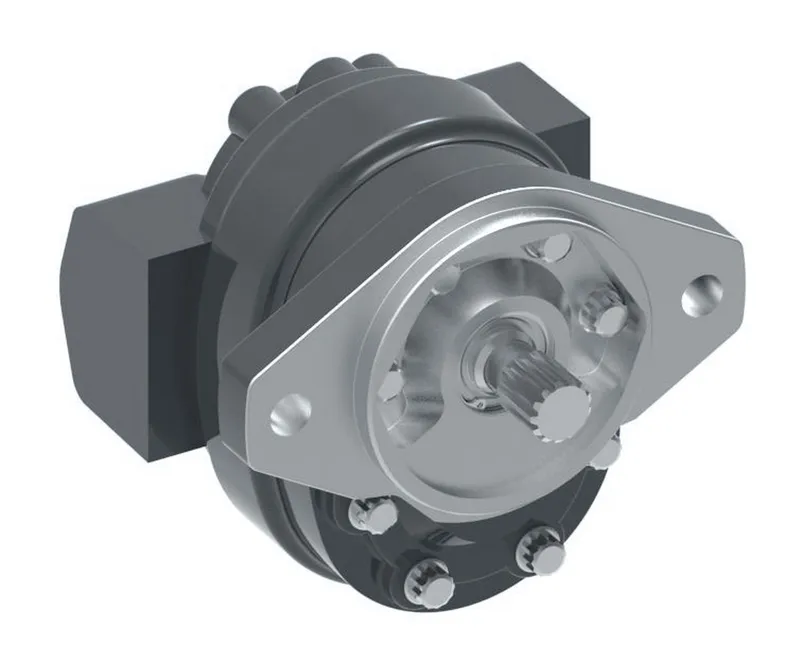

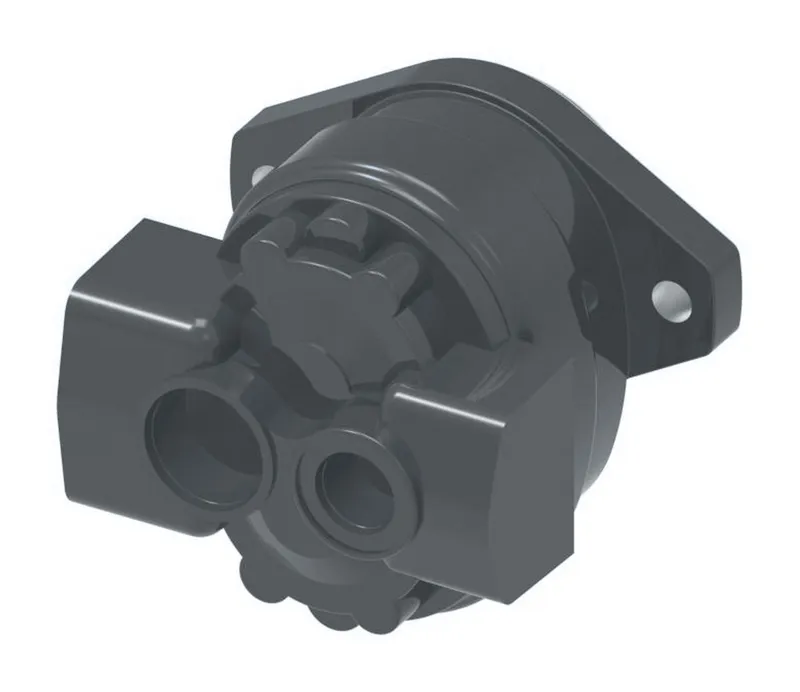

GR PUMP (L2)
- MPN
- 25505-LAM
- Category
- Rugid aluminum gear pumps
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 25505-LAM?
Danfoss GR PUMP (L2), manufacturer part number 25505-LAM. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Brand | Danfoss |
| Design code | A |
| Displacement | 42.8 cm3/r [2.61 in3/r] |
| Identification | Standard |
| Input shaft | 13 tooth 16/32 spline, min full spline 22.2 [.88], shaft ext 41.1[1.62] |
| Paint | Black per spec 209-13aq |
| Ports and location | Plain: suction port 1.625-12 UN-2b SAE o-ring port; pressure port 1.0625-12 UN-2b SAE o-ring port - side ports |
| Priority flow divider setting | No flow setting |
| Product | L2 gear pump (single unit) |
| Rear mounting | No auxiliary mounting features |
| Relief valve full flow setting | No relief valve setting |
| Rotation | Left-hand rotation (ccw) |
| Special features | Generic |
| Unit type | Plain |
