Danfoss 24291-16-12H56TZF

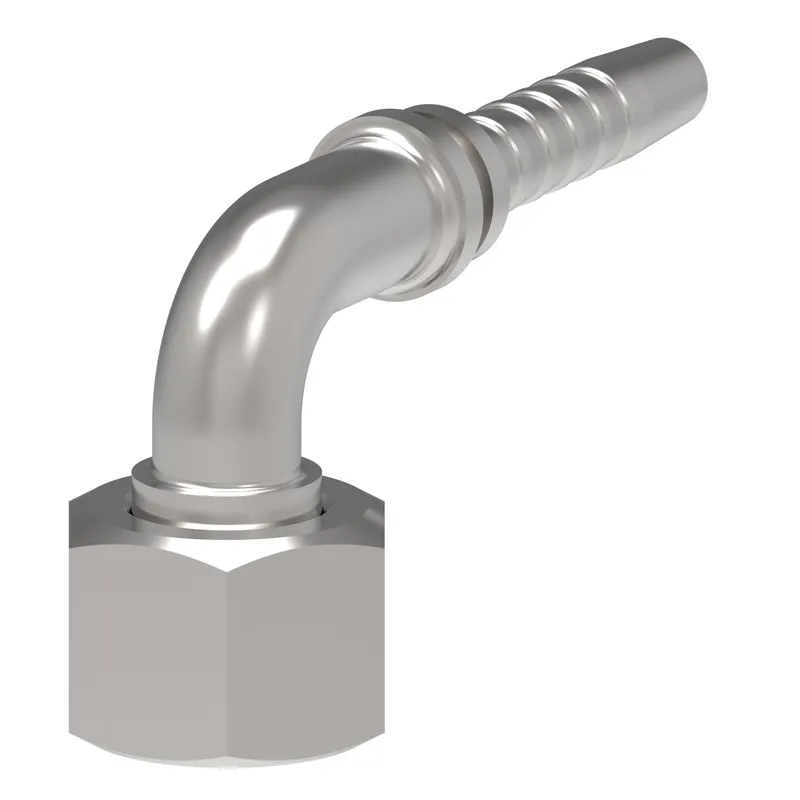

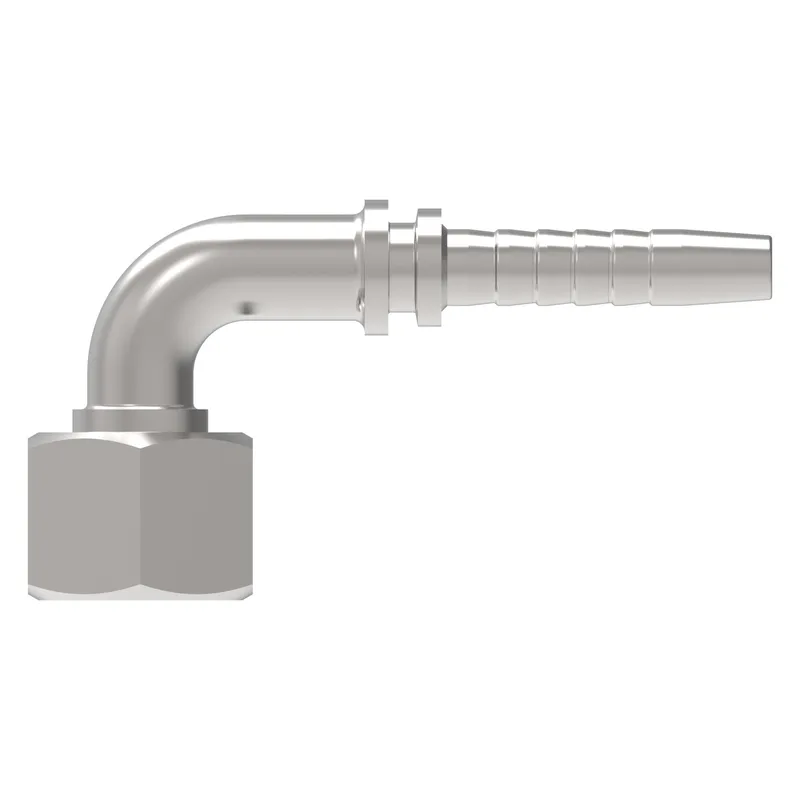

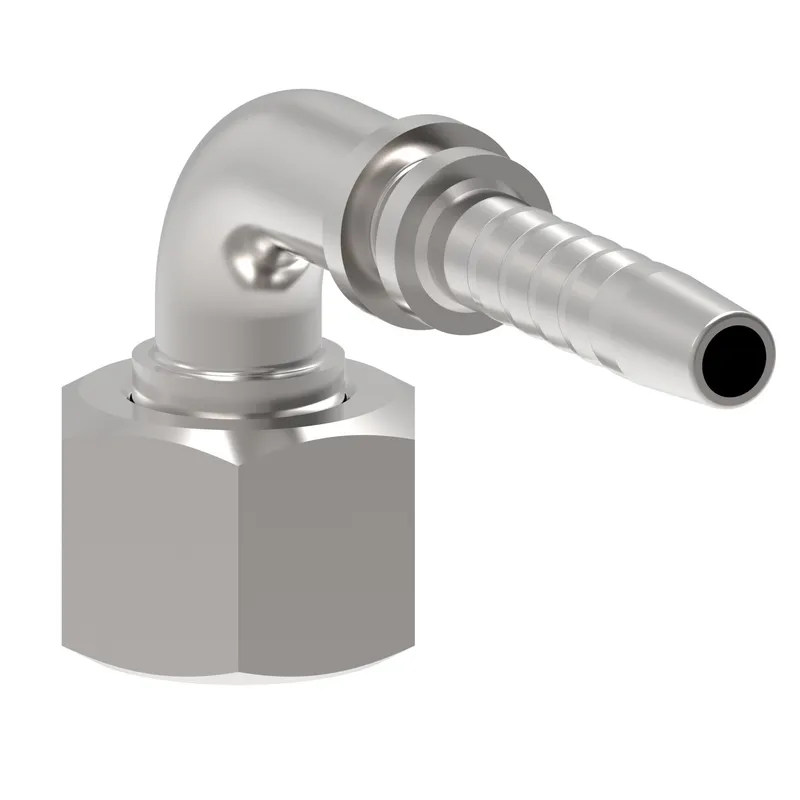

HOSE NIPPLE ASSY,2P/12,ORS-F/16,CS,90D

MPN
24291-16-12H56TZF
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24291-16-12H56TZF?

Danfoss HOSE NIPPLE ASSY,2P/12,ORS-F/16,CS,90D, manufacturer part number 24291-16-12H56TZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146192349
A dimension IN4.090
A dimension MM104.000
Angle shape90 Degree
Compatible hose ID IN0.750
Compatible hose ID MM19.050
Compatible hoses EC110, EC115, EC210, EC215
Construction StyleCrimp
Drop dimension IN2.200
Drop dimension MM56.00
End size 1-16
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN1.614
Hex size 1 MM41.000
Hose cut off factor IN2.580
Hose cut off factor MM65.500
Hose size-12
Inside diameter IN0.590
Inside diameter MM14.000
Product height in2.992
Product height mm75.999
Product length in4.095
Product length mm104.000
Product materialCarbon steel
Product width in1.614
Product width mm41.001
Thread sealantNo
Thread size 11 7/16-12 UN
Working pressure max BAR414
Working pressure max PSI6000

24291-16-12H56TZF: frequently asked questions

When can 24291-16-12H56TZF be shipped?

24291-16-12H56TZF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 24291-16-12H56TZF in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 24291-16-12H56TZF and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 24291-16-12H56TZF, subject to availability and destination.
