Danfoss 24291-12-12H100Z

HOSE NIPPLE, 2P/12, ORS-F/12, CS, 90D

MPN
24291-12-12H100Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

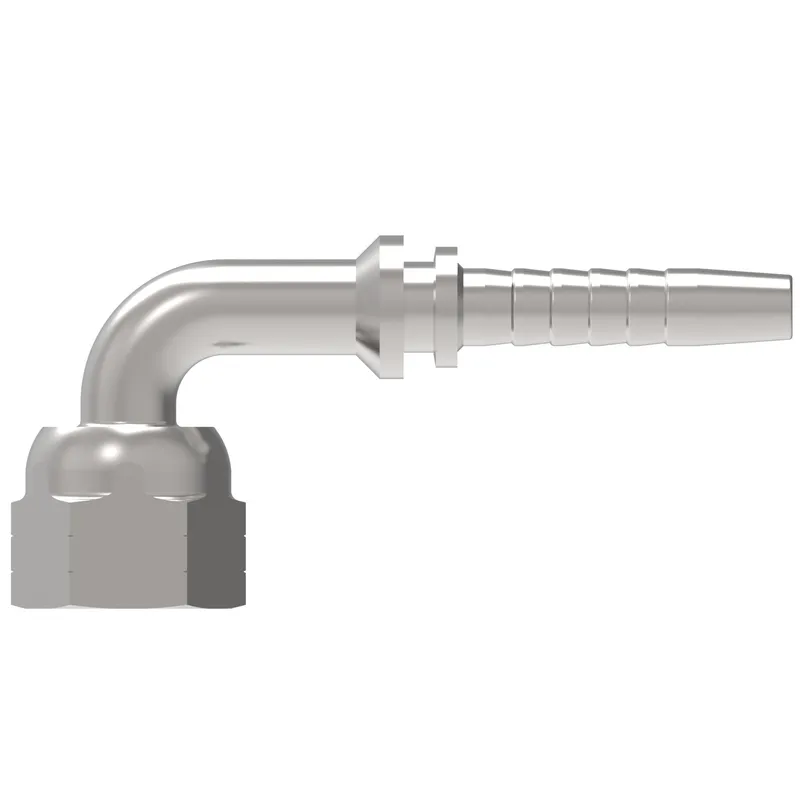

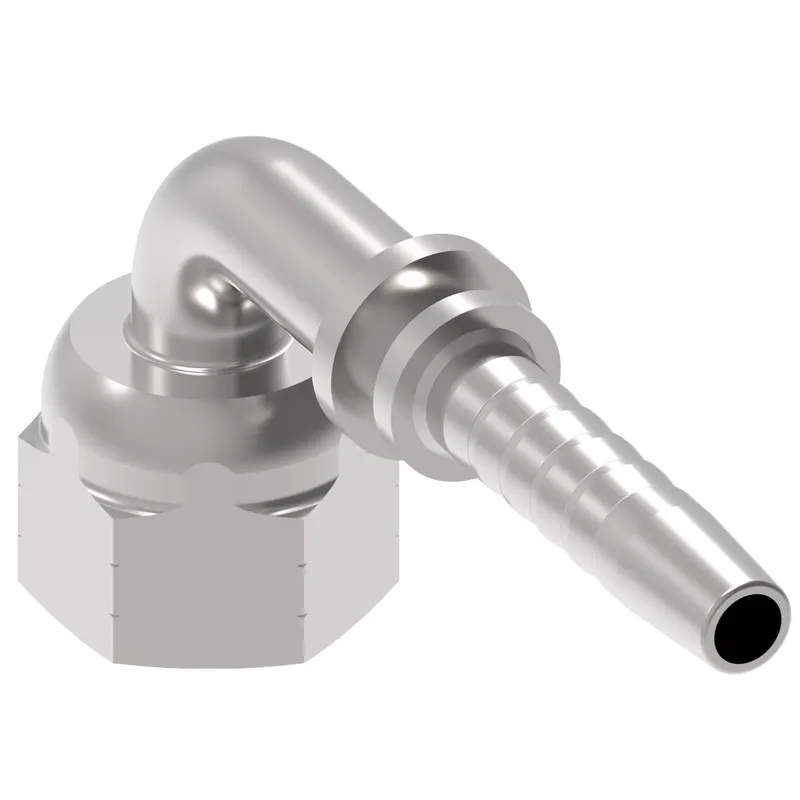

What is the Danfoss 24291-12-12H100Z?

Danfoss HOSE NIPPLE, 2P/12, ORS-F/12, CS, 90D, manufacturer part number 24291-12-12H100Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN4.090
A dimension MM104.000
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.750
Compatible hose ID MM19.050
Construction StyleCrimp
Drop dimension IN3.930
Drop dimension MM100.00
End size 1-12
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN1.410
Hex size 1 MM35.814
Hose cut off factor IN2.578
Hose cut off factor MM65.500
Hose size-12
Inside diameter IN0.590
Inside diameter MM15.000
Product height in4.410
Product height mm112.014
Product length in4.800
Product length mm121.920
Product materialCarbon steel
Product width in1.410
Product width mm35.814
Thread sealantNo
Working pressure max BAR414
Working pressure max PSI6000
