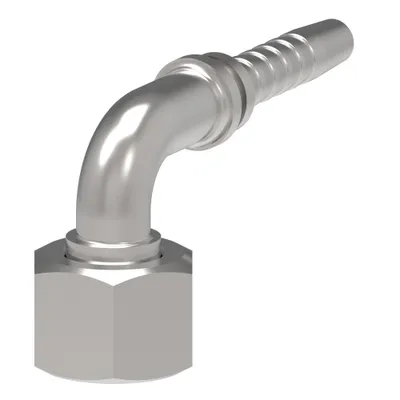

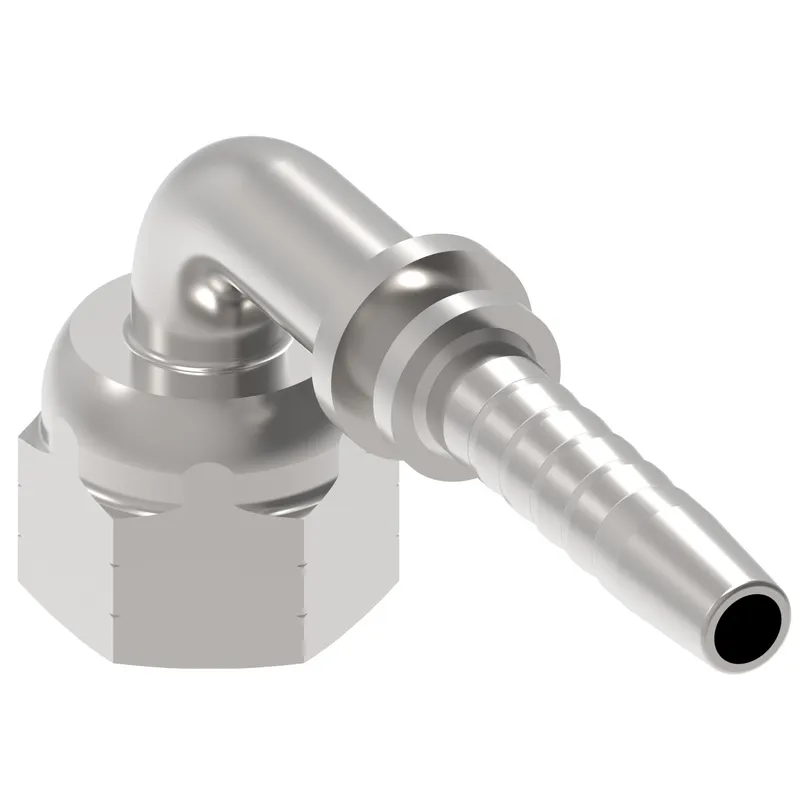

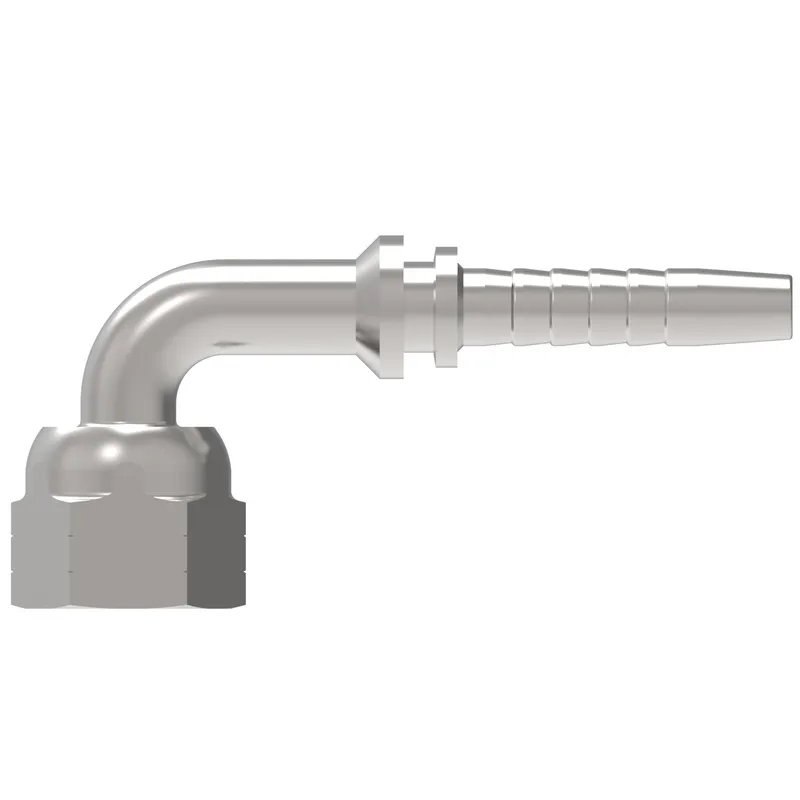

HOSE NIPPLE ASSY,2P/10,ORS-F/10,CS,90D

MPN
24291-10-10H70ZF
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24291-10-10H70ZF?

Danfoss HOSE NIPPLE ASSY,2P/10,ORS-F/10,CS,90D, manufacturer part number 24291-10-10H70ZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146192257
A dimension IN3.540
A dimension MM90.000
Angle shape90 Degree
Compatible hose ID IN0.620
Compatible hose ID MM15.875
Compatible hoses EC110, EC115, EC210, EC215
Construction StyleCrimp
Drop dimension IN2.760
Drop dimension MM70.00
End size 1-10
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN1.188
Hex size 1 MM30.000
Hose cut off factor IN2.200
Hose cut off factor MM56.000
Hose size-10
Inside diameter IN0.470
Inside diameter MM12.000
Product height in3.736
Product height mm94.899
Product length in3.543
Product length mm90.000
Product materialCarbon steel
Product width in1.181
Product width mm30
Thread sealantNo
Thread size 11-14 UNS
Working pressure max BAR552
Working pressure max PSI8100
