Danfoss 24211Y-10-08TZ

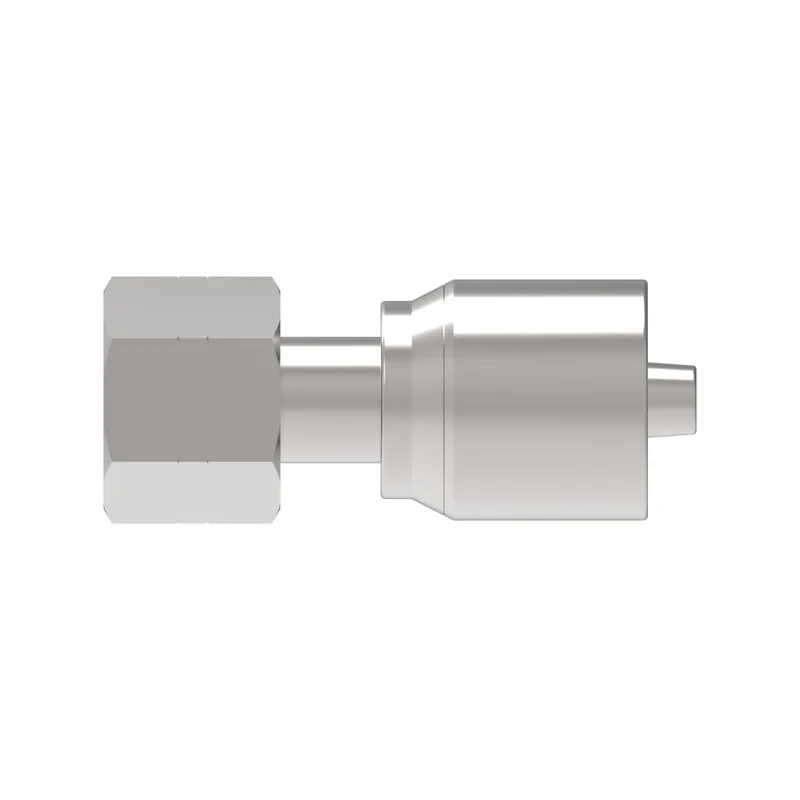

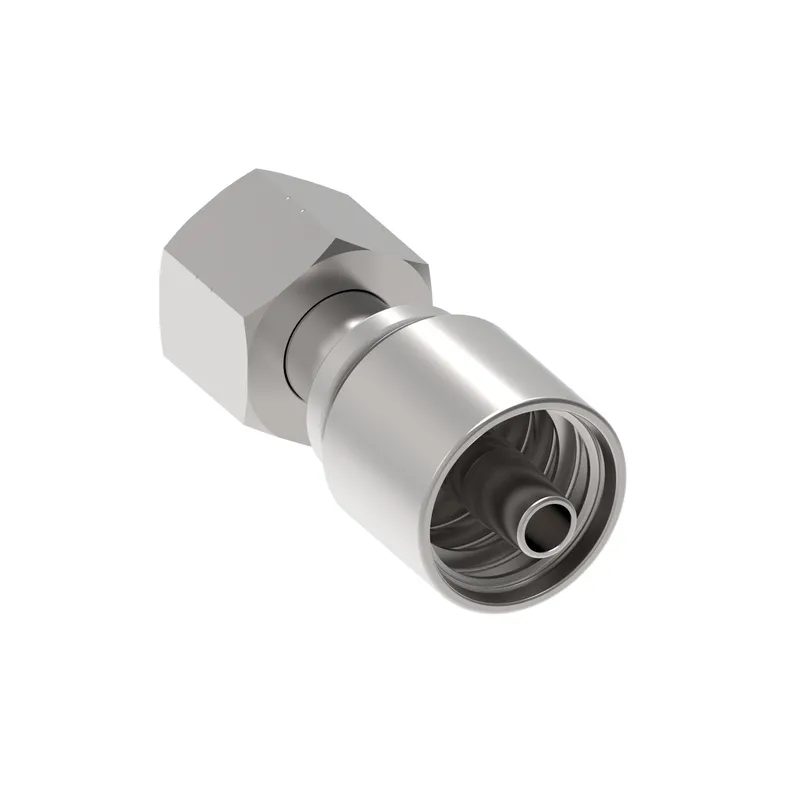

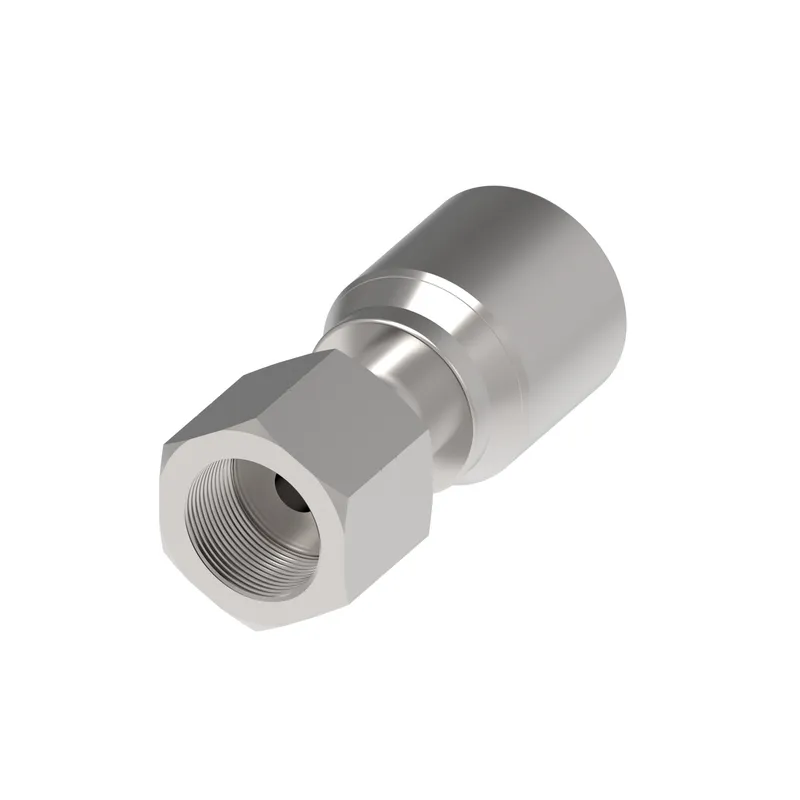

HOSE NIPPLE ASSY,2P/08,ORS-F/10,CS,STR

MPN
24211Y-10-08TZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24211Y-10-08TZ?

Danfoss HOSE NIPPLE ASSY,2P/08,ORS-F/10,CS,STR, manufacturer part number 24211Y-10-08TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.400
A dimension MM61.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Construction StyleCrimp
End size 1-10
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN1.813
Hex size 1 MM30.000
Hose cut off factor IN1.160
Hose cut off factor MM29.500
Hose size-8
Inside diameter IN0.450
Inside diameter MM11.500
Product height in1.360
Product height mm34.544
Product length in2.910
Product length mm73.914
Product materialCarbon steel
Product width in1.180
Product width mm29.972
Thread sealantNo
Thread size 11-14 UNS
Working pressure max BAR552
Working pressure max PSI8100
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
