Danfoss 24211Y-06-06Z

HOSE NIPPLE ASSY,2P/06,ORS-F/06,CS,STR

MPN
24211Y-06-06Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

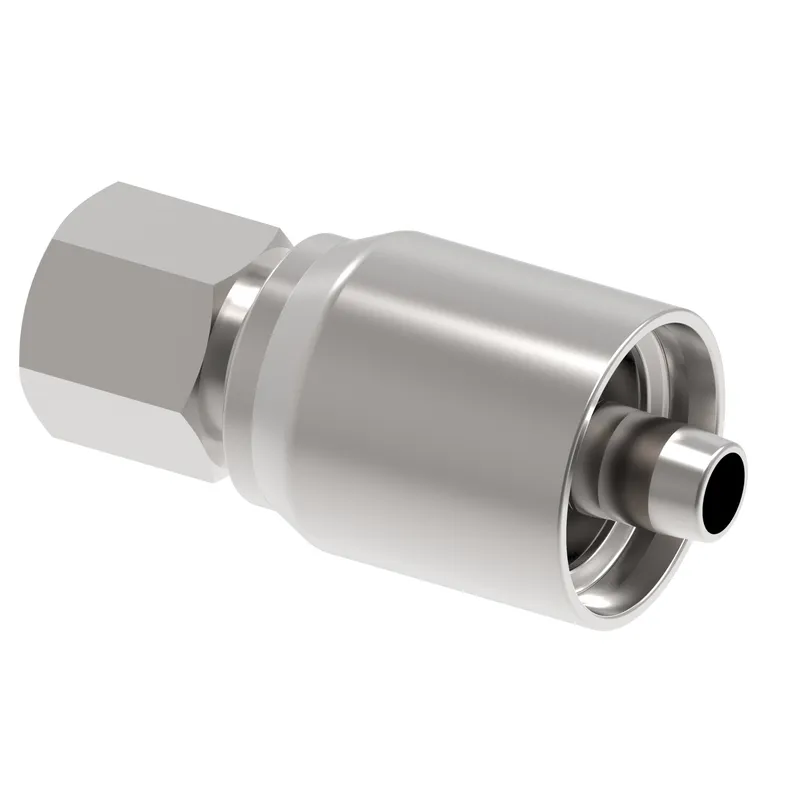

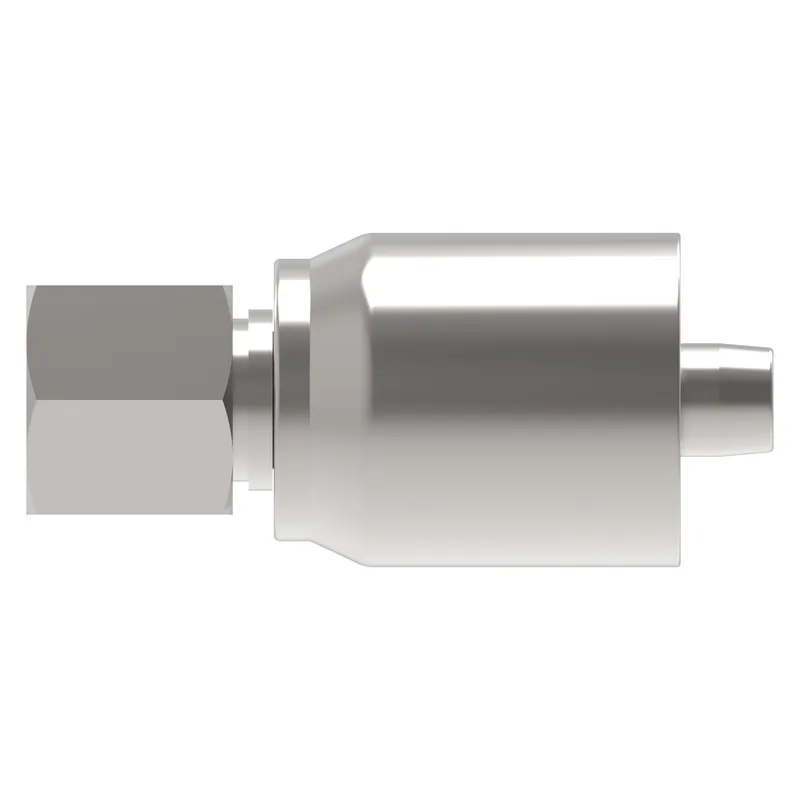

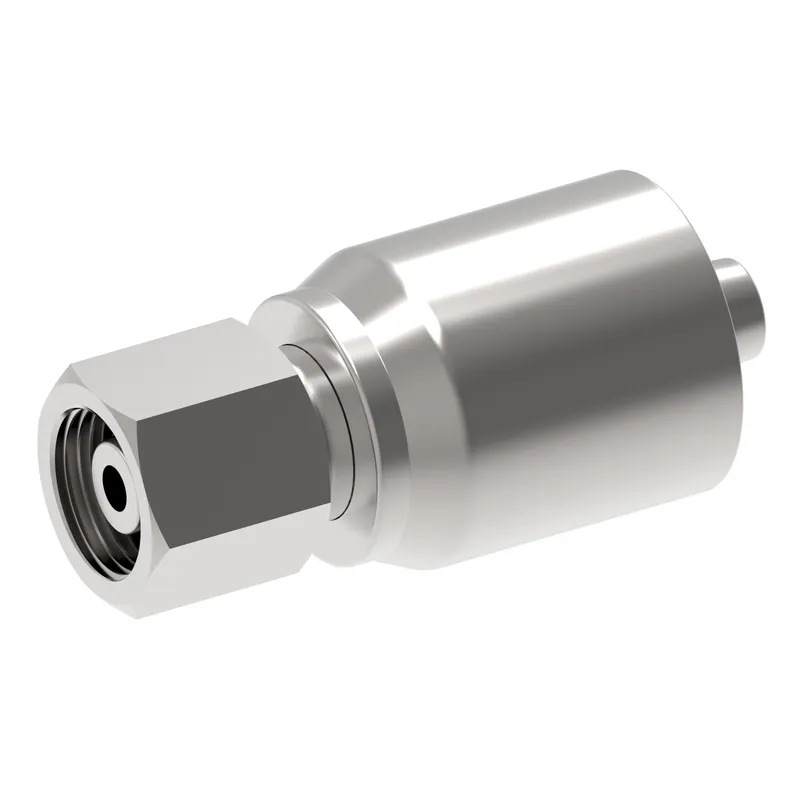

What is the Danfoss 24211Y-06-06Z?

Danfoss HOSE NIPPLE ASSY,2P/06,ORS-F/06,CS,STR, manufacturer part number 24211Y-06-06Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.190
A dimension MM55.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.380
Compatible hose ID MM9.525
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
End size 1-6
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN0.866
Hex size 1 MM22.000
Hex size 2 IN0.870
Hex size 2 MM22.098
Hose cut off factor IN1.000
Hose cut off factor MM25.400
Hose size-6
Inside diameter IN0.280
Inside diameter MM7.000
Product height in1.000
Product height mm25.400
Product length in2.579
Product length mm65.507
Product materialCarbon steel
Product width in0.866
Product width mm21.996
Seal materialNitrile (NBR)
Thread sealantNo
Thread size 111/16-16 UN
Working pressure max BAR621
Working pressure max PSI9100
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

24211Y-06-06Z: frequently asked questions

When can 24211Y-06-06Z be shipped?

24211Y-06-06Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 24211Y-06-06Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 24211Y-06-06Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 24211Y-06-06Z, subject to availability and destination.
