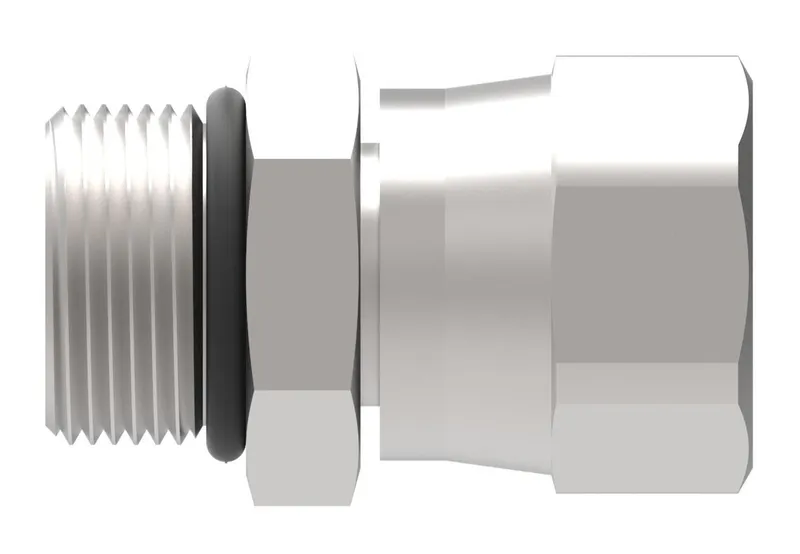

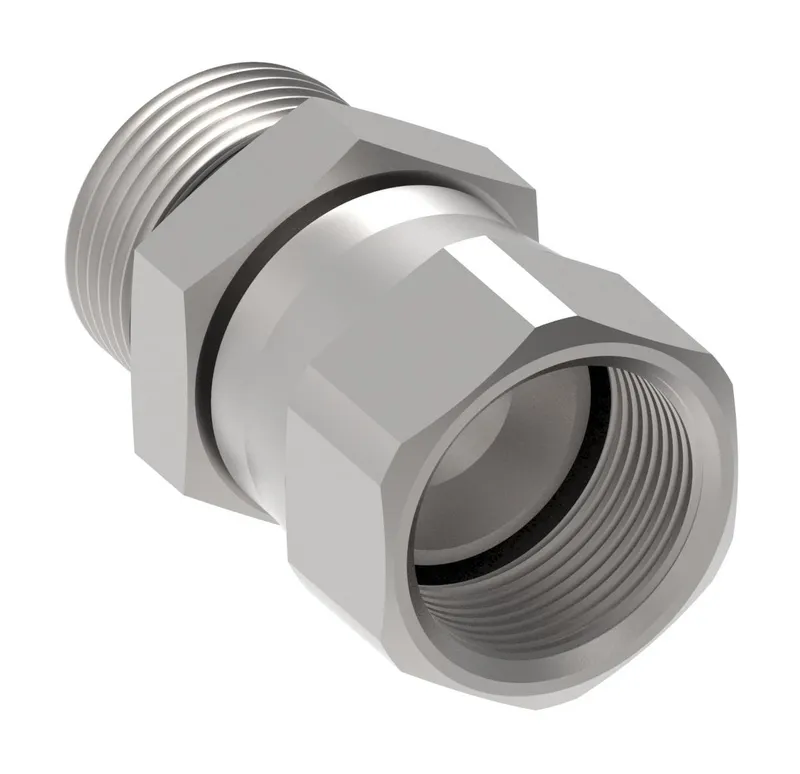

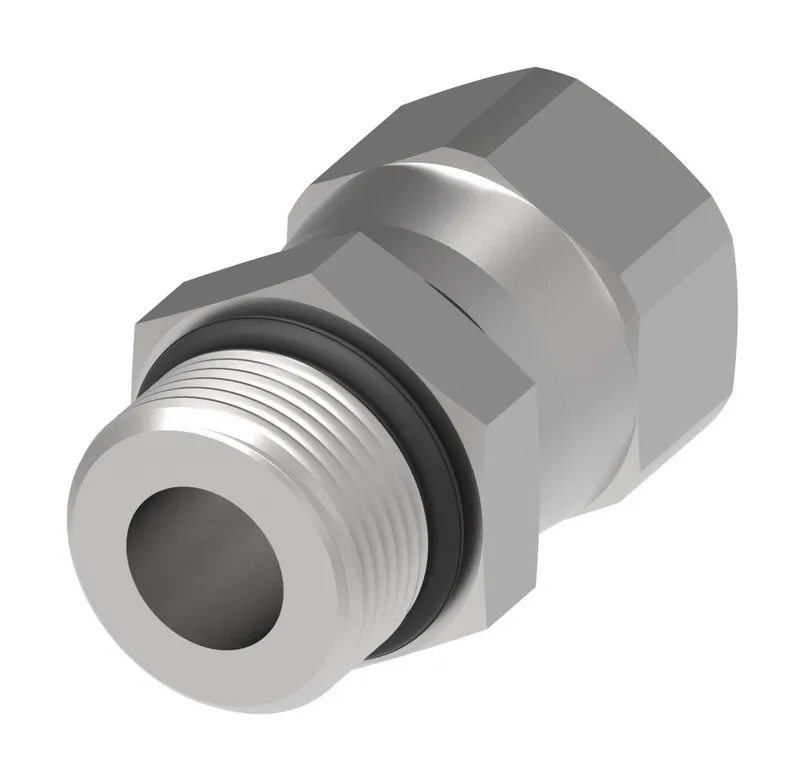

Danfoss 2266-24-24S

Adapter Str 24F SAE37 x 24M ORB

MPN: 2266-24-24S
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 2266-24-24S?

Danfoss Adapter Str 24F SAE37 x 24M ORB, manufacturer part number 2266-24-24S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146188311
End Type 1	Male ORB ISO 11926-3
End Type 2	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	2.125
Hex size 1 MM	54.000
Hex size 2 IN	2.250
Hex size 2 MM	57.200
Item type	Adapter-straight
Product material	Carbon steel
Thread sealant	No
Thread size 1	1 7/8-12 UN
Thread size 2	1 7/8-12 UN
Tube outside diameter 1 IN	1.500
Tube outside diameter 1 MM	38.1
Tube outside diameter 2 IN	1.500
Tube outside diameter 2 MM	38.1
Working pressure bar	103.0
Working pressure psi	1500
Working temp max C	121
Working temp max F	250
Working temp min C	-40
Working temp min F	-40
