Danfoss 2255-2-2S

ADAPTER, NPTF/SM TEE

MPN: 2255-2-2S
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

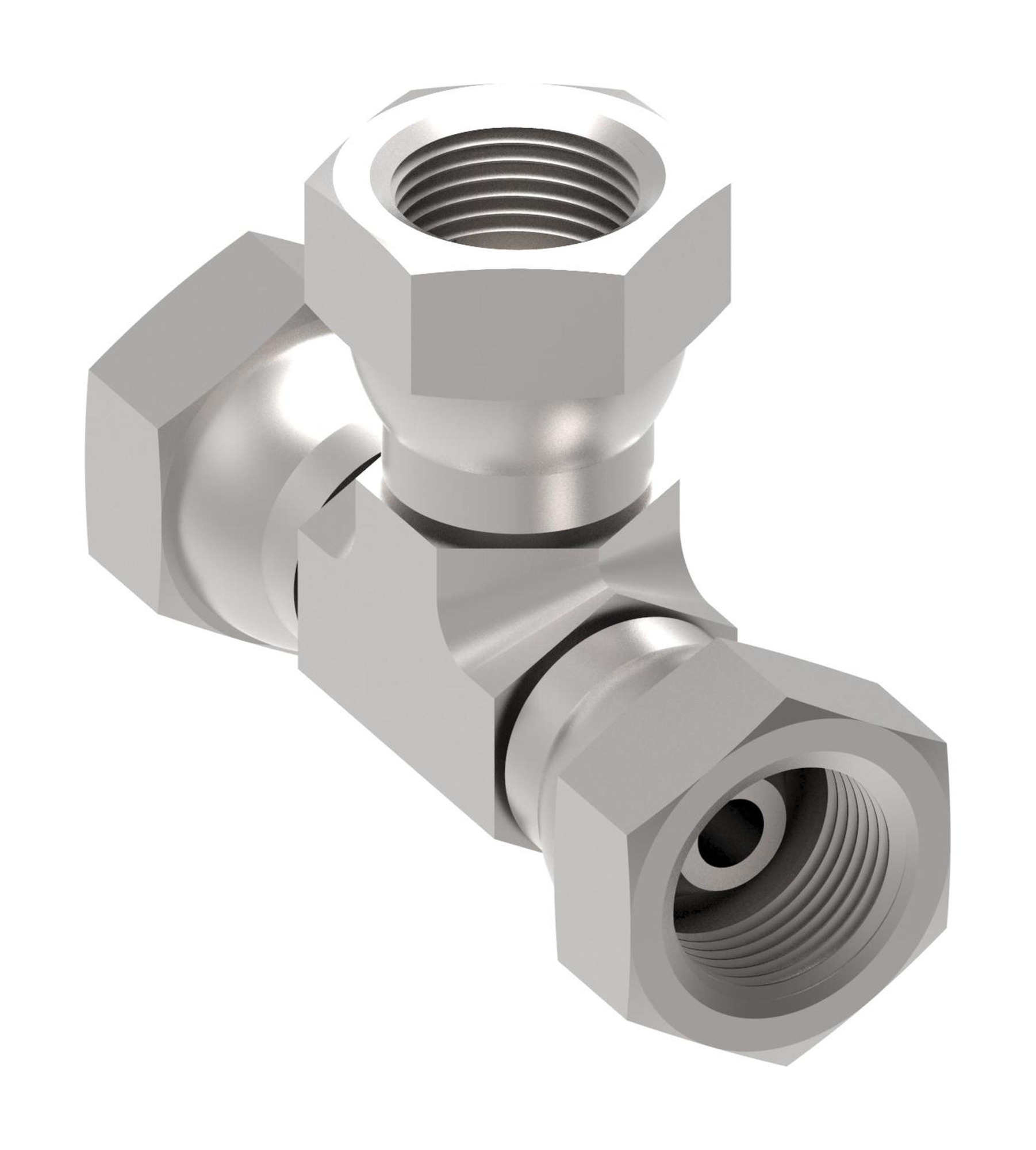

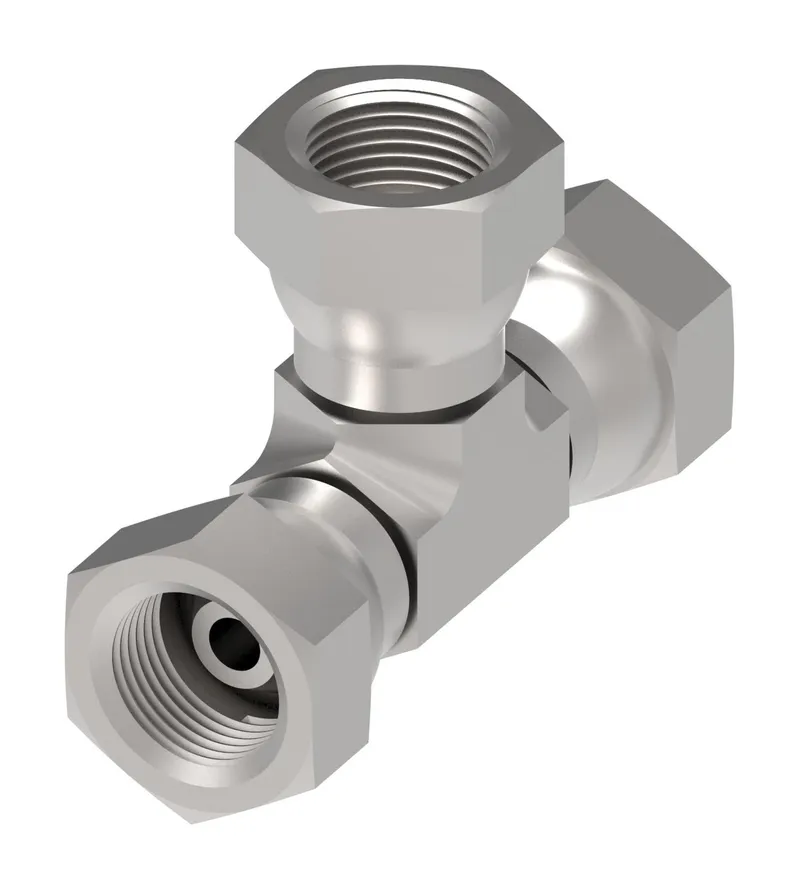

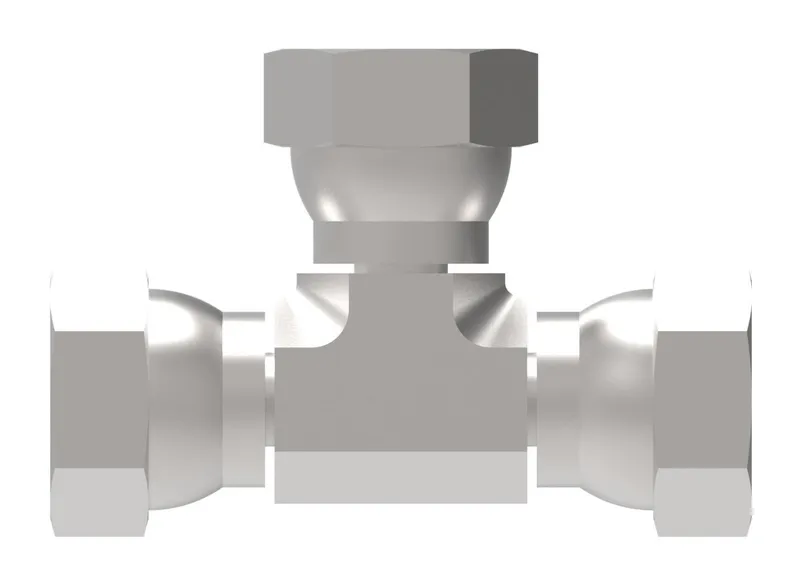

What is the Danfoss 2255-2-2S?

Danfoss ADAPTER, NPTF/SM TEE, manufacturer part number 2255-2-2S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146053442
Brand	Danfoss
Drop dimension IN	0.710
Drop dimension MM	18.00
End Type 1	Female pipe swivel (NPSM)
End Type 2	Female pipe swivel (NPSM)
End type 3	Female pipe swivel (NPSM)
Finish plating	Dura-Kote
Hex size 1 IN	0.472
Hex size 1 MM	12.000
Hex size 2 IN	0.991
Hex size 2 MM	25.200
Hex size 3 IN	0.563
Hex size 3 MM	14.3
Item type	Adapter-tee
Product material	Carbon steel
Thread sealant	No
Tube outside diameter 1 IN	0.125
Tube outside diameter 1 MM	3.2
Tube outside diameter 2 IN	0.125
Tube outside diameter 2 MM	3.2
Tube outside diameter 3 IN	0.125
Tube outside diameter 3 MM	3.2
Working temp max C	204
Working temp max F	400
Working temp min C	-54
Working temp min F	-65
