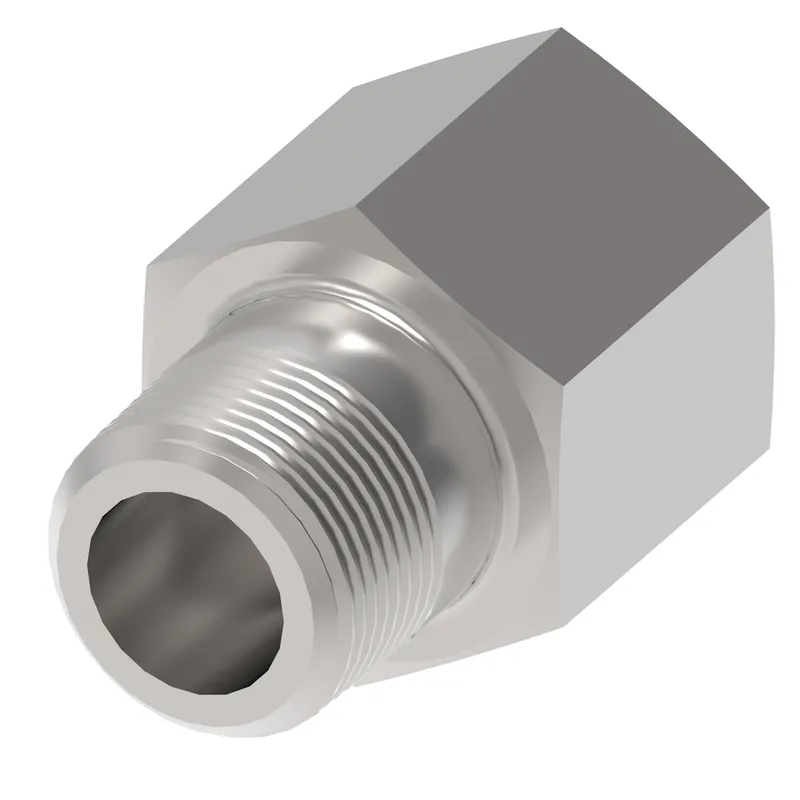

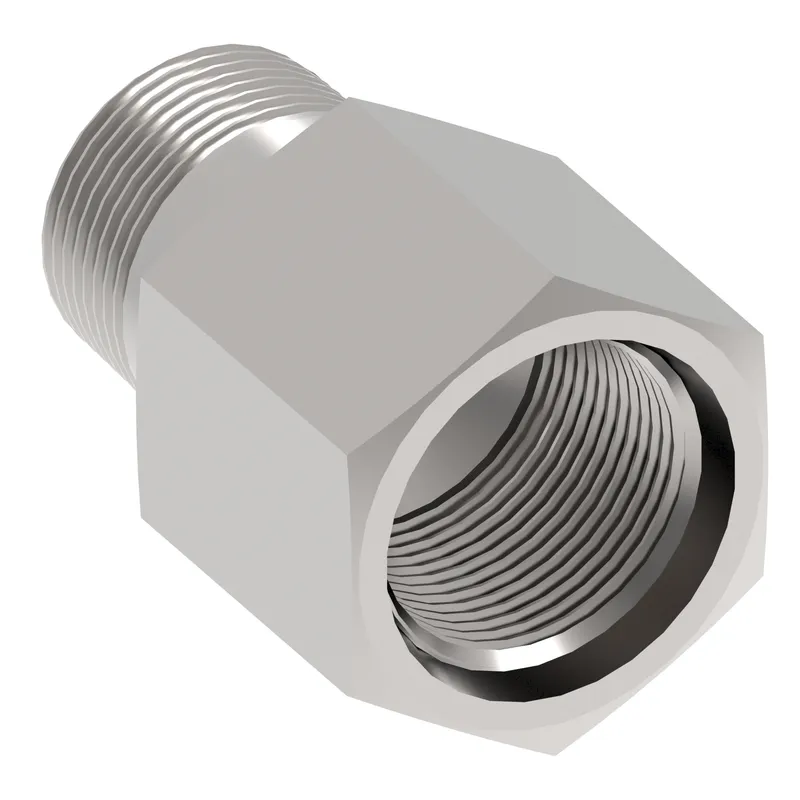

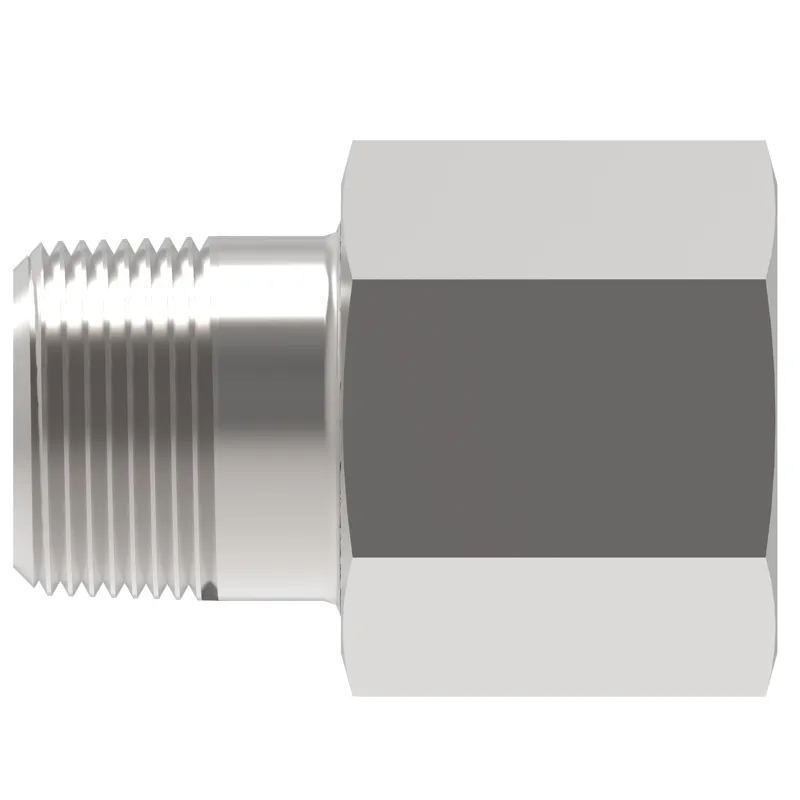

Adaptr WHD C3239X8X8

Name: Danfoss 2246-8-8S-BG – Adaptr WHD C3239X8X8
Brand: Danfoss (Drives)
SKU: 2246-8-8S-BG

MPN: 2246-8-8S-BG · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Adapters and swivel joints
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 2246-8-8S-BG be shipped?

2246-8-8S-BG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 2246-8-8S-BG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 2246-8-8S-BG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2246-8-8S-BG, subject to availability and destination.

Danfoss Adaptr WHD C3239X8X8, manufacturer part number 2246-8-8S-BG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Danfoss
End Type 1	Male pipe (NPTF)
Finish plating	Dura-Kote
Hex size 1 IN	1.125
Hex size 1 MM	28.600
Item type	Adapter-straight
Product material	Carbon steel
Thread sealant	No
Thread size 2	3/4-16 UNF
Tube outside diameter 1 IN	0.500
Tube outside diameter 1 MM	12.7
Tube outside diameter 2 IN	0.500
Tube outside diameter 2 MM	12.7
Working pressure bar	276.0
Working pressure psi	4000
Working temp max C	121
Working temp max F	250
Working temp min C	-40
Working temp min F	-40
