Home / Danfoss (Drives) / X20 series piston pumps / Danfoss 222AK00212B

Danfoss (Drives)

Danfoss 222AK00212B

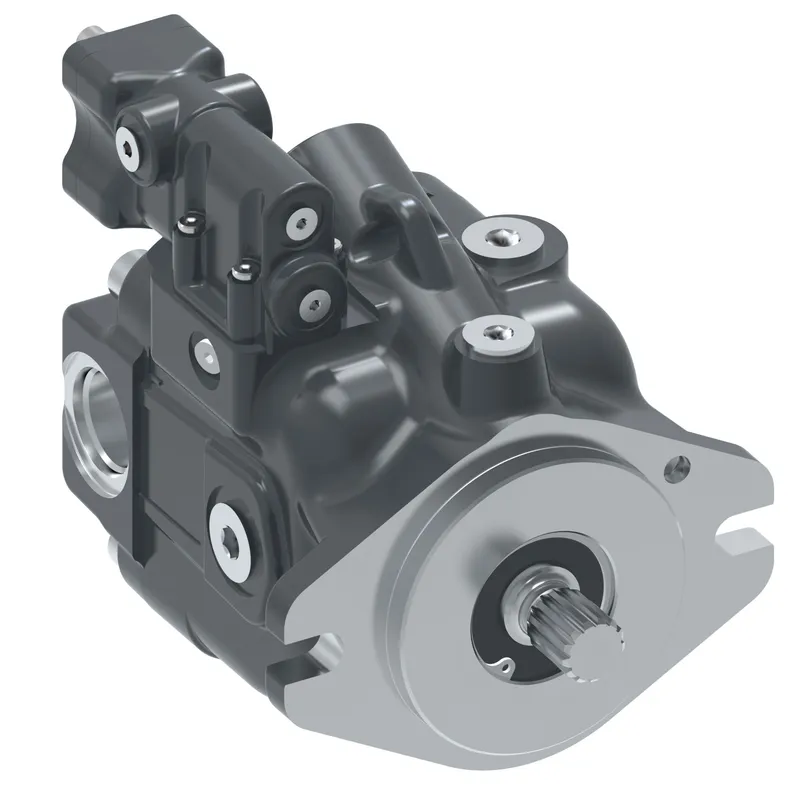

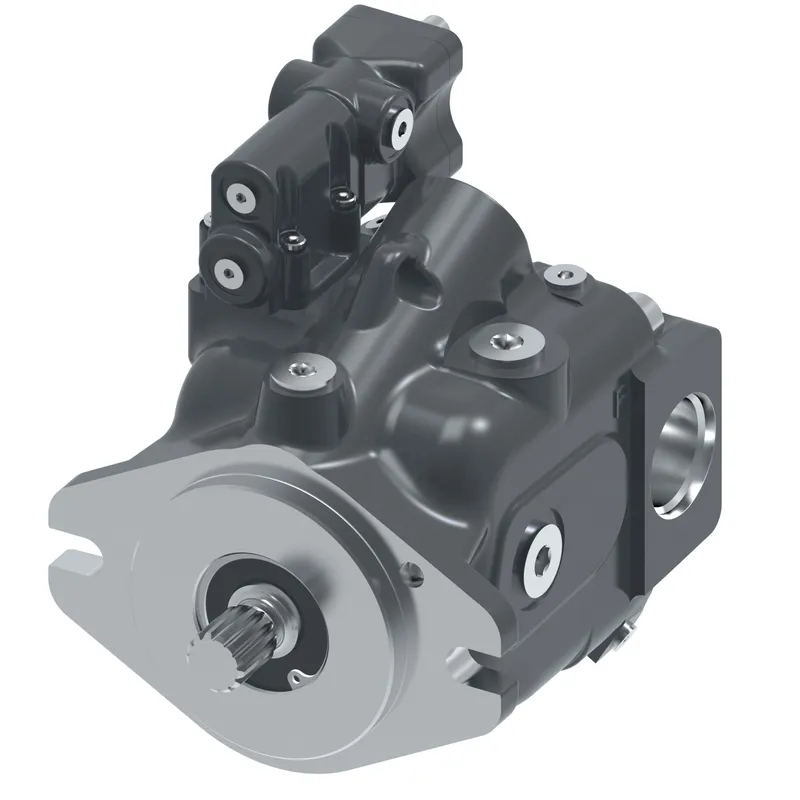

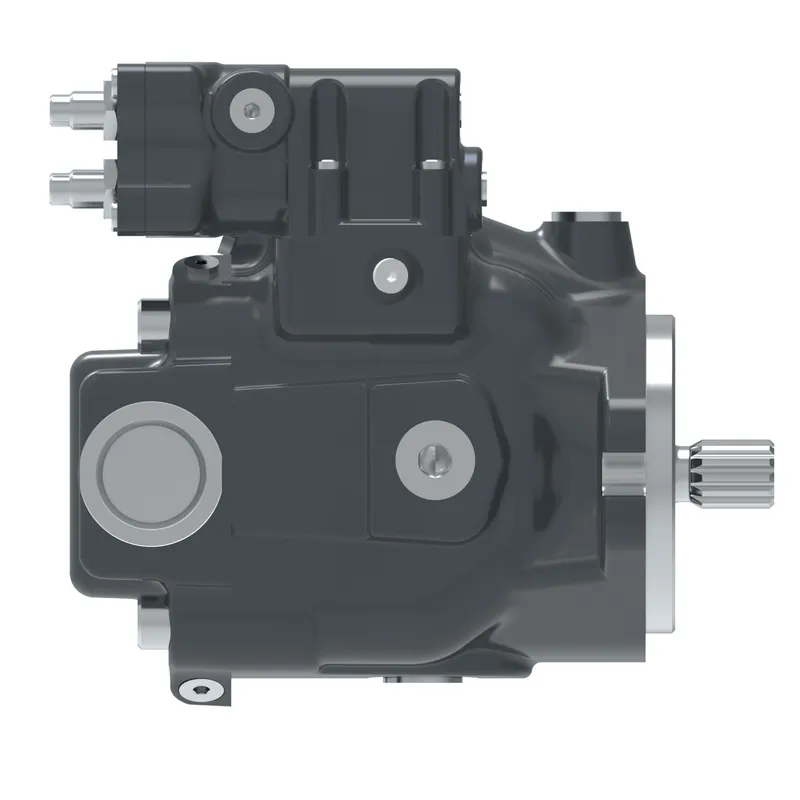

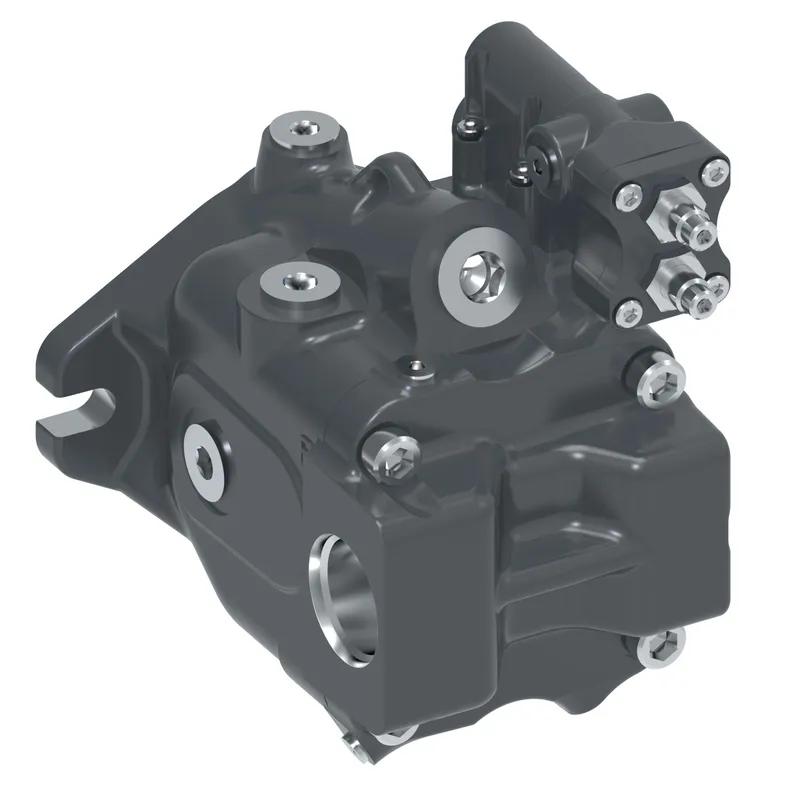

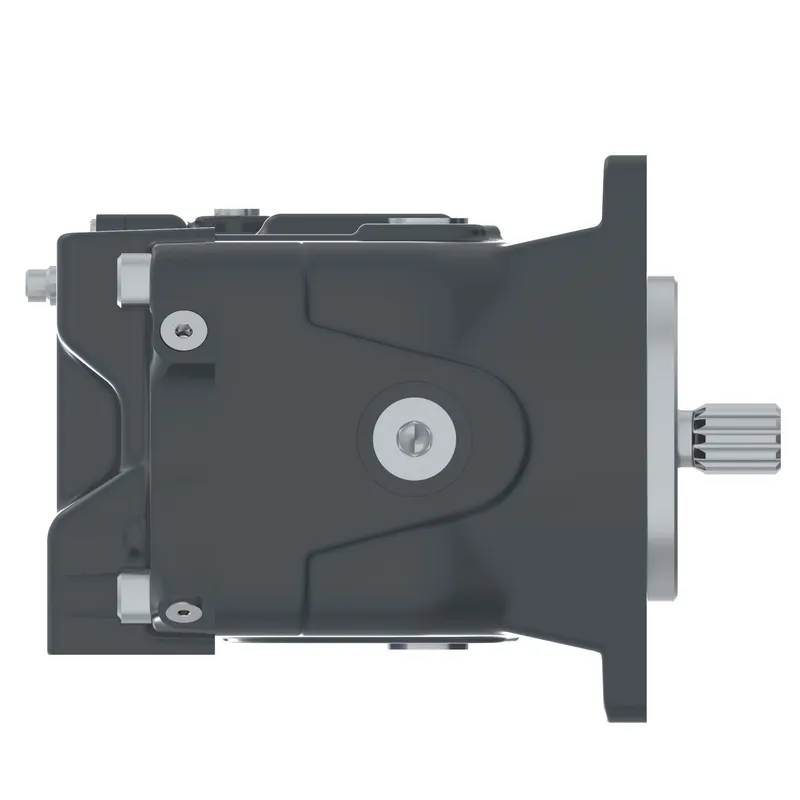

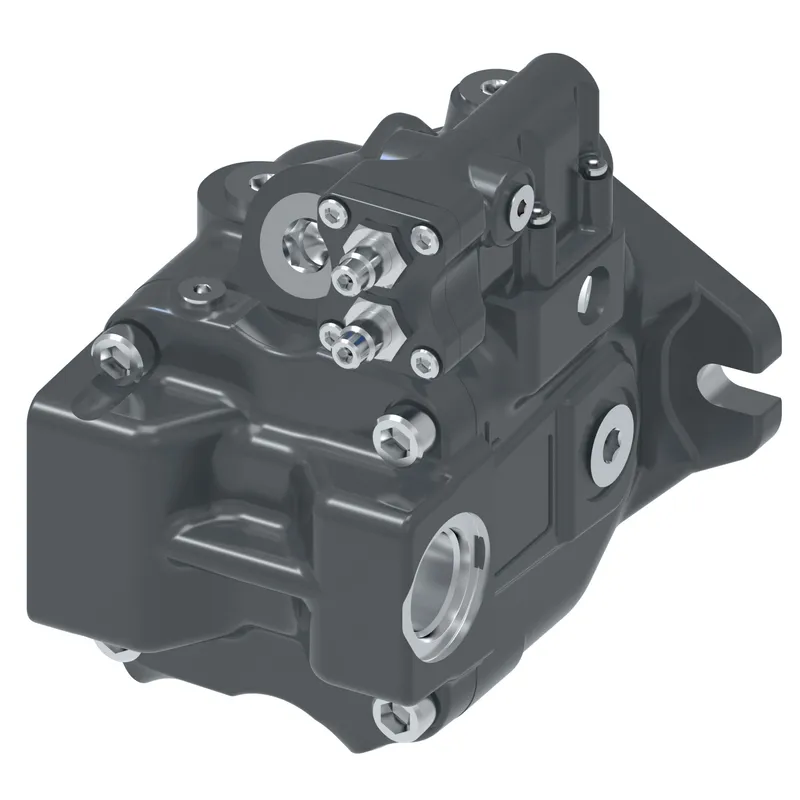

220 SERIES MOBILE PISTON PUMP

MPN: 222AK00212B
Category: X20 series piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 222AK00212B?

Danfoss 220 SERIES MOBILE PISTON PUMP, manufacturer part number 222AK00212B. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Aux mount output shaft	NO AUXILIARY MOUNT
Brand	Danfoss
CODE TITLE	PRESSURE COMPENSATEDPRESSURE FLOW COMPENSATED OPEN CIRCUIT PISTON PUMP
Control special features	NO CONTROL SPECIAL FEATURES
Controller type	REMOTE PRESSURE CONTROL WITH .4375 20 SAE O RINGPORT (LEFT SIDE)
Design code	SECOND DESIGN
Diagnostic pressure ports	.4375 20 UNF 2B SAE O RING PORTS SUCTION AND PRESSURE PLUGGED
Displacement	28.0 CM3R [1.71 IN3R]
Drain port size location	.875-14 UNF 2B O-RING PORT-TOP
Flow comp rpc setting	19.31-22.06 bar [280-320 lbf/in2]
Front mounting input shaft	2 BOLT B (SAE J744 101 2) WITH 25.4[1.00] DIASTRAIGHT KEY SHAFT WITH .375 24 UNF 2B THREAD
Identification packaging	MARK EATON PRODUCT NUMBER AND FULL MODEL CODE ON LABEL
Input shaft rotation	RIGHT HAND ROTATION (CW) RIGHT SIDE SUCTIONPORT LEFT SIDE PRESSURE PORT
Main ports size location	REAR PORT; SUCTION: 1.625 12 UN 2B SAE O RING;PRESSURE: 1.0625 12 UN 2B SAE O RING
Maximum displacement option	EXTERNAL MANUAL STROKE ADJUSTMENT (SET AT MAX]
Paint	BLUE PRIMER PER SPEC 209-13CD (STANDARD)
PRESSURE COMP SETTING	196.5-203.4 bar [2850-2950 lbf/in2]
PUMP SPECIAL FEATURES	NO PUMP SPECIAL FEATURES
Secondary comp setting	NO SECONDARY COMPENSATOR SETTING
Shaft seal	FLUOROCARBON RUBBER SHAFT SEAL
