Danfoss 222AK00031B

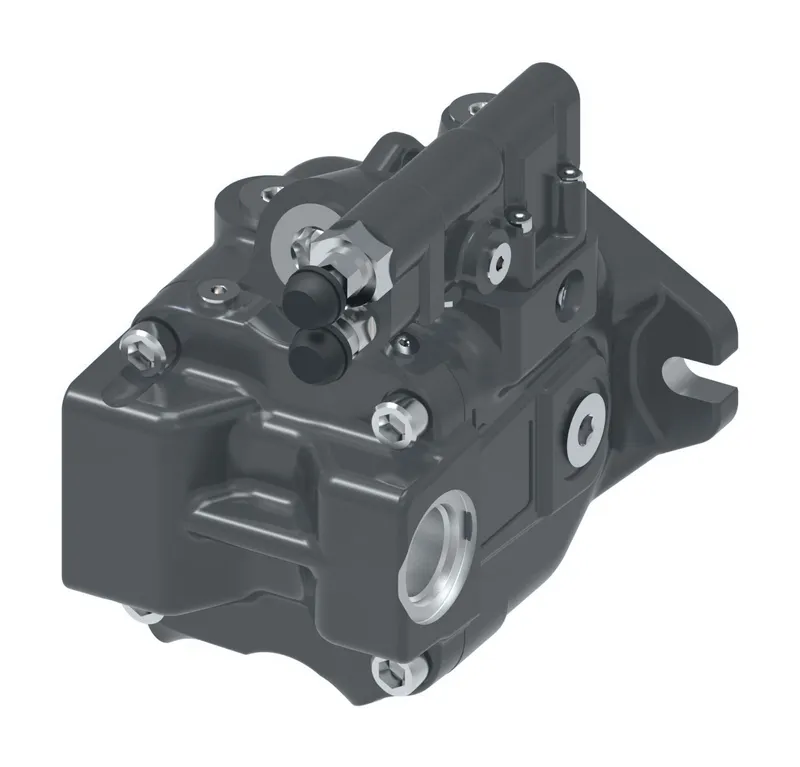

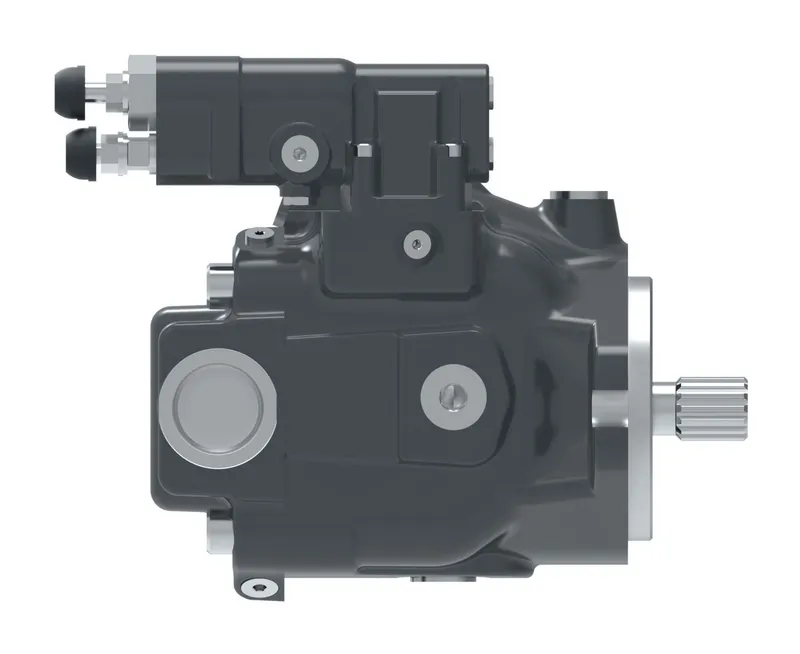

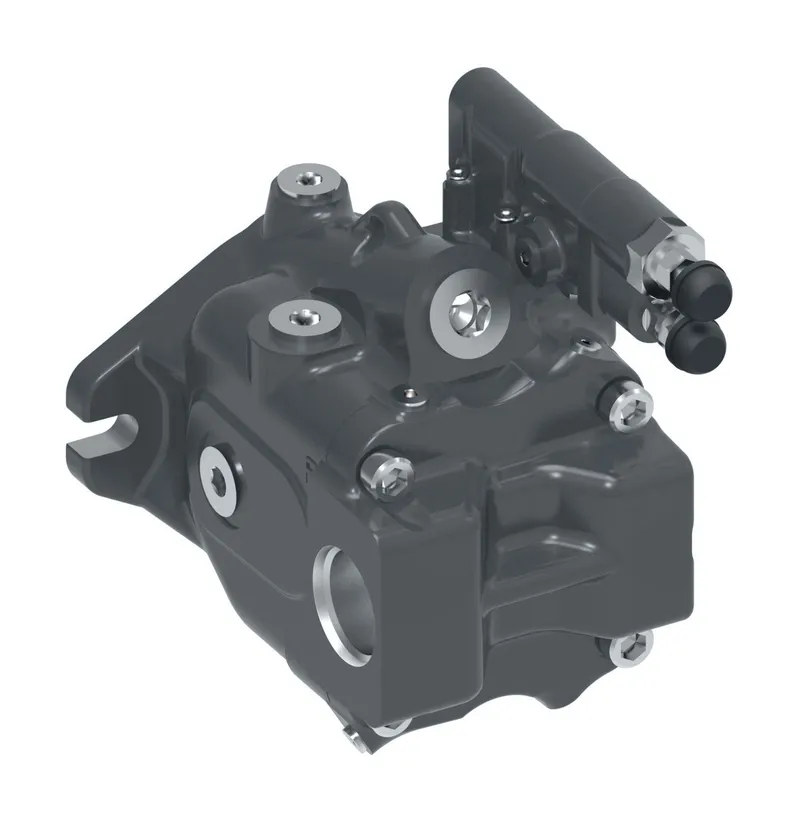

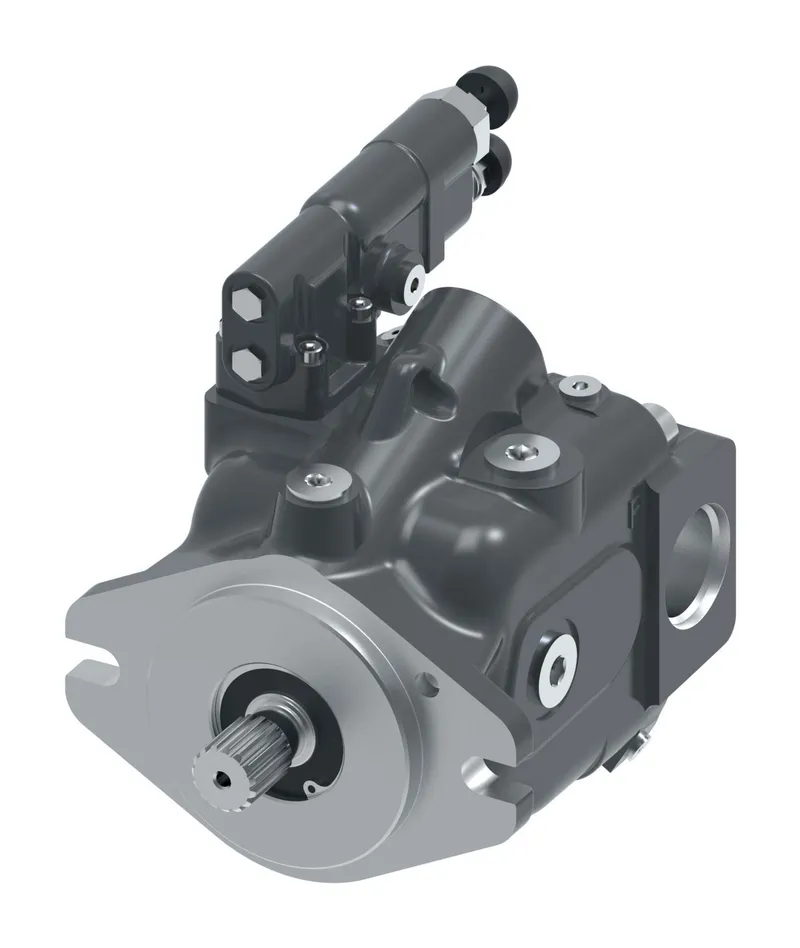

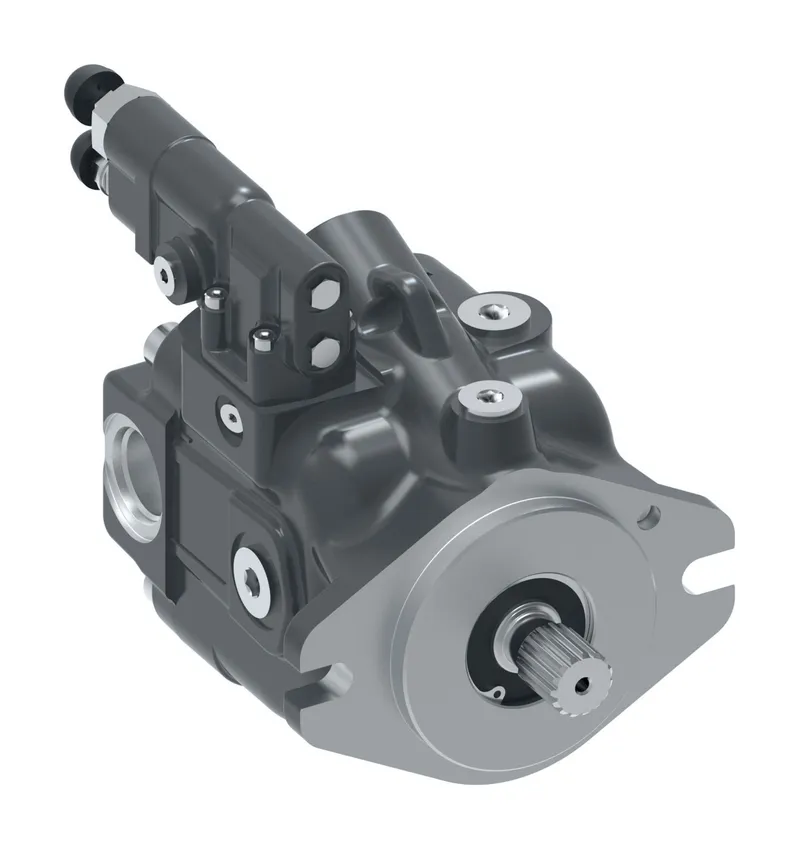

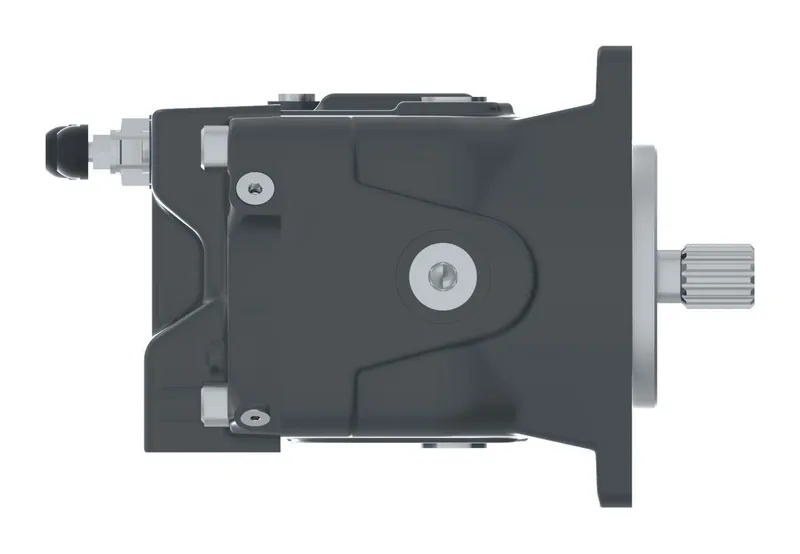

AEC028R05AAA1C0900000020 0200CC1B

MPN: 222AK00031B
Category: X20 series piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 222AK00031B?

Danfoss AEC028R05AAA1C0900000020 0200CC1B, manufacturer part number 222AK00031B. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Aux mount output shaft	NO AUXILIARY MOUNT
Brand	Danfoss
CODE TITLE	PRESSURE COMPENSATEDPRESSURE FLOW COMPENSATED OPEN CIRCUIT PISTON PUMP
Control special features	NO CONTROL SPECIAL FEATURES
Controller type	PRESSURE COMPENSATOR
Design code	SECOND DESIGN
Diagnostic pressure ports	.4375 20 UNF 2B SAE O RING PORTS SUCTION AND PRESSURE PLUGGED
Displacement	28.0 CM3R [1.71 IN3R]
Drain port size location	.875-14 UNF 2B O-RING PORT-TOP
Flow comp rpc setting	NO FLOW COMPENSATOR SETTING
Front mounting input shaft	2 BOLT B (SAE J744 101 2) WITH 22.2[.88] DIASTRAIGHT KEYED SHAFT (SAE J744 22 1 B
Identification packaging	MARK EATON PRODUCT NUMBER AND FULL MODEL CODE ON LABEL
Input shaft rotation	RIGHT HAND ROTATION (CW) RIGHT SIDE SUCTIONPORT LEFT SIDE PRESSURE PORT
Main ports size location	REAR PORT; SUCTION: 1.625 12 UN 2B SAE O RING;PRESSURE: 1.0625 12 UN 2B SAE O RING
Maximum displacement option	EXTERNAL MANUAL STROKE ADJUSTMENT (SET AT MAX]
Paint	YELLOW PER SPEC 209-13CC
PRESSURE COMP SETTING	117.2-124.1 bar [1700-1800 lbf/in2]
PUMP SPECIAL FEATURES	NO PUMP SPECIAL FEATURES
Secondary comp setting	NO SECONDARY COMPENSATOR SETTING
Shaft seal	NITRILE SHAFT SEAL
