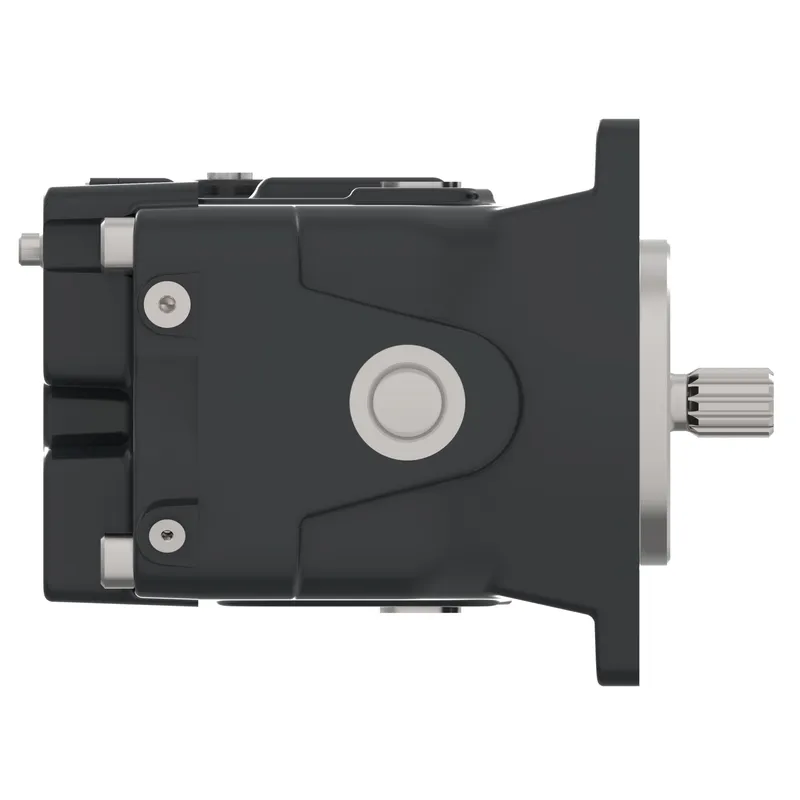

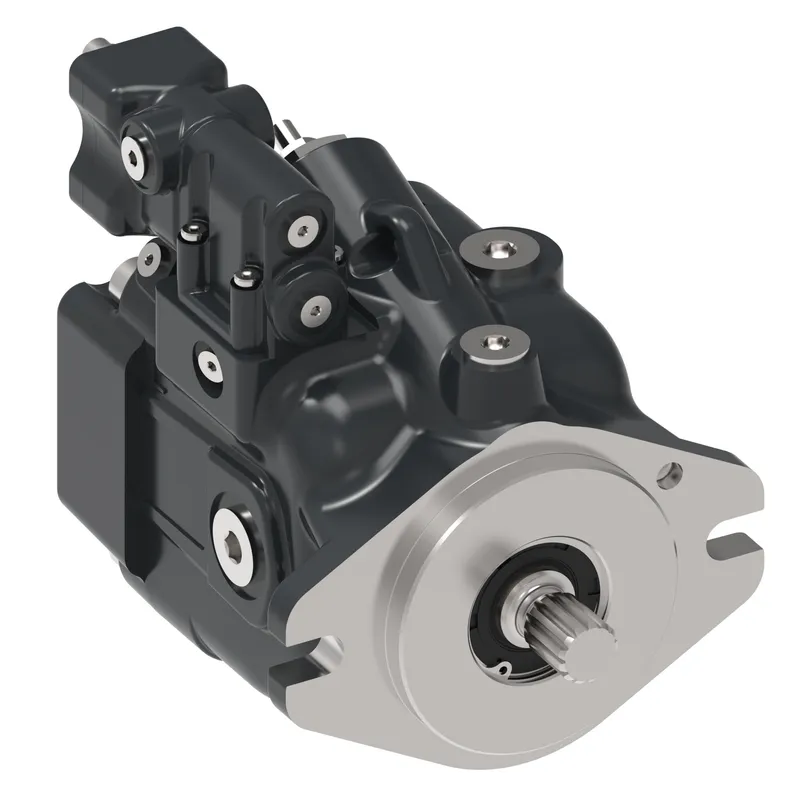

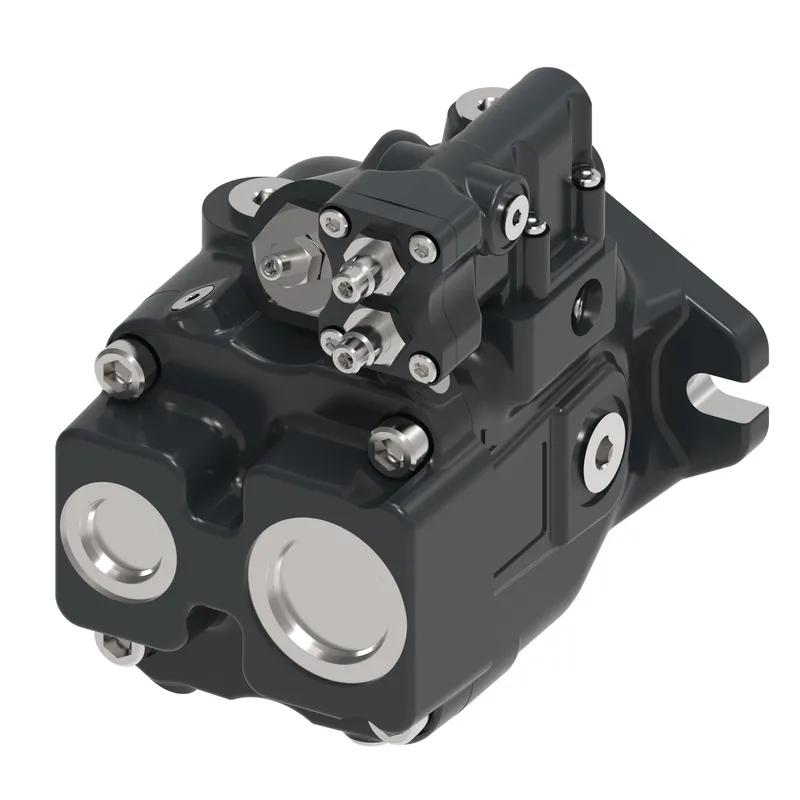

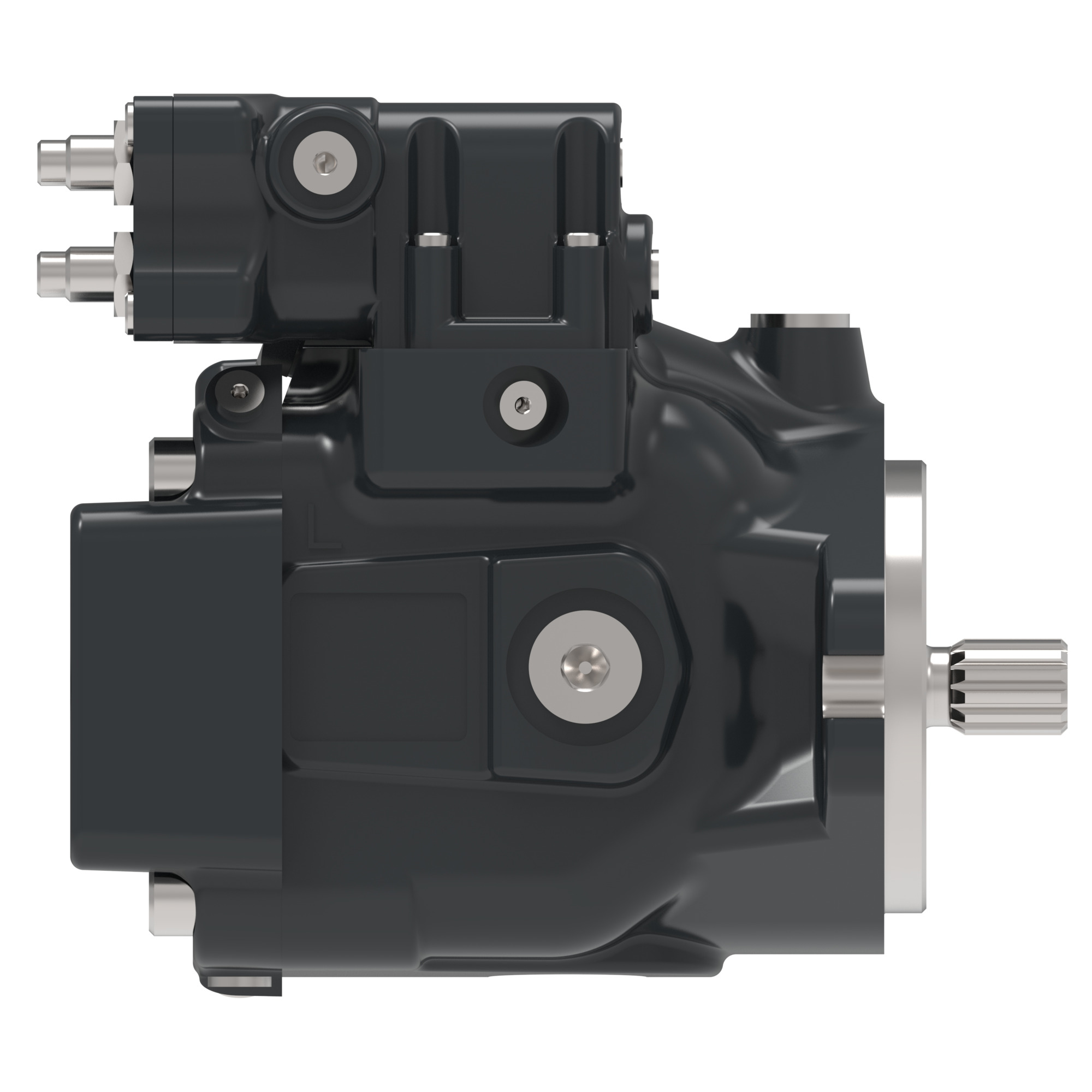

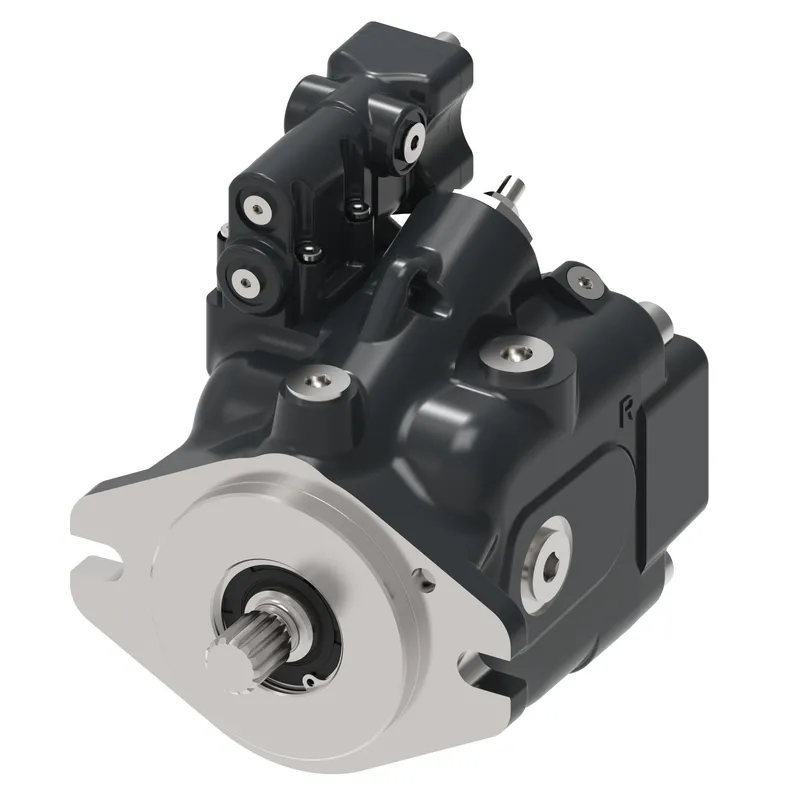

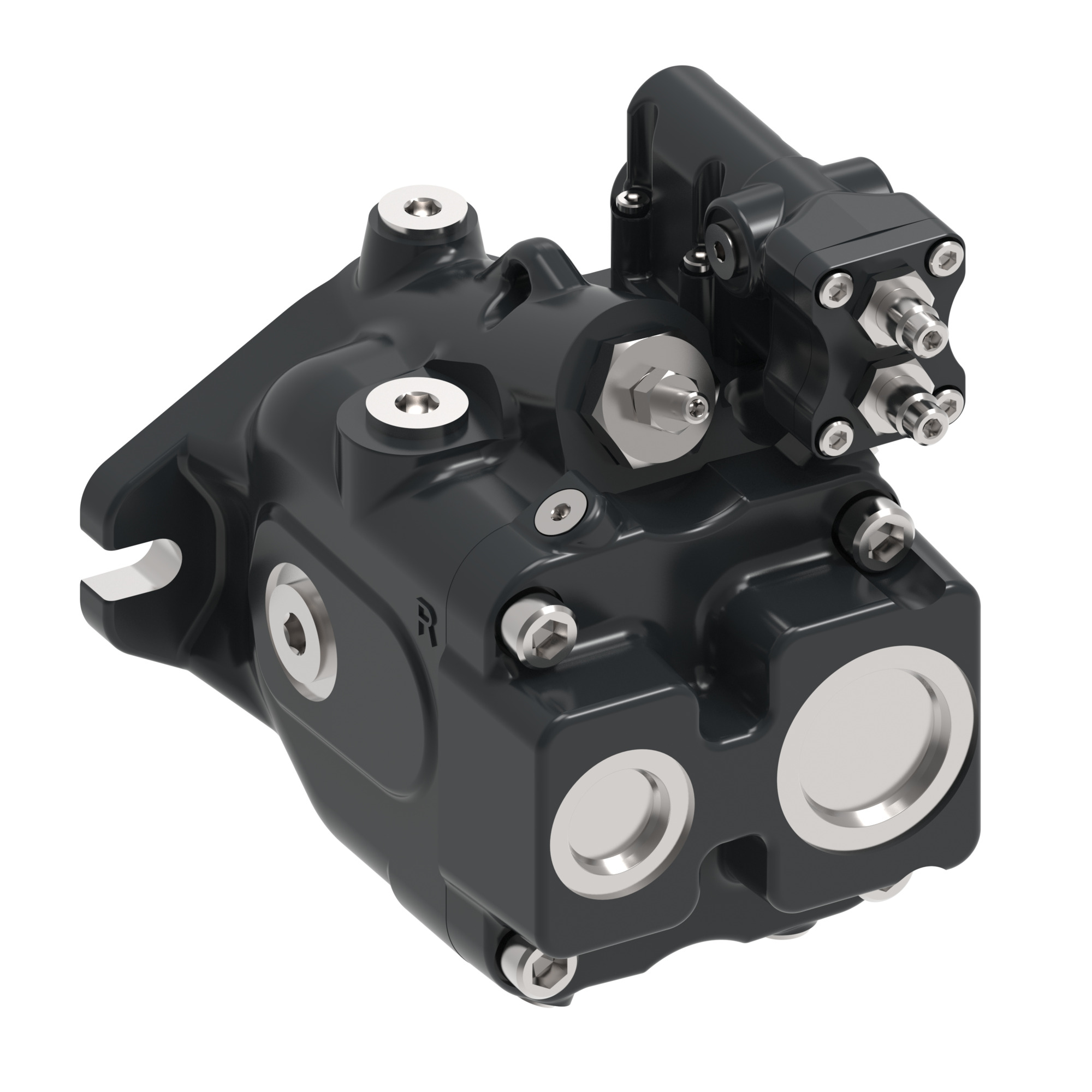

Danfoss 222AK00023B

AEC028R31ABA1AA282000000100100CD01B

MPN: 222AK00023B
Category: X20 series piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 222AK00023B?

Danfoss AEC028R31ABA1AA282000000100100CD01B, manufacturer part number 222AK00023B. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Aux mount output shaft	NO AUXILIARY MOUNT
CODE TITLE	PRESSURE COMPENSATEDPRESSURE FLOW COMPENSATED OPEN CIRCUIT PISTON PUMP
Control special features	NO CONTROL SPECIAL FEATURES
Controller type	PRESSURE FLOW COMPENSATOR WITH .4375 20 SAEO RING LOAD SENSE PORT (LEFT SIDE)
Design code	SECOND DESIGN
Diagnostic pressure ports	.4375 20 UNF 2B SAE O RING PORTS SUCTION AND PRESSURE PLUGGED
Displacement	28.0 CM3R [1.71 IN3R]
Drain port size location	.875-14 UNF 2B O-RING PORT-TOP
Flow comp rpc setting	17.24-19.99 bar [250-290 lbf/in2]
Front mounting input shaft	2 BOLT B (SAE J744 101 2) WITH 25.4[1.00] DIASTRAIGHT KEY SHAFT WITH .375 24 UNF 2B THREAD
Identification packaging	MARK EATON PRODUCT NUMBER AND FULL MODEL CODE ON LABEL
Input shaft rotation	RIGHT HAND ROTATION (CW) RIGHT SIDE SUCTIONPORT LEFT SIDE PRESSURE PORT
Main ports size location	SIDE PORT; SUCTION: 1.625 12 UN 2B SAE O RING;PRESSURE: 1.0625 12 UN 2B SAE O RING
Maximum displacement option	STANDARD DISPLACEMENT (AS GIVEN IN CODE TITLE)
Paint	BLUE PRIMER PER SPEC 209-13CD (STANDARD)
PRESSURE COMP SETTING	206.8-213.7 bar [3000-3100 lbf/in2]
PUMP SPECIAL FEATURES	NO PUMP SPECIAL FEATURES
Secondary comp setting	NO SECONDARY COMPENSATOR SETTING
Shaft seal	FLUOROCARBON RUBBER SHAFT SEAL
