HOSE NIPPLE ASSY, 2P/24, BF/24, CS, 90D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 22191-24-24WZ be shipped?
22191-24-24WZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 22191-24-24WZ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 22191-24-24WZ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 22191-24-24WZ, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY, 2P/24, BF/24, CS, 90D, manufacturer part number 22191-24-24WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 6.980 |
| A dimension MM | 177.400 |
| Angle shape | 90 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 1.500 |
| Compatible hose ID MM | 38.100 |
| Construction Style | Crimp |
| Drop dimension IN | 4.250 |
| Drop dimension MM | 108.00 |
| End connection torque | 258-347 lb-ft(350-470 Nm) |
| End size 1 | -24 |
| End Type 1 | Female BSPP swivel |
| Finish plating | Zinc plating |
| Hex size 1 IN | 2.160 |
| Hex size 1 MM | 54.864 |
| Hose cut off factor IN | 4.300 |
| Hose cut off factor MM | 109.400 |
| Hose size | -24 |
| Inside diameter IN | 1.250 |
| Inside diameter MM | 32.000 |
| Product height in | 4.700 |
| Product height mm | 119.380 |
| Product length in | 4.300 |
| Product length mm | 109.220 |
| Product material | Carbon steel |
| Product width in | 2.160 |
| Product width mm | 54.864 |
| Series | Winner 2-Piece |
| Thread sealant | No |
| Thread size 1 | G 1 1/2 |
More Danfoss (Drives) parts
Available on requestHOSE NIPPLE ASSY, 2P/06, BF/06, CS, 90D
Available on requestHOSE NIPPLE ASSY, 2P/12, BF/12, CS, 90D

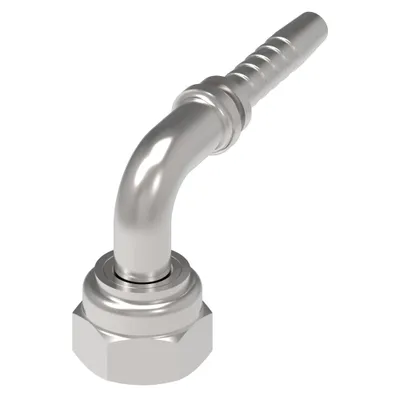

Available on requestHOSE NIPPLE ASSY, 2P/16, BF/16, CS, 90D

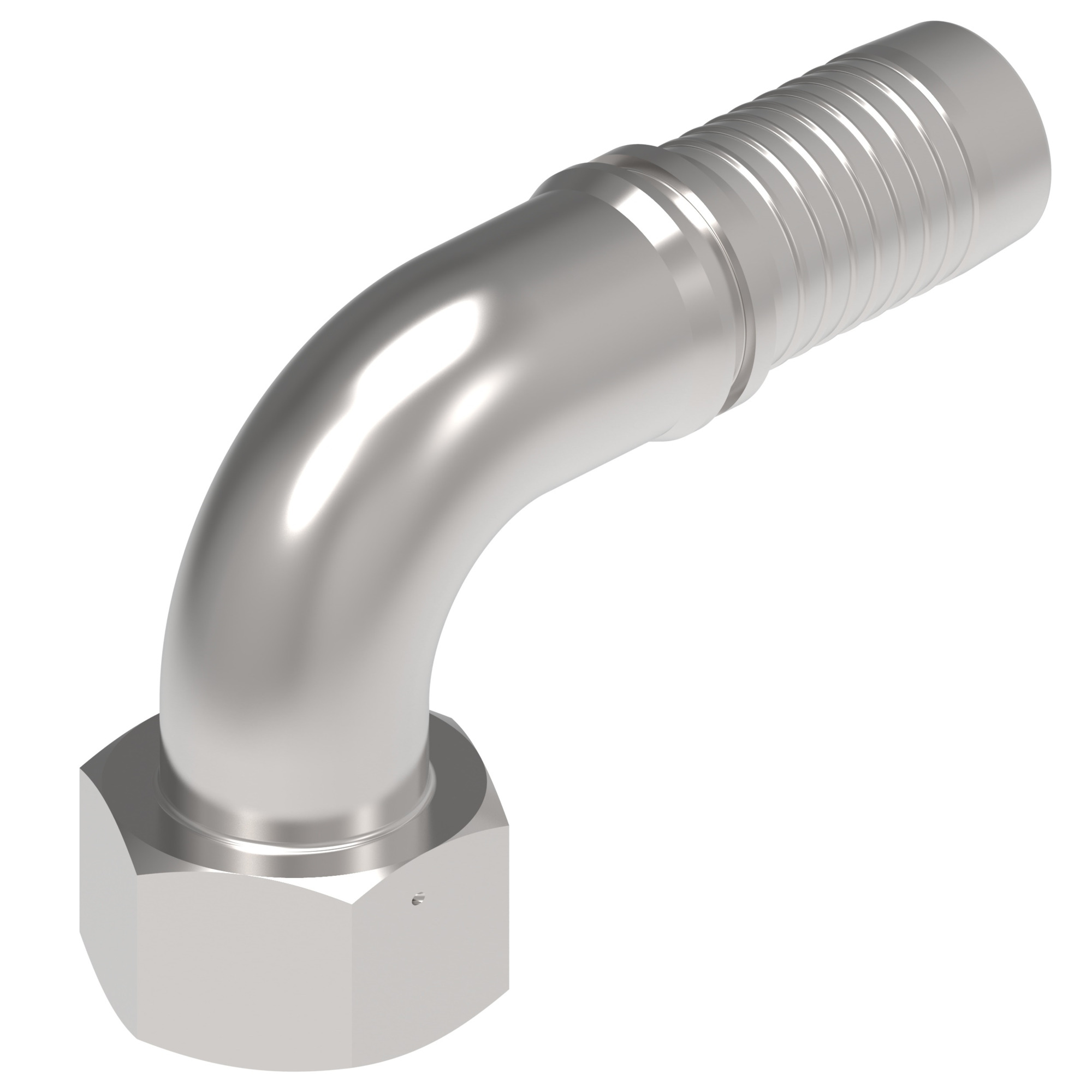

Available on requestHOSE NIPPLE ASSY, 2P/20, BF/20, CS, 90D
Available on requestHOSE NIPPLE ASSY, 2P/32, BF/32, CS, 90D
Available on requestfitting-nipple
Available on requestAdapter-STR,2220-1,-16-16,CS,ZD

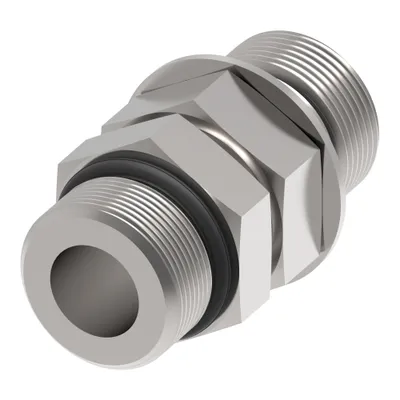

Available on requestAdapter Steel Str 10 M ORB x 10 M ORB
