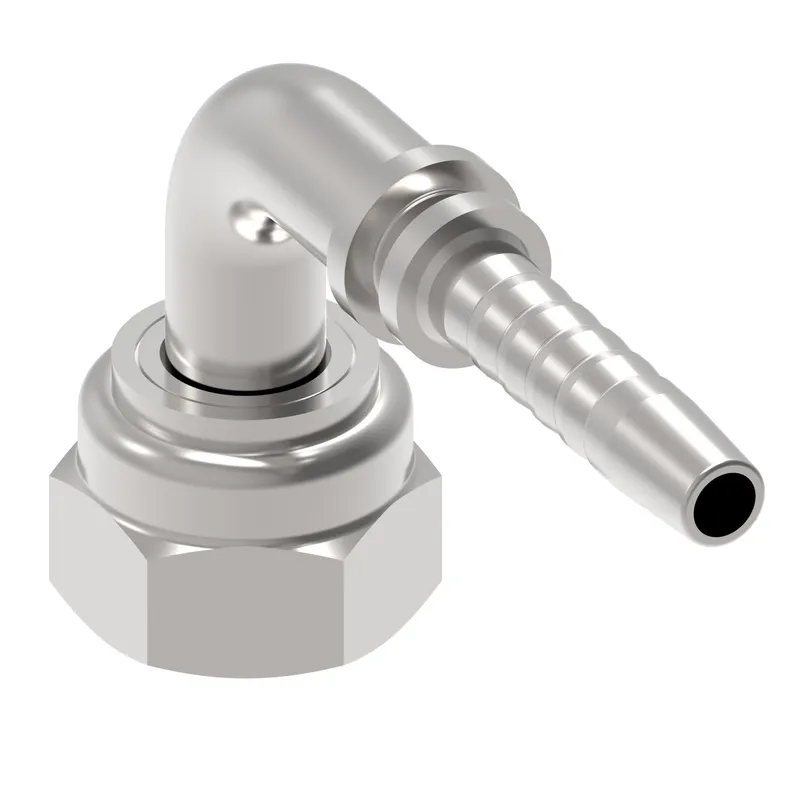

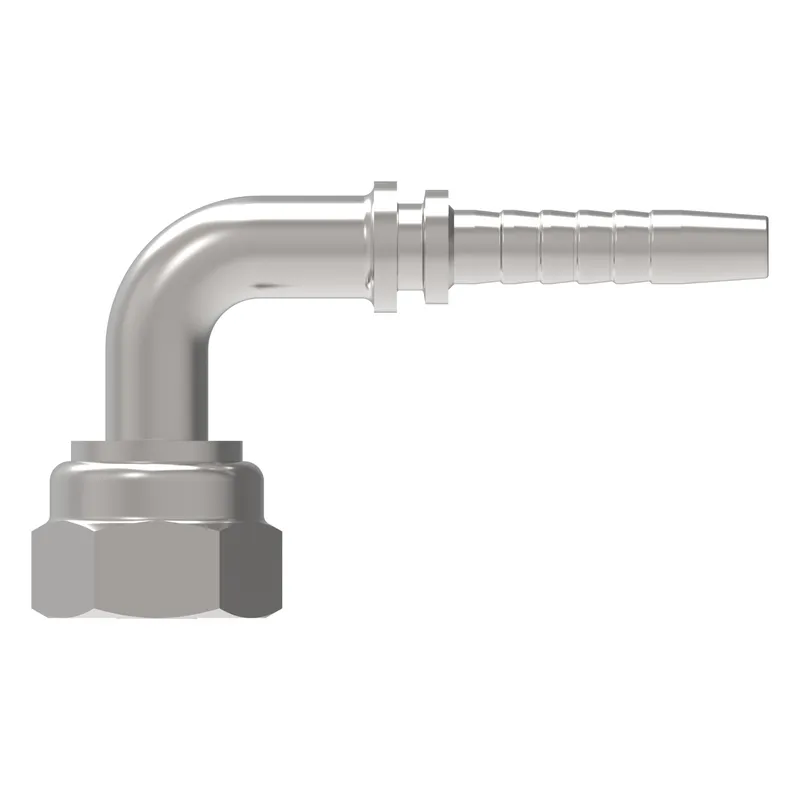

Danfoss 22191-04-04Z

HOSE NIPPLE ASSY, 2P/04, BF/04, CS, 90D

MPN: 22191-04-04Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22191-04-04Z?

Danfoss HOSE NIPPLE ASSY, 2P/04, BF/04, CS, 90D, manufacturer part number 22191-04-04Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.280
A dimension MM	58.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Compatible hoses	EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction Style	Crimp
Drop dimension IN	1.490
Drop dimension MM	38.00
End connection torque	19-23 lb-ft(25-30 Nm)
End size 1	-4
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 2 IN	0.750
Hex size 2 MM	19.050
Hose cut off factor IN	1.180
Hose cut off factor MM	30.000
Hose size	-4
Inside diameter IN	0.157
Inside diameter MM	4.000
Product height in	1.890
Product height mm	48.006
Product length in	2.650
Product length mm	67.310
Product material	Carbon steel
Product width in	0.750
Product width mm	19.05
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	G 1/4
