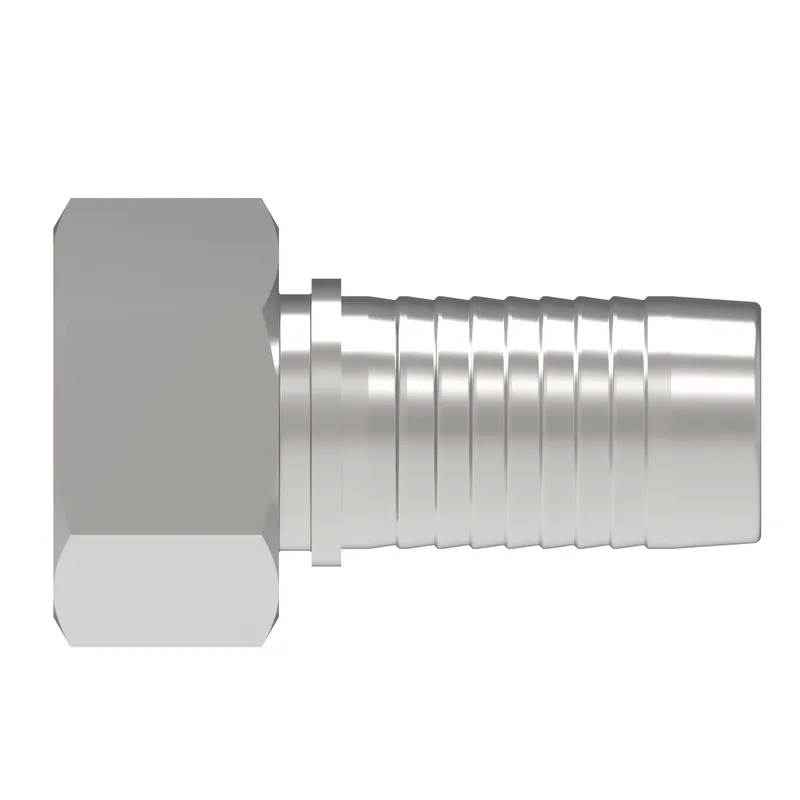

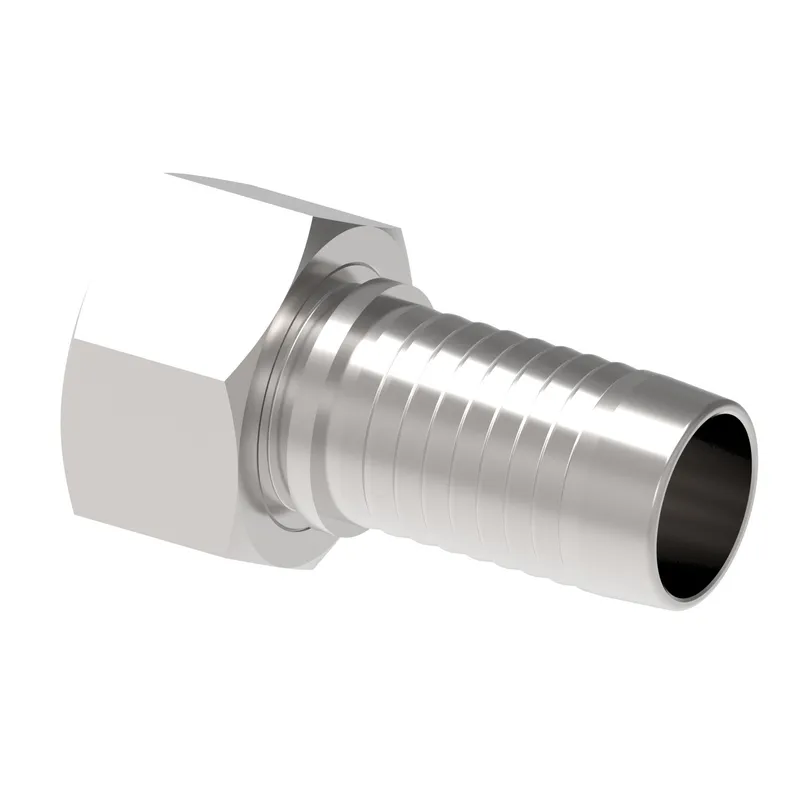

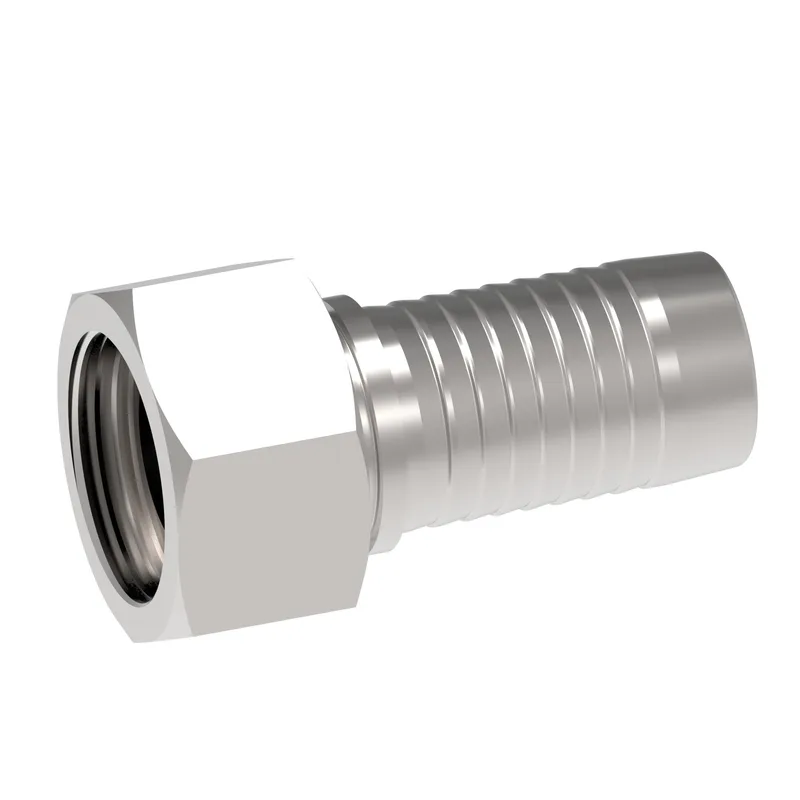

HOSE NIPPLE ASSY, 2P/32, BF/32, CS, STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 22111-32-32WZ be shipped?
22111-32-32WZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 22111-32-32WZ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 22111-32-32WZ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 22111-32-32WZ, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY, 2P/32, BF/32, CS, STR, manufacturer part number 22111-32-32WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 4.290 |
| A dimension MM | 109.000 |
| Angle shape | Straight |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 2.250 |
| Compatible hose ID MM | 57.100 |
| Compatible hoses | EC110, EC210, FC686, FC687, GH663, GH781, GH793 |
| Construction Style | Crimp |
| End size 1 | -32 |
| End Type 1 | Female BSPP swivel |
| Finish plating | Zinc plating |
| Hex size 2 IN | 2.750 |
| Hex size 2 MM | 69.850 |
| Hose cut off factor IN | 1.450 |
| Hose cut off factor MM | 37.000 |
| Hose size | -32 |
| Inside diameter IN | 1.690 |
| Inside diameter MM | 43.000 |
| Product height in | 3.180 |
| Product height mm | 80.772 |
| Product length in | 4.890 |
| Product length mm | 124.206 |
| Product material | Carbon steel |
| Product width in | 2.760 |
| Product width mm | 70.104 |
| Series | Winner 2-Piece |
| Thread sealant | No |
| Thread size 1 | G 2 |
More Danfoss (Drives) parts

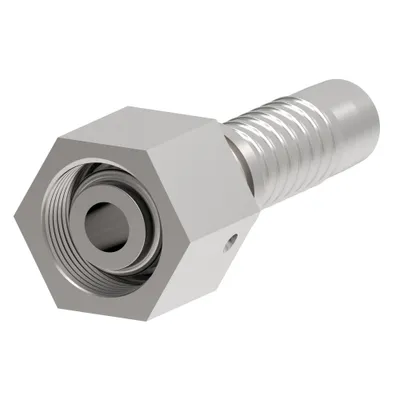

Available on requestHOSE NIPPLE ASSY, 2P/10, BF/12, CS, STR
