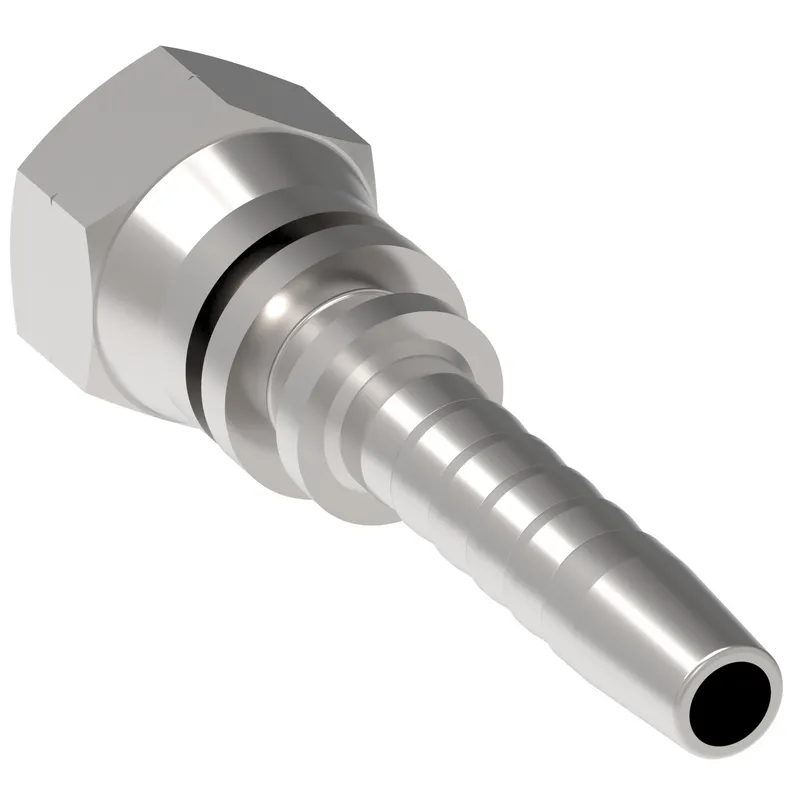

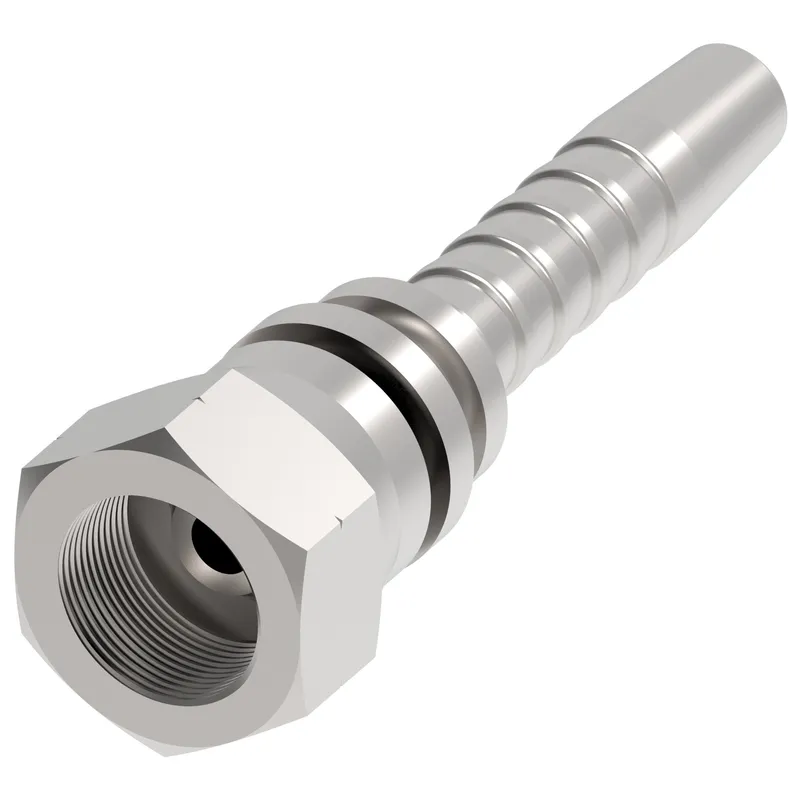

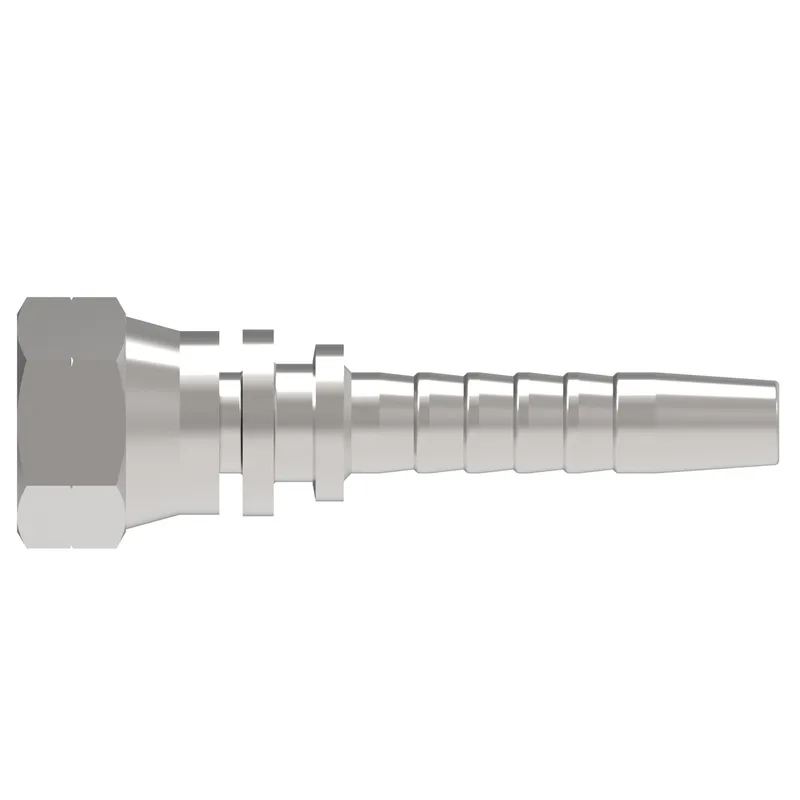

Danfoss 22111-06-06Z

HOSE NIPPLE ASSY, 2P/06, BF/06, CS, STR

MPN: 22111-06-06Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22111-06-06Z?

Danfoss HOSE NIPPLE ASSY, 2P/06, BF/06, CS, STR, manufacturer part number 22111-06-06Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.980
A dimension MM	50.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Compatible hoses	EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction Style	Crimp
End connection torque	33-40 lb-ft(45-55 Nm)
End size 1	-6
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 2 IN	0.866
Hex size 2 MM	21.996
Hose cut off factor IN	0.800
Hose cut off factor MM	20.500
Hose size	-6
Inside diameter IN	0.280
Inside diameter MM	7.000
Product height in	1.000
Product height mm	25.400
Product length in	2.190
Product length mm	55.626
Product material	Carbon steel
Product width in	0.870
Product width mm	22.098
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	G 3/8
