Danfoss 21611Y-12-12CNZ – FITTING-NIPPLE
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 21611Y-12-12CNZ be shipped?
21611Y-12-12CNZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 21611Y-12-12CNZ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 21611Y-12-12CNZ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 21611Y-12-12CNZ, subject to availability and destination.

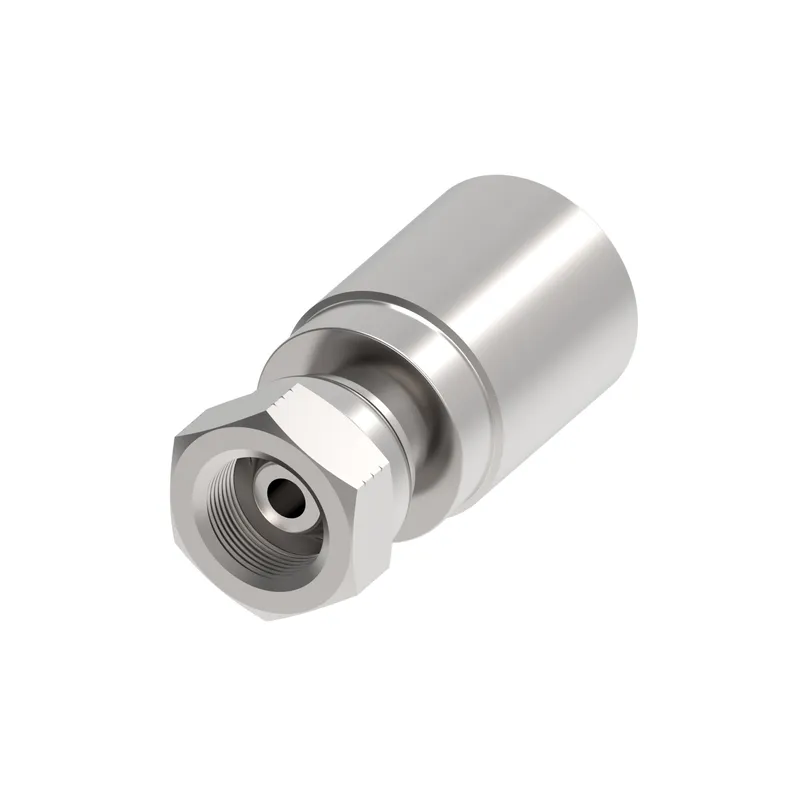

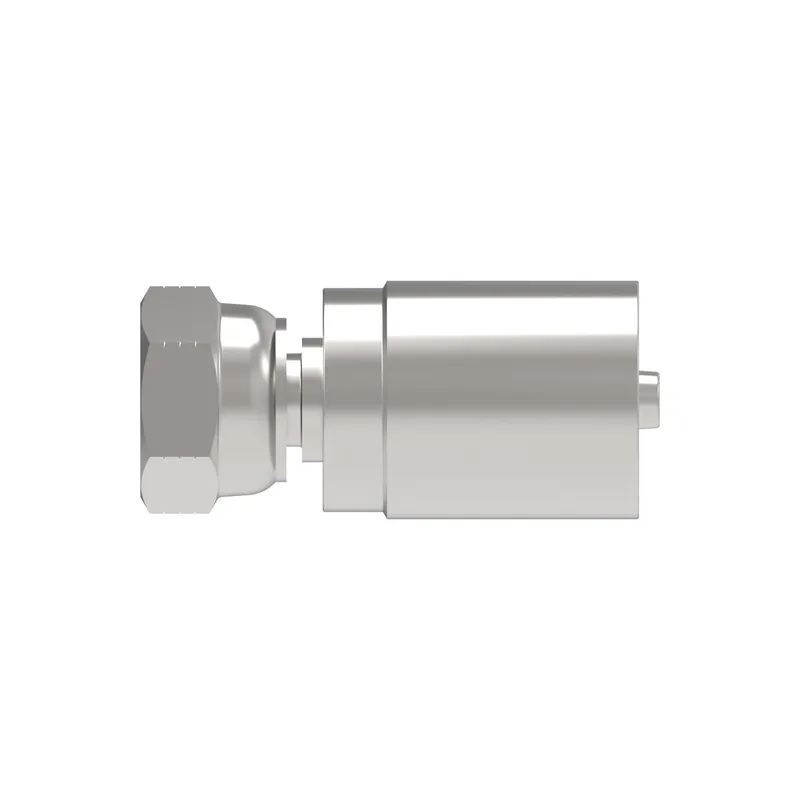

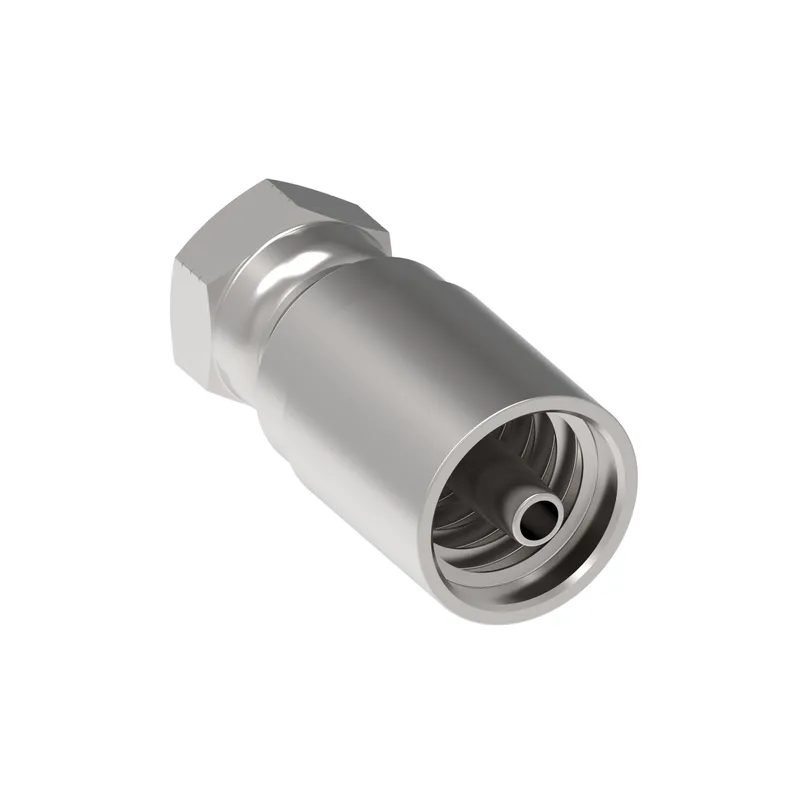

Danfoss FITTING-NIPPLE, manufacturer part number 21611Y-12-12CNZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension MM | 177.400 |
| Angle shape | 90 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.750 |
| Compatible hose ID MM | 19.050 |
| Construction Style | Crimp |
| Drop dimension IN | 4.250 |
| Drop dimension MM | 108.00 |
| End size 1 | -12 |
| End Type 1 | Female pipe swivel (NPSM) |
| Hex size 1 IN | 1.250 |
| Hex size 1 MM | 31.750 |
| Hose cut off factor IN | 4.300 |
| Hose cut off factor MM | 109.400 |
| Hose size | -12 |
| Inside diameter IN | 1.250 |
| Inside diameter MM | 32.000 |
| Product height in | 1.440 |
| Product height mm | 36.576 |
| Product length in | 1.290 |
| Product length mm | 32.766 |
| Product material | Carbon steel |
| Product width in | 1.250 |
| Product width mm | 31.75 |
| Thread sealant | No |
More Danfoss (Drives) parts
Available on requestHOSE NIPPLE, 2P/32, SP/32, CS, STR
Available on requestFITTING-NIPPLE
Available on requestFITTING-NIPPLE
Available on requestFITTING-NIPPLE
Available on requestADAPTER,1/4 QCAB X M12 ADAPTER,1/4 QCAB
Available on requestELBOW, 45, -04, COMPOSITE QCAB ASSY

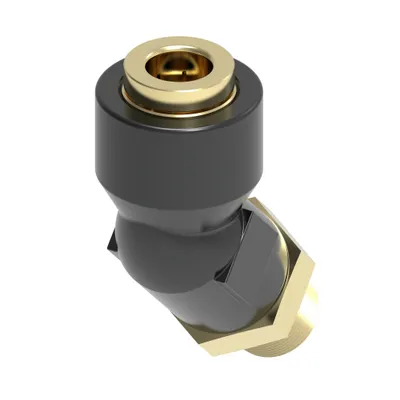

Available on requestELBOW, 45, -06, COMPOSITE QCAB ASSY
