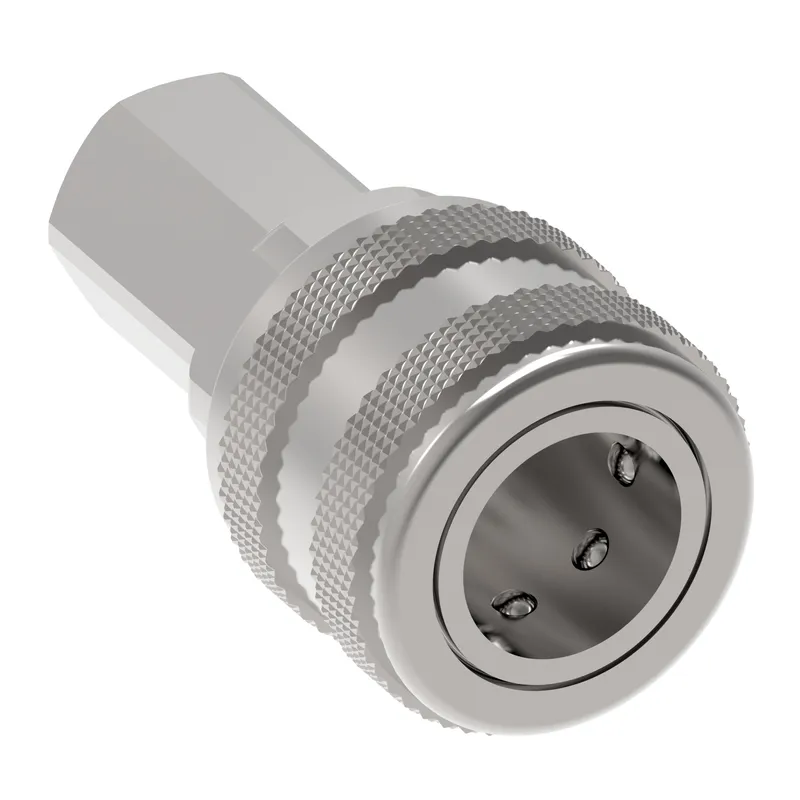

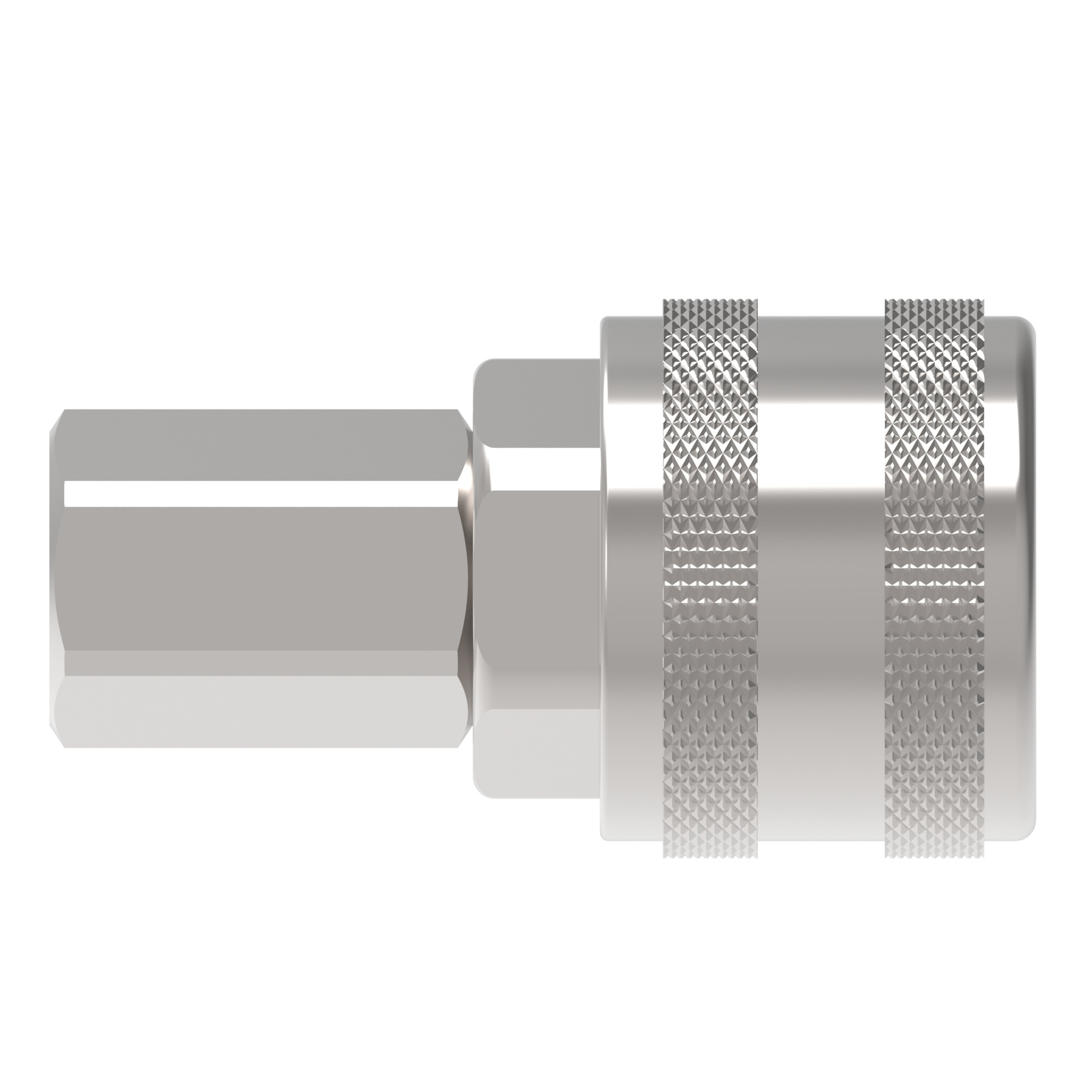

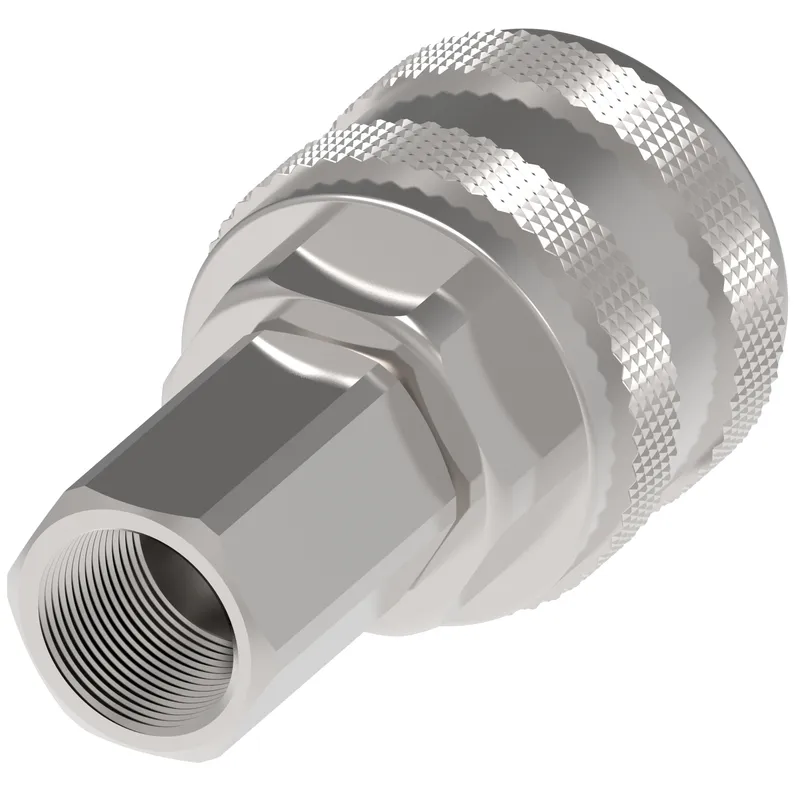

Cplng, 210 SERIES FEMALE, STEEL

Name: Cplng, 210 SERIES FEMALE, STEEL
Brand: Danfoss (Drives)
SKU: 210FG

MPN: 210FG · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Danfoss Hansen® quick disconnect couplings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 210FG be shipped?

210FG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 210FG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 210FG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 210FG, subject to availability and destination.

Danfoss Cplng, 210 SERIES FEMALE, STEEL, manufacturer part number 210FG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146197658
Angle shape	Straight
Body size	1/4
Burst pressure min bar	69
Burst pressure min psi	1000
Connection style	Manual connect
End size 2	-4
End type 1	Female Push to Connect
End type 2	Female BSPP swivel
Finish plating	Zinc
Flow rate GPM	142.00
Flow rate LPM	537.53
Fluid compatibility	Compressed air, Gases and liquids
Hex size 1 IN	0.690
Hex size 1 MM	17.526
Item type	Female half
Latch type	Push/pull
Product material	Carbon steel
Safety locking mechanism	Pin lock
Seal material	Nitrile (NBR)
Thread size 2	G 1/4
Valve type	2 way
Working pressure max psi	250
Working pressure max BAR	17
Working temperature max C	93
Working temperature max F	200
Working temperature min C	-40
Working temperature min F	-40
