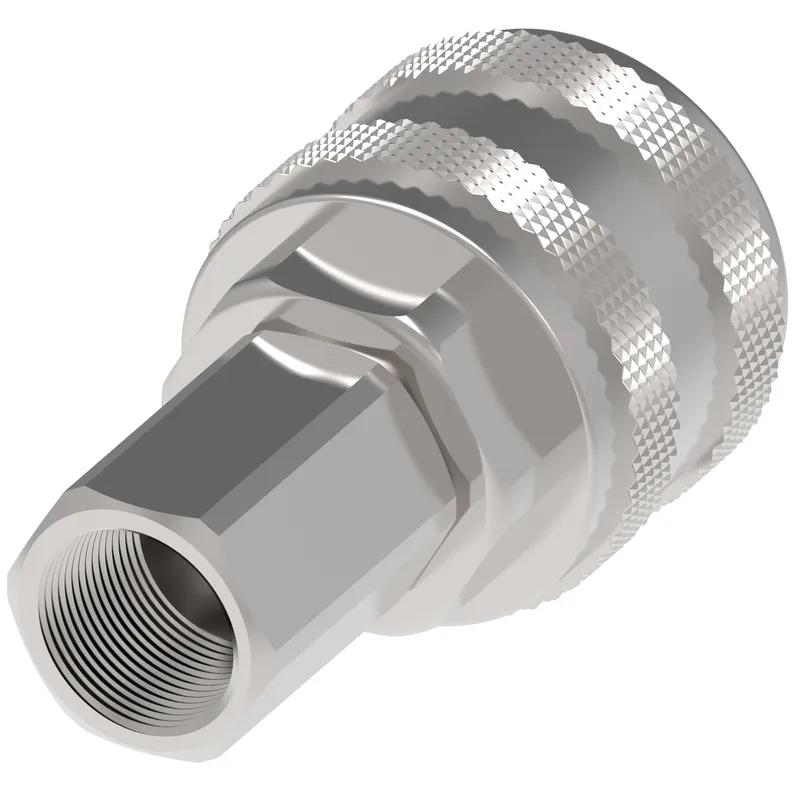

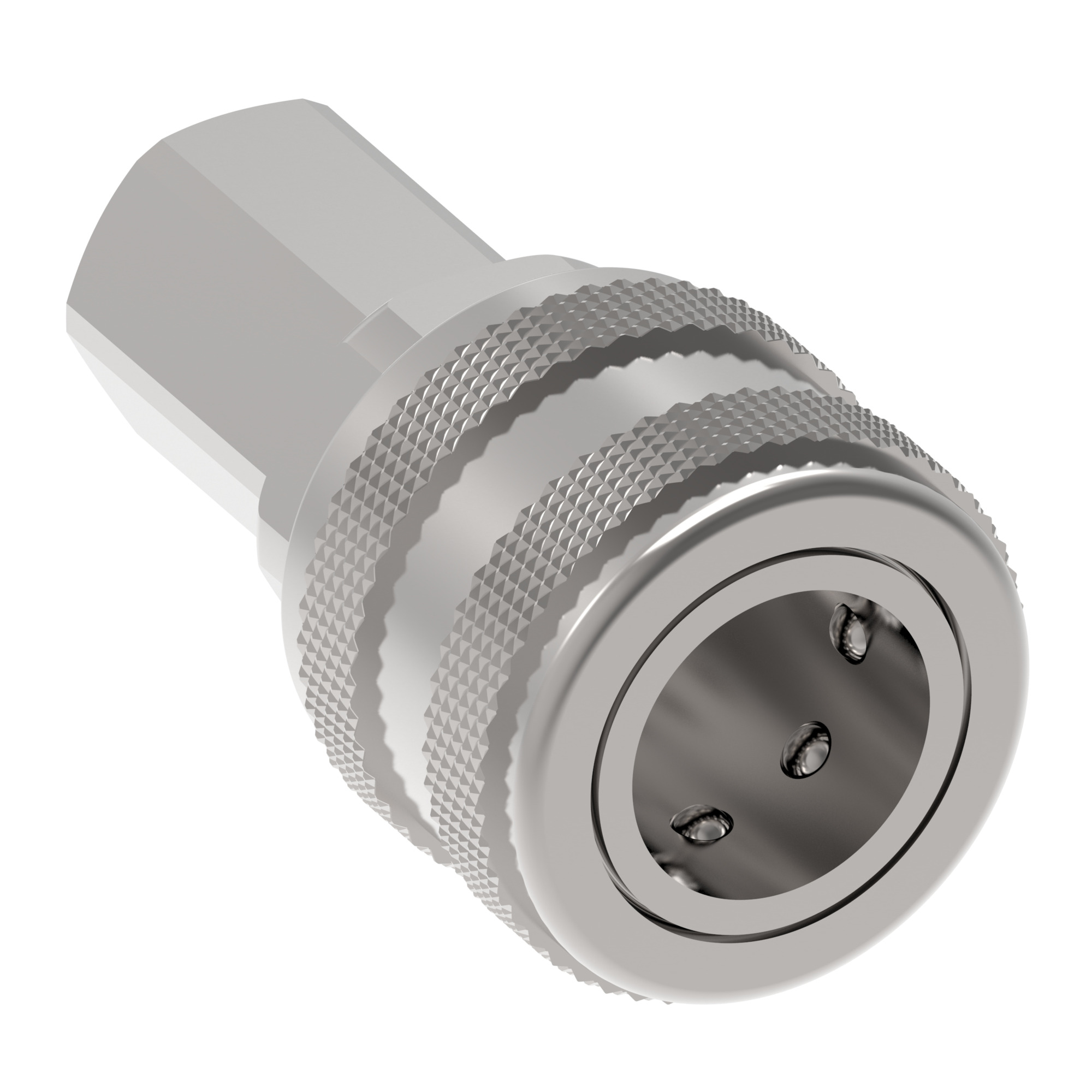

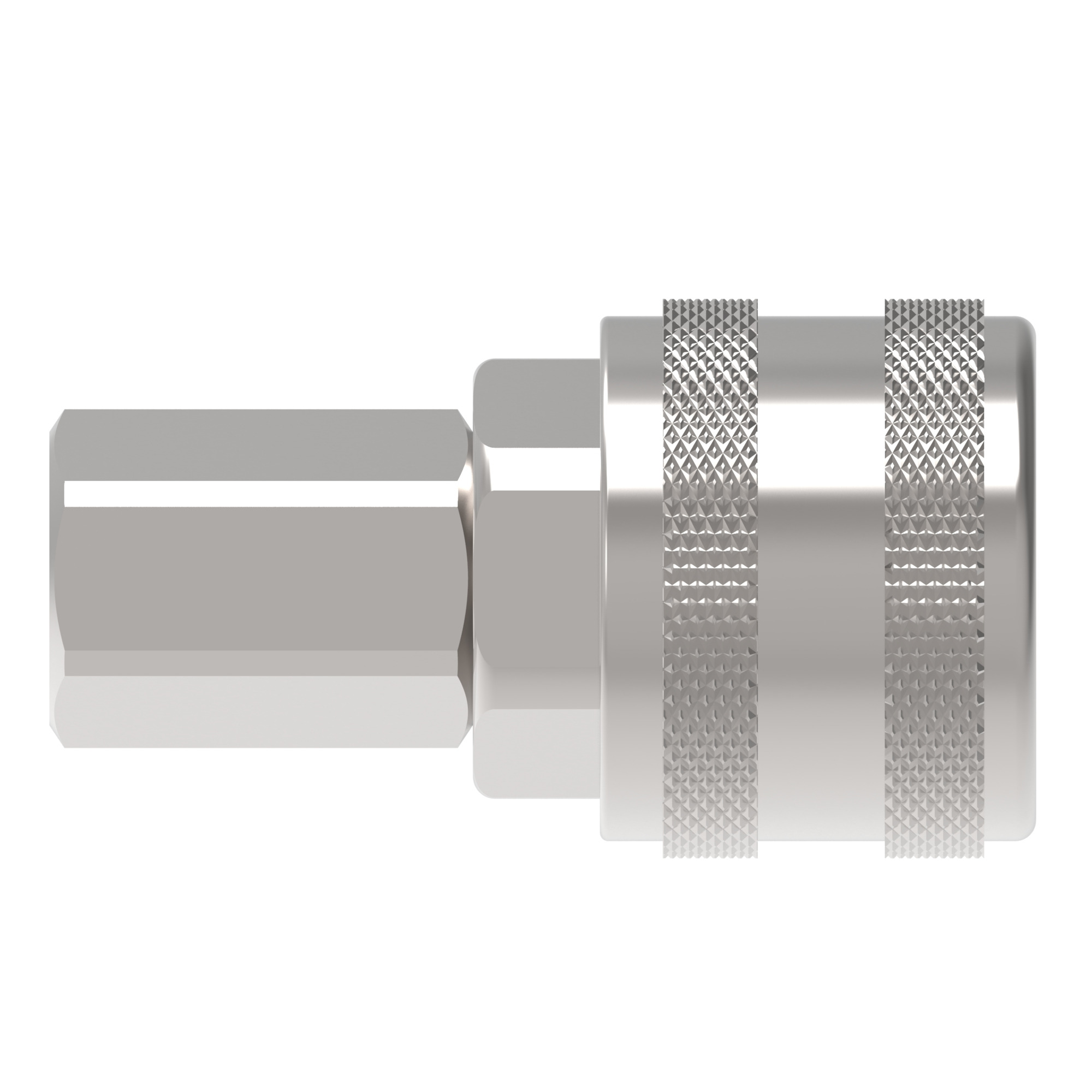

Danfoss 210

COUPLING, ,F,1/4,CS,-4NPT

MPN: 210
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 210?

Danfoss COUPLING,210,F,1/4,CS,-4NPT, manufacturer part number 210. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789348197
Angle shape	Straight
Application	Construction, In-plant/Industrial, Maintenance and repair, Pneumatic tools
Body size	1/4
Burst pressure min bar	69
Burst pressure min psi	1000
Connection style	Manual connect
End size 2	-4
End type 1	Female Push to Connect
End type 2	Female pipe (NPTF)
Finish plating	Zinc
Flow rate GPM	142.00
Flow rate LPM	537.53
Fluid compatibility	Compressed air, Gases and liquids
Hex size 1 IN	0.690
Hex size 1 MM	17.526
Item type	Female half
Latch type	Push/pull
Product height in	1.020
Product height mm	25.908
Product length in	1.870
Product length mm	47.498
Product material	Carbon steel
Product width in	1.020
Product width mm	25.908 mm
Safety locking mechanism	Pin lock
Seal material	Nitrile (NBR)
Valve type	2 way
Working pressure max psi	250
Working pressure max BAR	17
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
