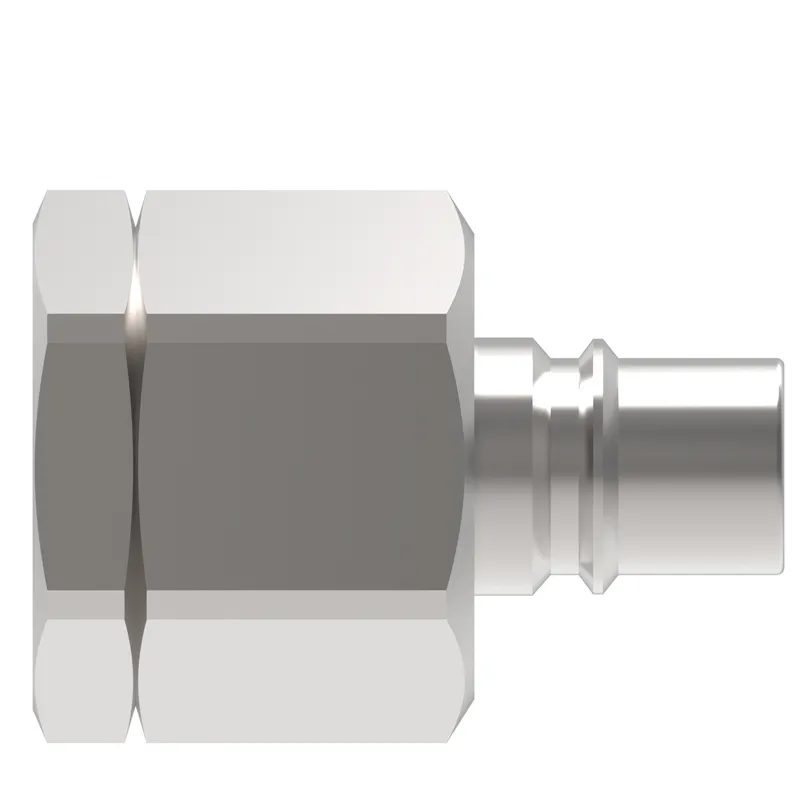

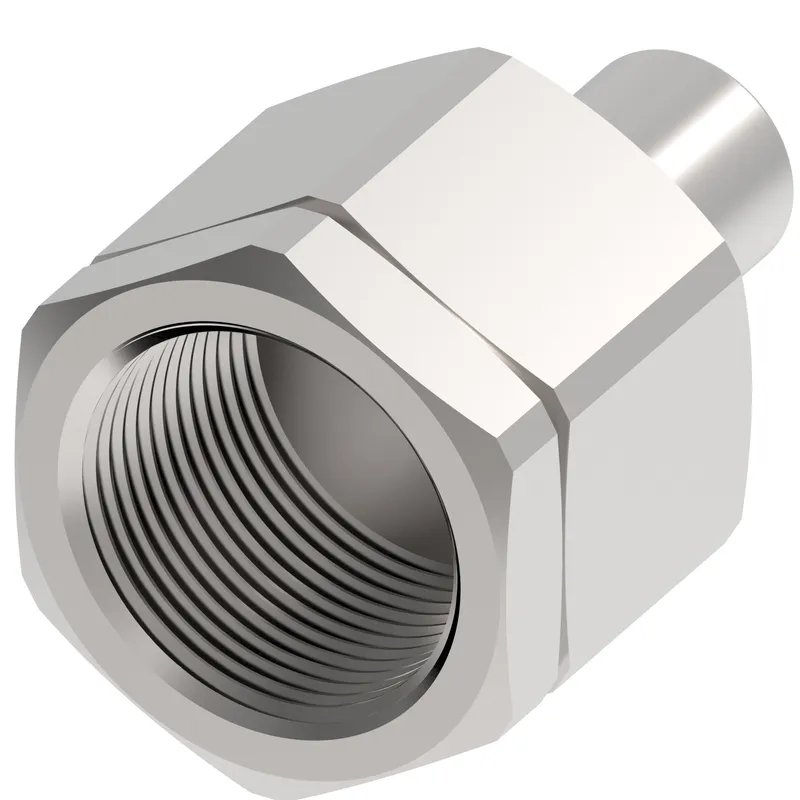

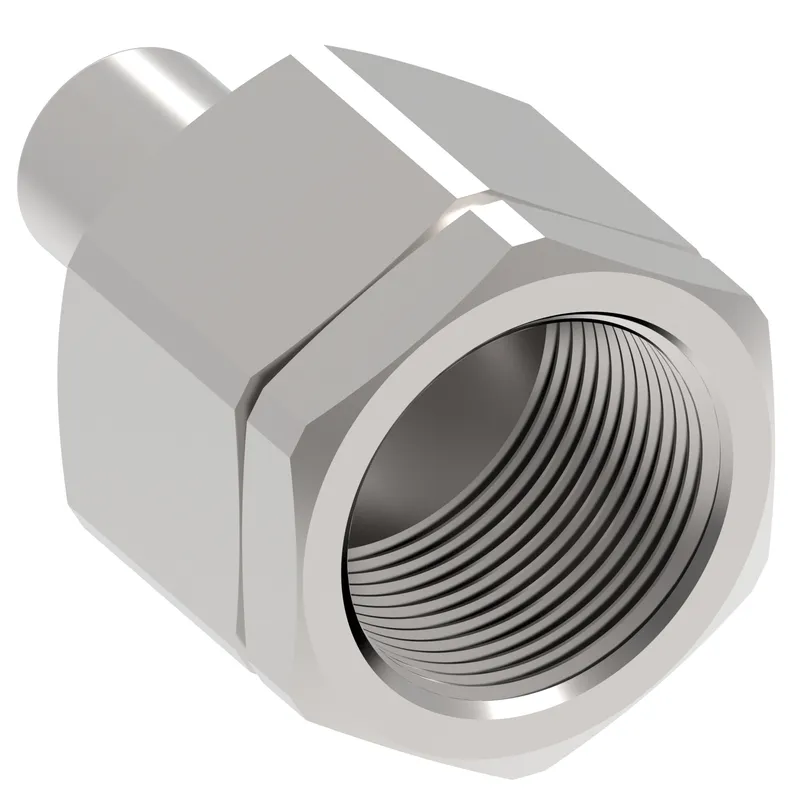

COUPLING,HK,M,2"1/2,CS,-40BSP,NBR

Name: COUPLING,HK,M,2"1/2,CS,-40BSP,NBR
Brand: Danfoss (Drives)
SKU: 20K56BS

MPN: 20K56BS · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Danfoss Hansen® quick disconnect couplings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 20K56BS be shipped?

20K56BS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20K56BS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20K56BS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20K56BS, subject to availability and destination.

Danfoss COUPLING,HK,M,2"1/2,CS,-40BSP,NBR, manufacturer part number 20K56BS. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Air inclusion max cc	9.90
Angle shape	Straight
Application	Aerospace, Agriculture, Chemical, Construction, Consumer products, Fluid transfer, Food and beverage, General industry, Hvac, Hydraulics, Law enforcement/rescue, Medical, Military, Oil and gas, Transportation, Trucks
Body size	2 1/2"
Brand	Danfoss
Connection style	Manual connect
End size 1	-40
End type 1	Female BSPP port washer seal.
Finish plating	Zinc trivalent
Flow rate GPM	200.00
Fluid compatibility	Hydraulic service
Fluid loss cc	209.90000
Hex size 1 IN	3.750
Item type	Male half
Latch type	Push/pull
Product material	Carbon steel
Safety locking mechanism	None
Seal material	Nitrile (NBR)
Sub brand	Hansen
Thread size 1	G 2 1/2
Valve type	2 way
Working pressure max psi	305
Working temperature max F	250
Working temperature min F	-40
