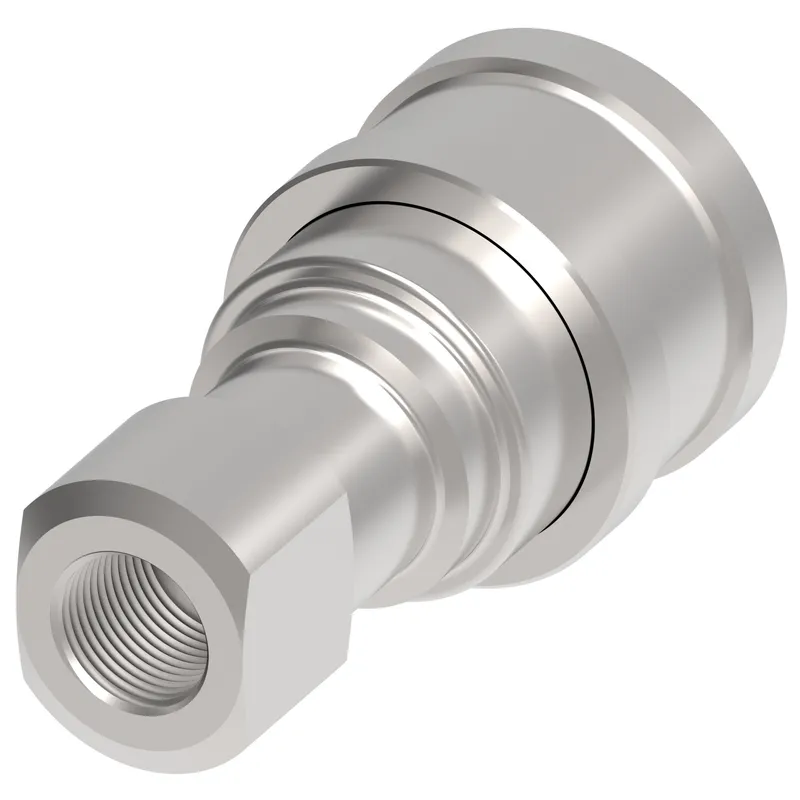

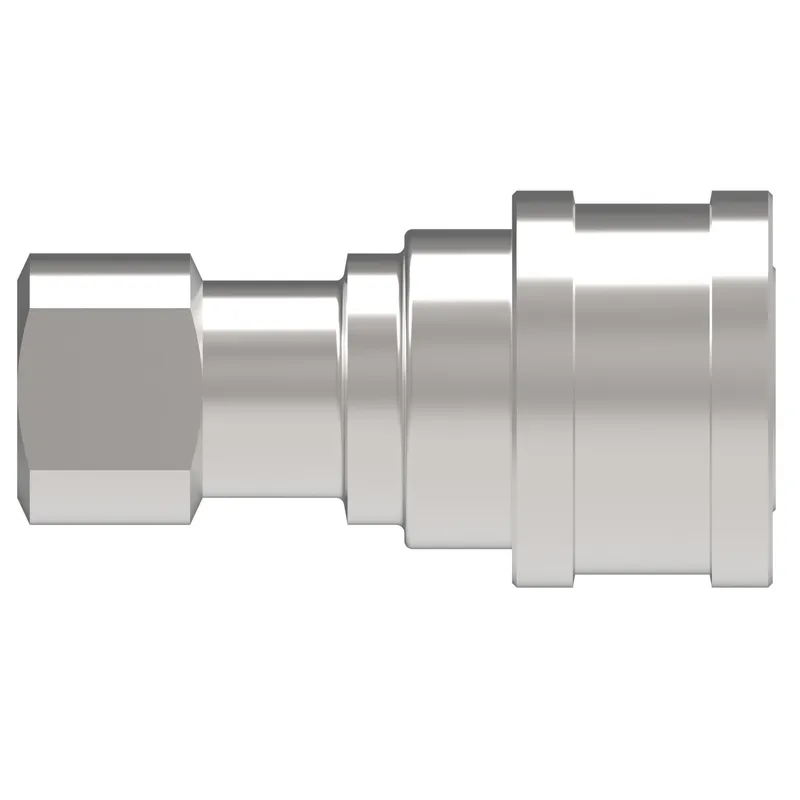

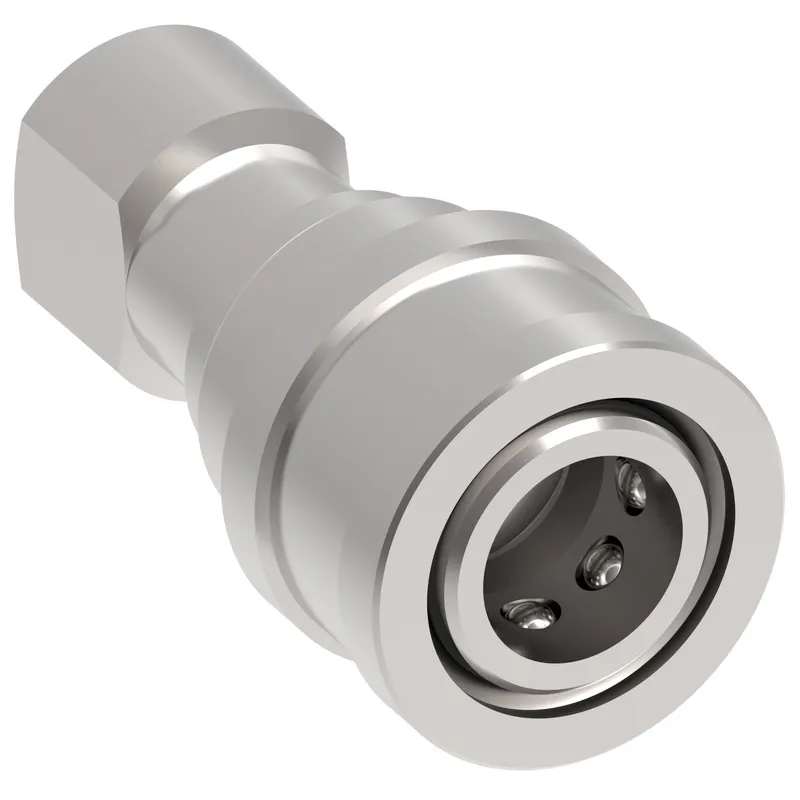

Danfoss 20H56BS

COUPLING,HK,F,2"1/2,CS,-40BSP,NBR

MPN: 20H56BS
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20H56BS?

Danfoss COUPLING,HK,F,2"1/2,CS,-40BSP,NBR, manufacturer part number 20H56BS. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Air inclusion max cc	9.90
Angle shape	Straight
Application	Aerospace, Agriculture, Chemical, Construction, Consumer products, Fluid transfer, Food and beverage, General industry, Hvac, Hydraulics, Law enforcement/rescue, Medical, Military, Oil and gas, Transportation, Trucks
Body size	2 1/2"
Brand	Danfoss
Connection style	Manual connect
End size 1	-40
End type 1	Female BSPP port washer seal.
Finish plating	Zinc trivalent
Flow rate GPM	200.00
Fluid compatibility	Hydraulic service
Fluid loss cc	209.90000
Hex size 1 IN	3.750
Item type	Female half
Latch type	Push/pull
Product material	Carbon steel
Safety locking mechanism	None
Seal material	Nitrile (NBR)
Sub brand	Hansen
Thread size 1	G 2 1/2
Valve type	2 way
Working pressure max psi	305
Working temperature max F	250
Working temperature min F	-40
