Danfoss 20AP37M

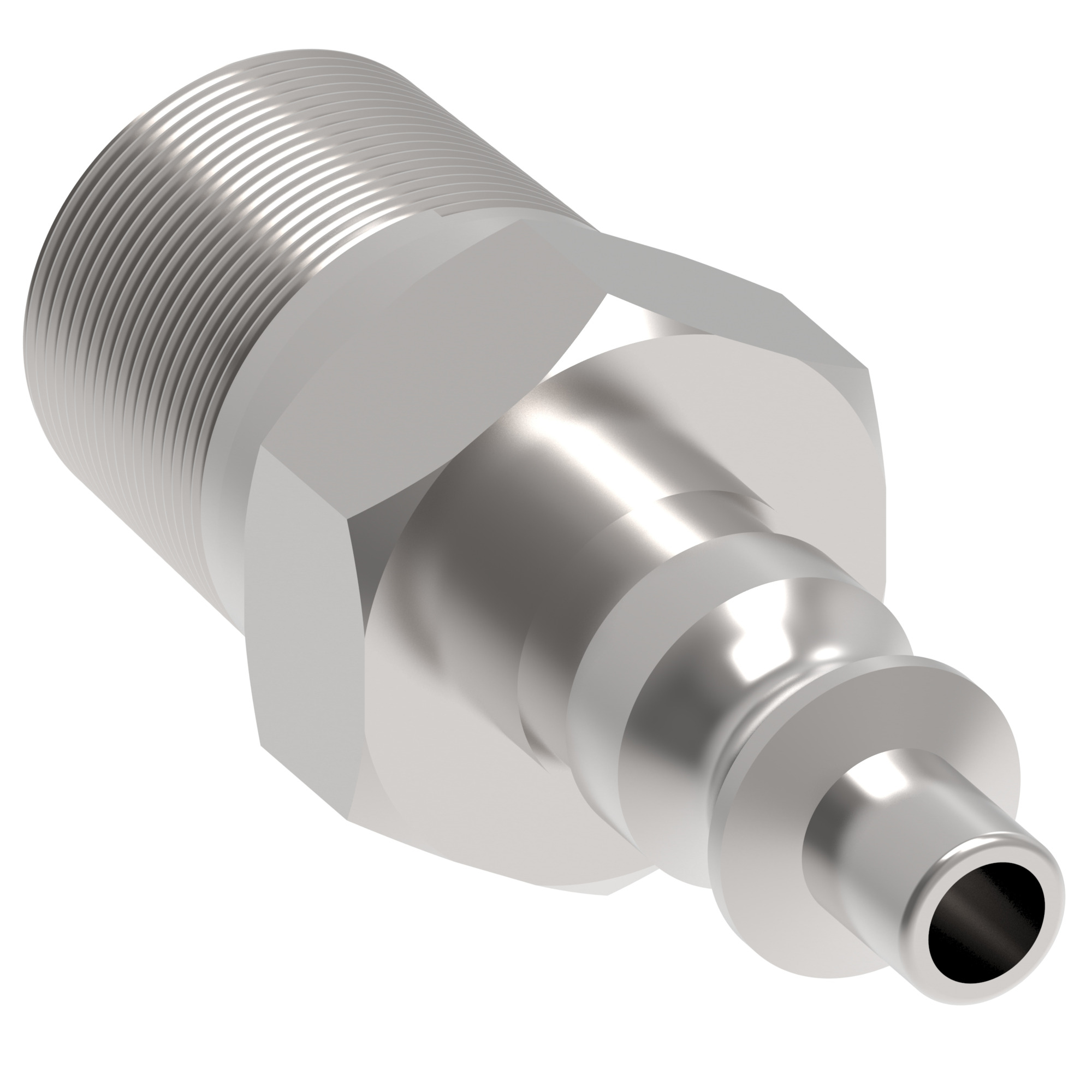

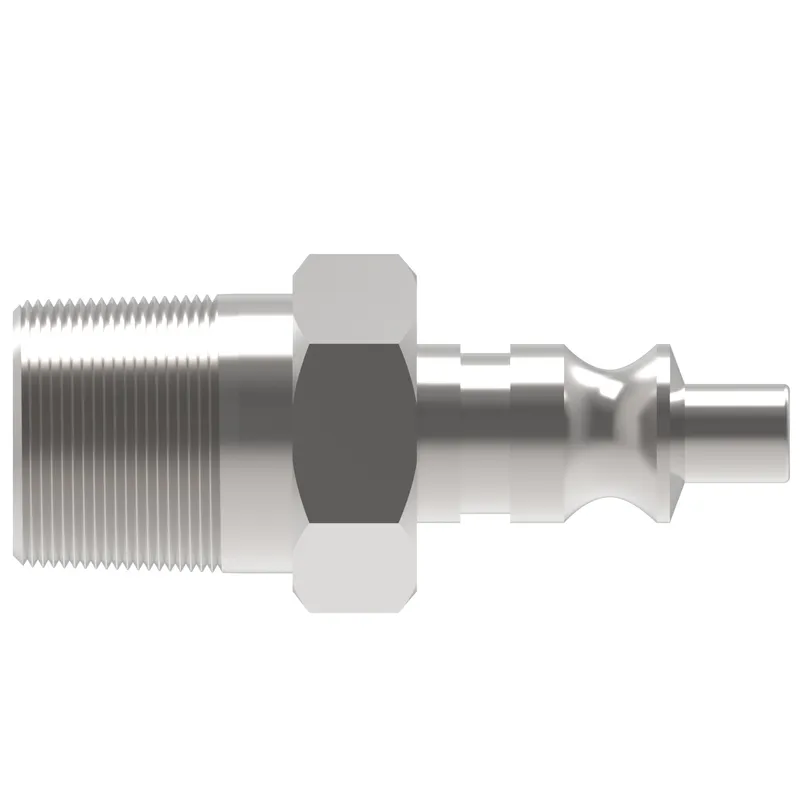

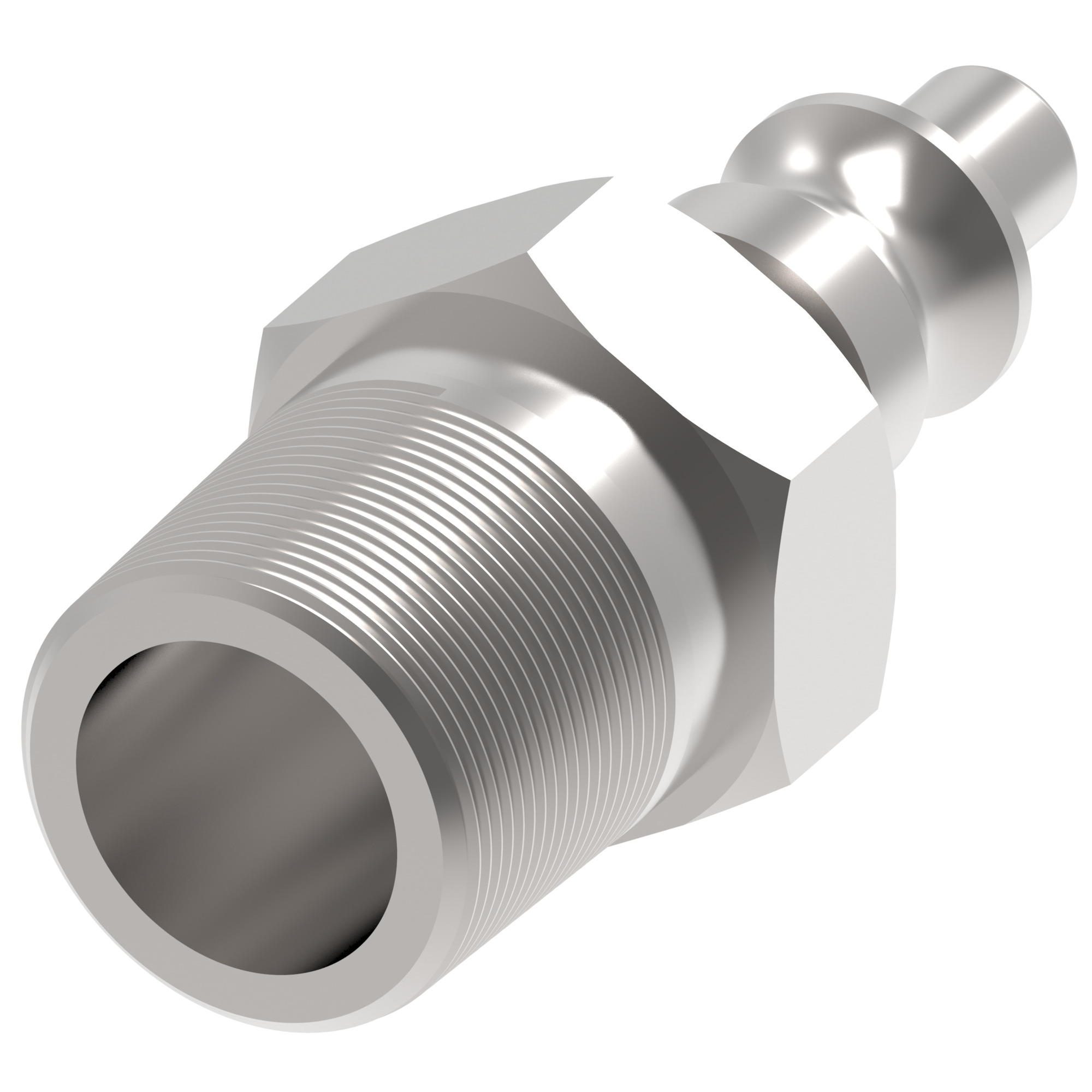

Cplng, AUTOFLO 23 SERIES MALE, STEEL

MPN: 20AP37M
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20AP37M?

Danfoss Cplng, AUTOFLO 23 SERIES MALE, STEEL, manufacturer part number 20AP37M. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146098795
Angle shape	Straight
Body size	1/4
Brand	Danfoss
Burst pressure min bar	41
Burst pressure min psi	600
Connection style	Automatic connect
End size 2	-6
End type 1	Male push to connect
End type 2	Male pipe (NPTF)
Finish plating	Zinc
Flow rate GPM	209.22
Flow rate LPM	791.98
Fluid compatibility	Compressed air
Hex size 1 IN	0.690
Hex size 1 MM	17.526
Item type	Male half
Latch type	Push/pull
Product length in	1.680
Product material	Carbon steel
Safety locking mechanism	Pin lock
Seal material	Nitrile (NBR)
Sub brand	Hansen
Working pressure max psi	150
Working pressure max BAR	10
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40

20AP37M: frequently asked questions

When can 20AP37M be shipped?

20AP37M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20AP37M in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20AP37M and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20AP37M, subject to availability and destination.
