Danfoss 20741Y-14-04Z

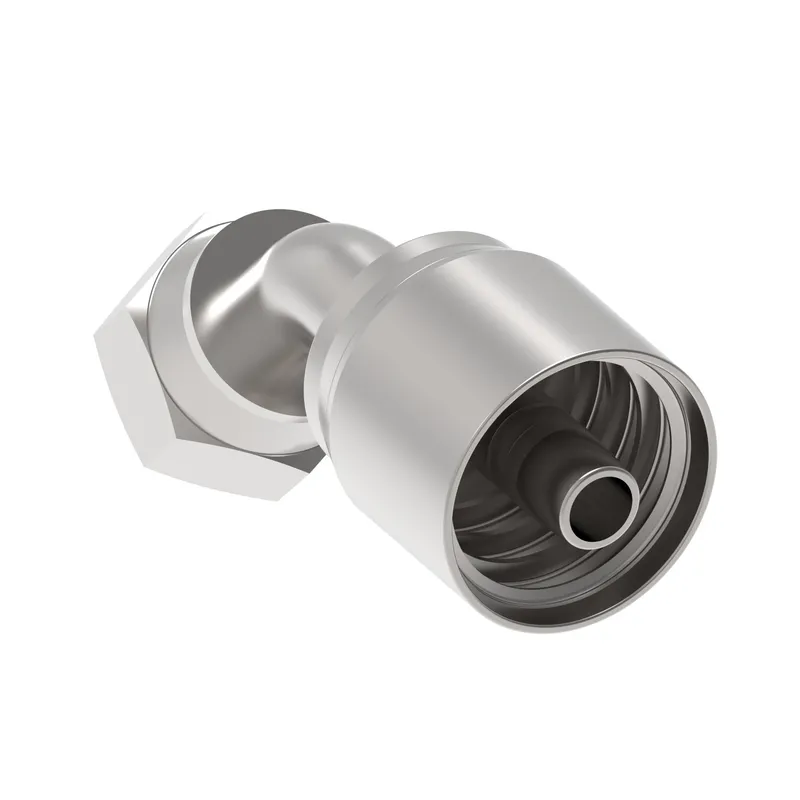

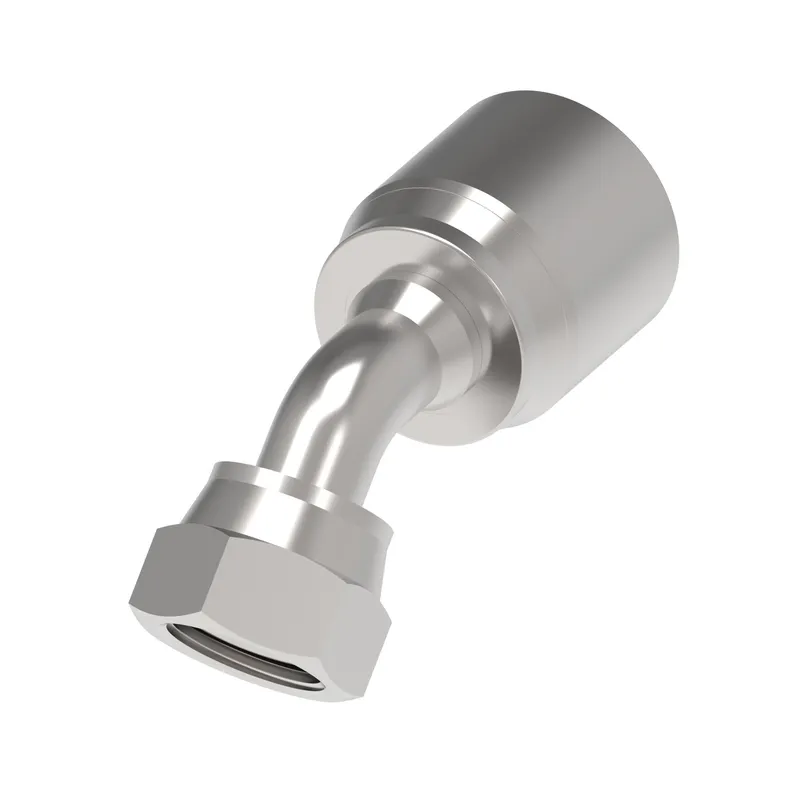

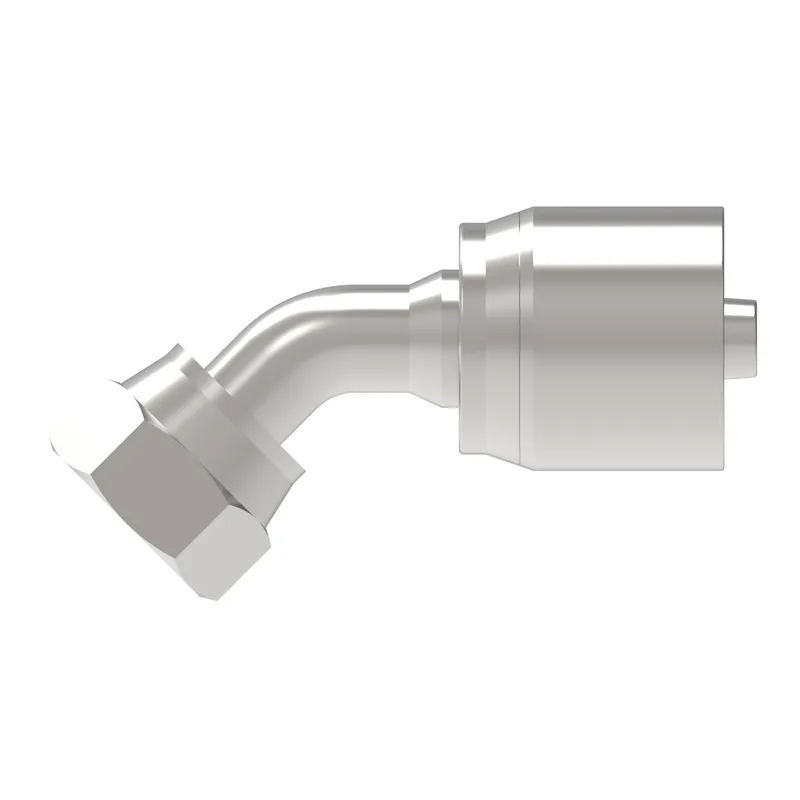

HOSE NIPPLE ASSY,1P/04,JIC-F/14,CS,45D

MPN: 20741Y-14-04Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20741Y-14-04Z?

Danfoss HOSE NIPPLE ASSY,1P/04,JIC-F/14,CS,45D, manufacturer part number 20741Y-14-04Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.700
A dimension MM	68.600
Angle shape	45 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
Drop dimension IN	0.720
Drop dimension MM	18.50
Finish plating	Zinc plating
Hex size 2 IN	0.748
Hex size 2 MM	18.999
Hose cut off factor IN	1.590
Hose cut off factor MM	40.600
Hose size	-4
Inside diameter IN	0.157
Inside diameter MM	4.000
Product height in	2.470
Product height mm	62.738
Product length in	3.540
Product length mm	89.916
Product material	Carbon steel
Product width in	0.897
Product width mm	22.783
Thread sealant	No
Thread size 1	M14x1.5

20741Y-14-04Z: frequently asked questions

When can 20741Y-14-04Z be shipped?

20741Y-14-04Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20741Y-14-04Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20741Y-14-04Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20741Y-14-04Z, subject to availability and destination.
