Danfoss 20711Y-64-32TZ

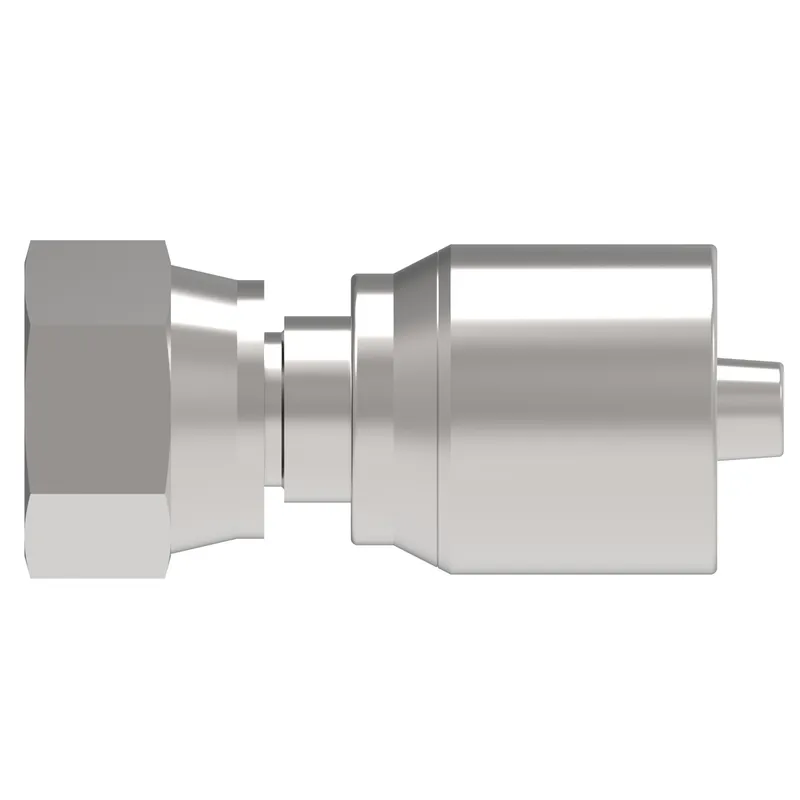

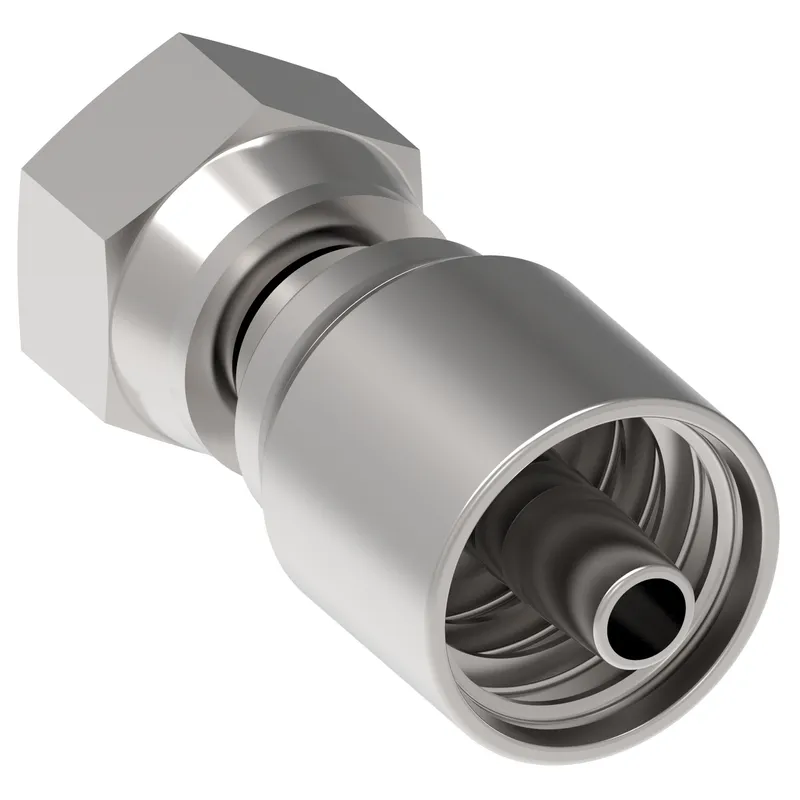

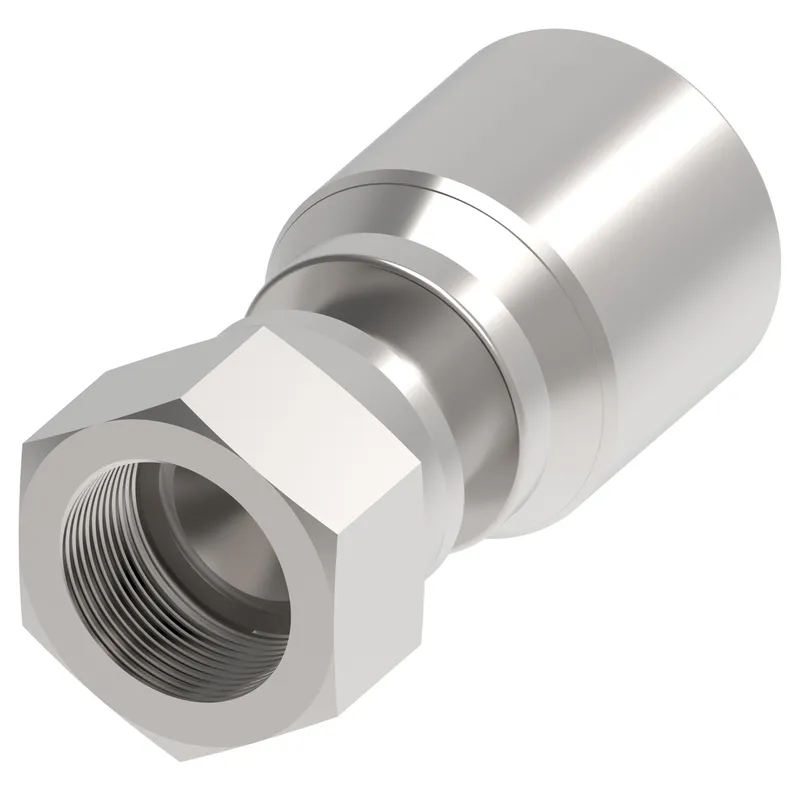

HOSE NIPPLE, 1P/32, JIC-F/64, CS, STR

MPN: 20711Y-64-32TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20711Y-64-32TZ?

Danfoss HOSE NIPPLE, 1P/32, JIC-F/64, CS, STR, manufacturer part number 20711Y-64-32TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.850
A dimension MM	98.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	2.250
Compatible hose ID MM	57.100
Construction Style	Crimp
Finish plating	Zinc plating
Hex size 1 IN	2.950
Hex size 1 MM	74.930
Hose cut off factor IN	1.020
Hose cut off factor MM	26.000
Hose size	-32
Inside diameter IN	1.690
Inside diameter MM	43.000
Product height in	3.400
Product height mm	86.360
Product length in	3.858
Product length mm	97.993
Product material	Carbon steel
Product width in	2.950
Product width mm	74.93
Thread sealant	No
