Danfoss 20711-39-16TZ

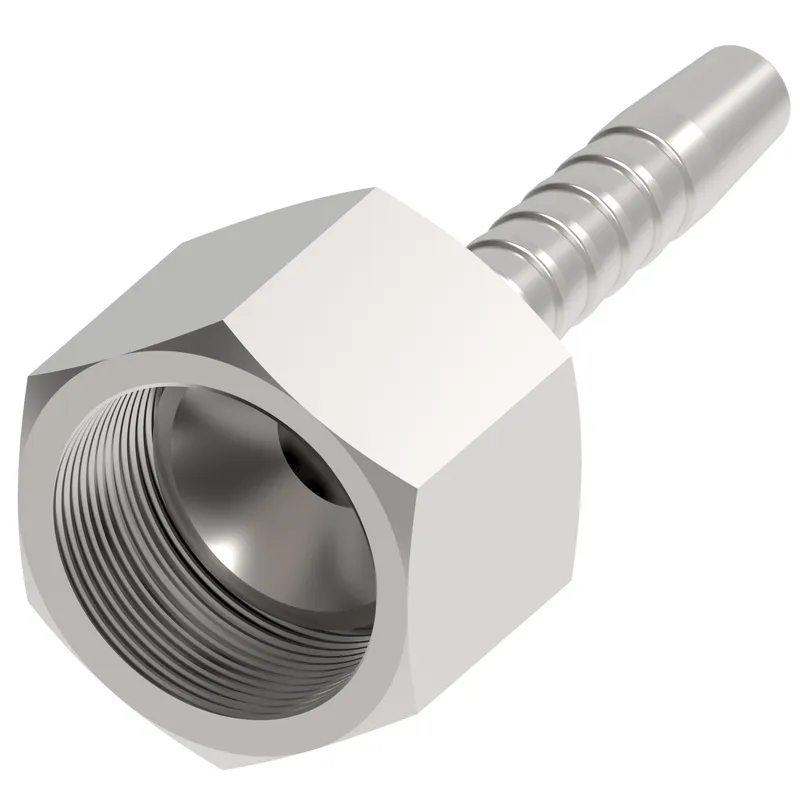

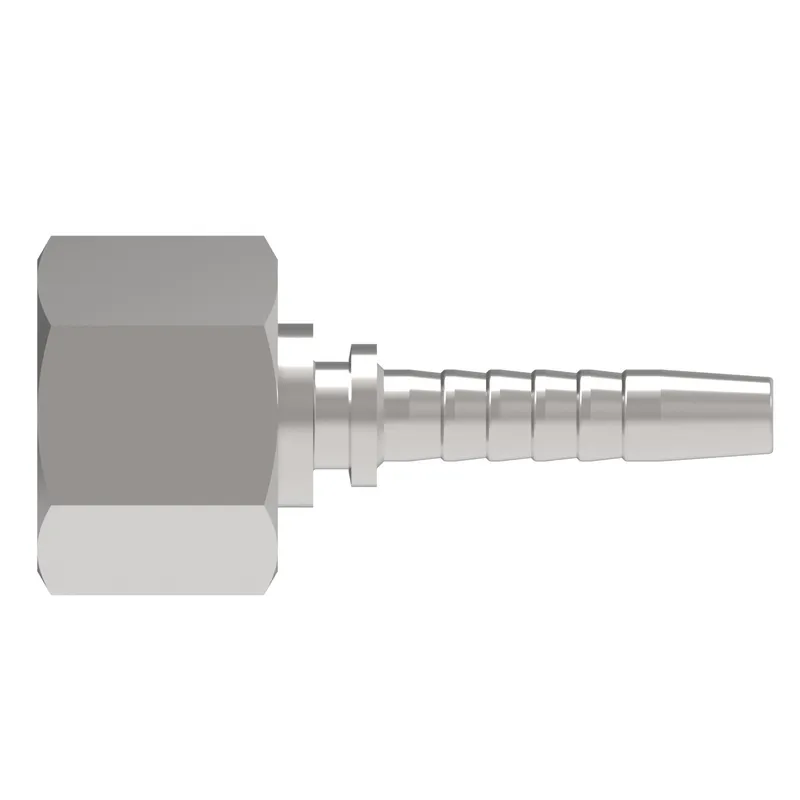

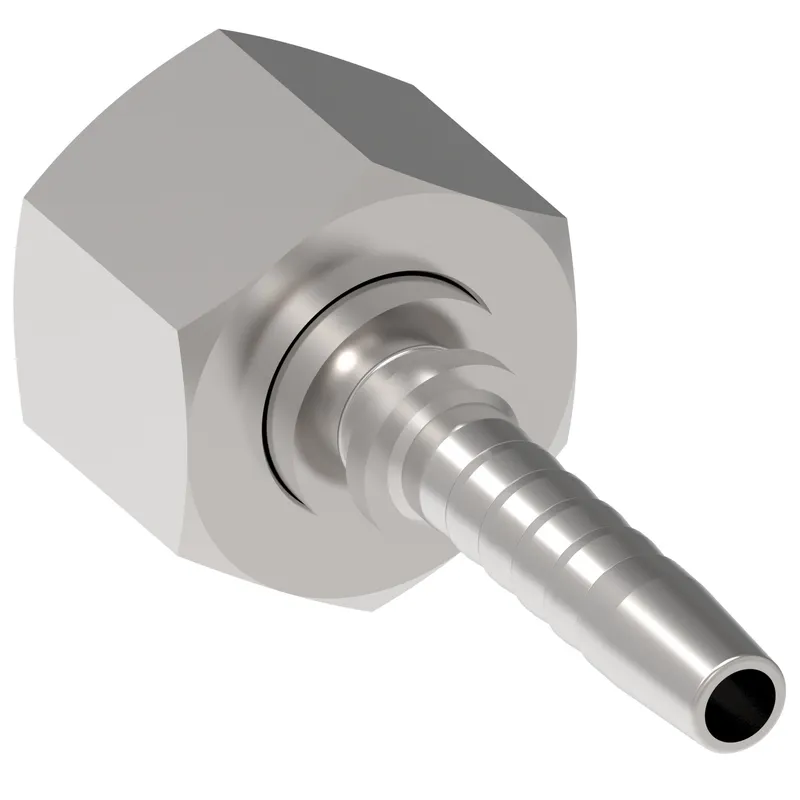

HOSE NIPPLE ASSY,2P/16,MJIC-F/36,CS,STR

MPN: 20711-39-16TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20711-39-16TZ?

Danfoss HOSE NIPPLE ASSY,2P/16,MJIC-F/36,CS,STR, manufacturer part number 20711-39-16TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.770
A dimension MM	70.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
Finish plating	Zinc plating
Hex size 1 IN	1.800
Hex size 1 MM	45.720
Hose cut off factor IN	0.920
Hose cut off factor MM	23.500
Hose size	-16
Inside diameter IN	0.820
Inside diameter MM	21.000
Product height in	2.070
Product height mm	52.578
Product length in	2.776
Product length mm	70.510
Product material	Carbon steel
Product width in	1.800
Product width mm	45.72
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M36x2

20711-39-16TZ: frequently asked questions

When can 20711-39-16TZ be shipped?

20711-39-16TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20711-39-16TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20711-39-16TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20711-39-16TZ, subject to availability and destination.
