Danfoss 20611-12-04Z

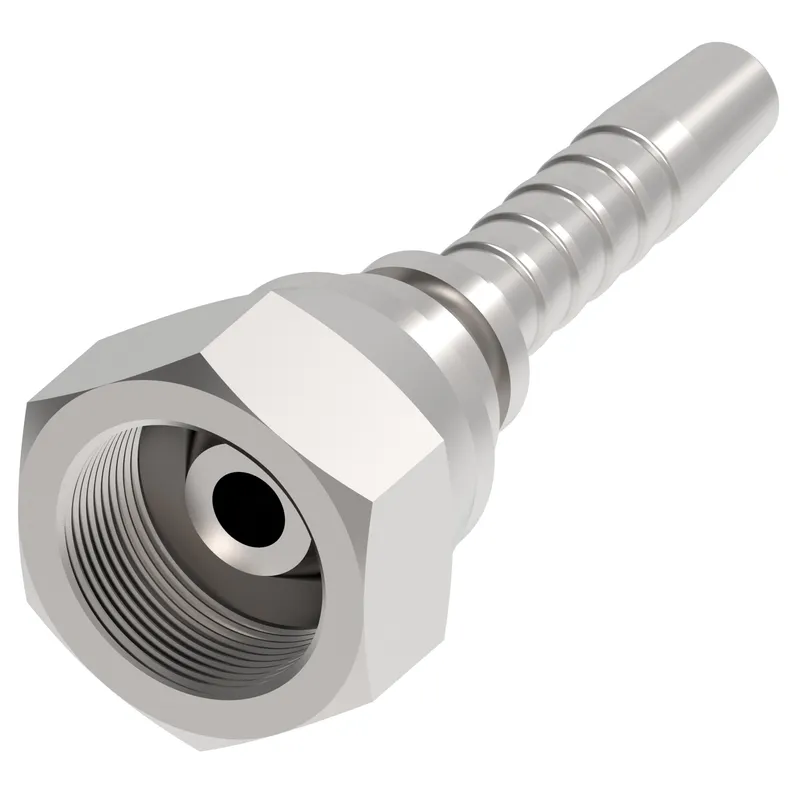

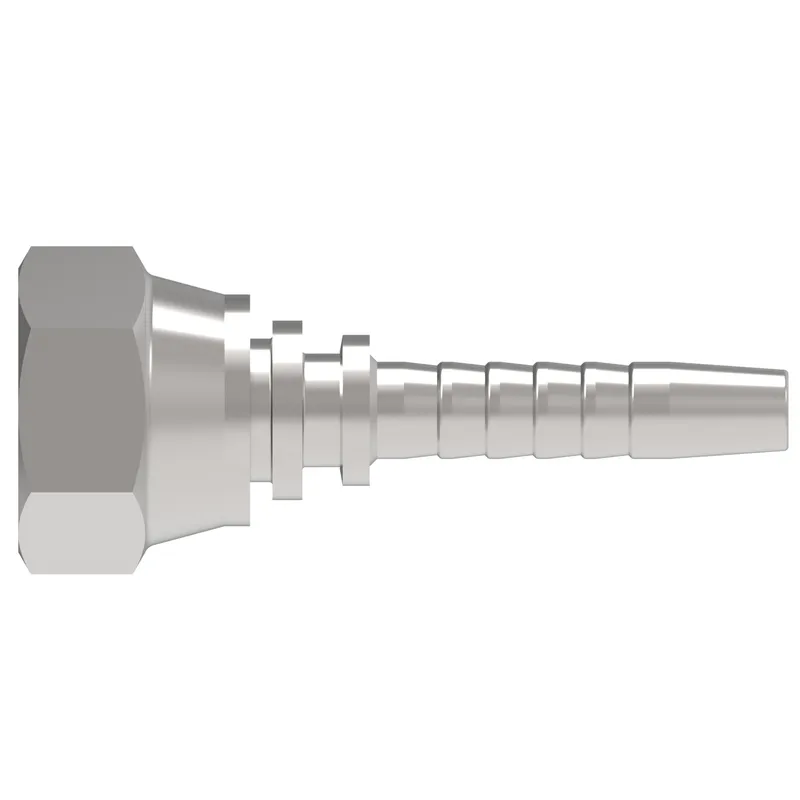

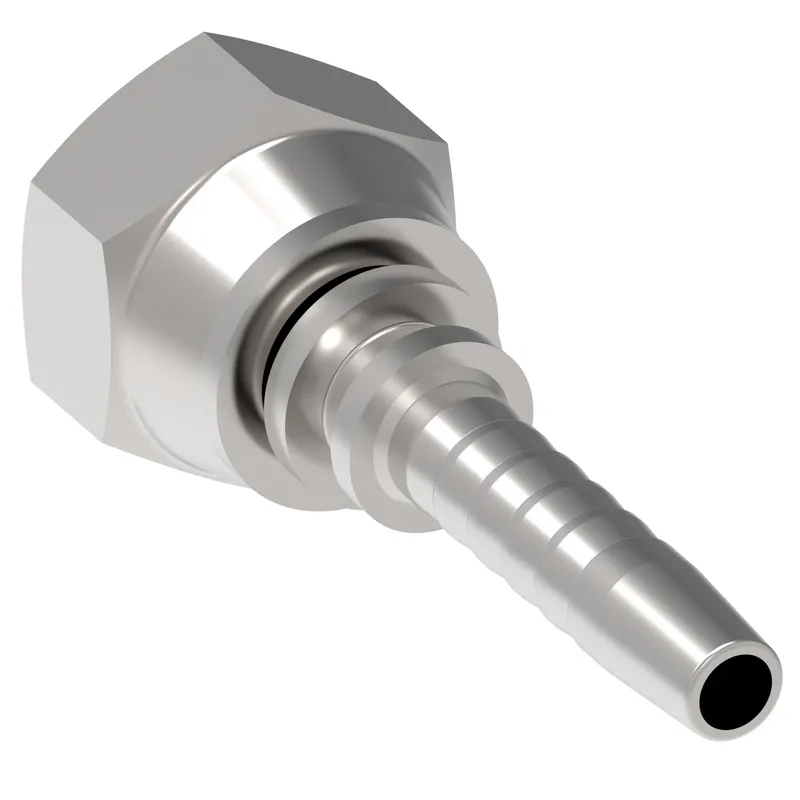

HOSE NIPPLE ASSY,2P/04,M60D-F/12,CS,STR

MPN: 20611-12-04Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20611-12-04Z?

Danfoss HOSE NIPPLE ASSY,2P/04,M60D-F/12,CS,STR, manufacturer part number 20611-12-04Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.830
A dimension MM	46.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
Finish plating	Zinc plating
Hex size 1 IN	0.000
Hex size 1 MM	0.000
Hex size 2 IN	0.669
Hex size 2 MM	16.993
Hose cut off factor IN	0.728
Hose cut off factor MM	18.500
Hose size	-4
Inside diameter IN	0.157
Inside diameter MM	4.000
Product height in	0.772
Product height mm	19.608
Product length in	2.007
Product length mm	50.977
Product material	Carbon steel
Product width in	0.669
Product width mm	16.992
Series	Winner 2-Piece
Thread sealant	No
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

20611-12-04Z: frequently asked questions

When can 20611-12-04Z be shipped?

20611-12-04Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20611-12-04Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20611-12-04Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20611-12-04Z, subject to availability and destination.
