Danfoss 20591-42-20WZ

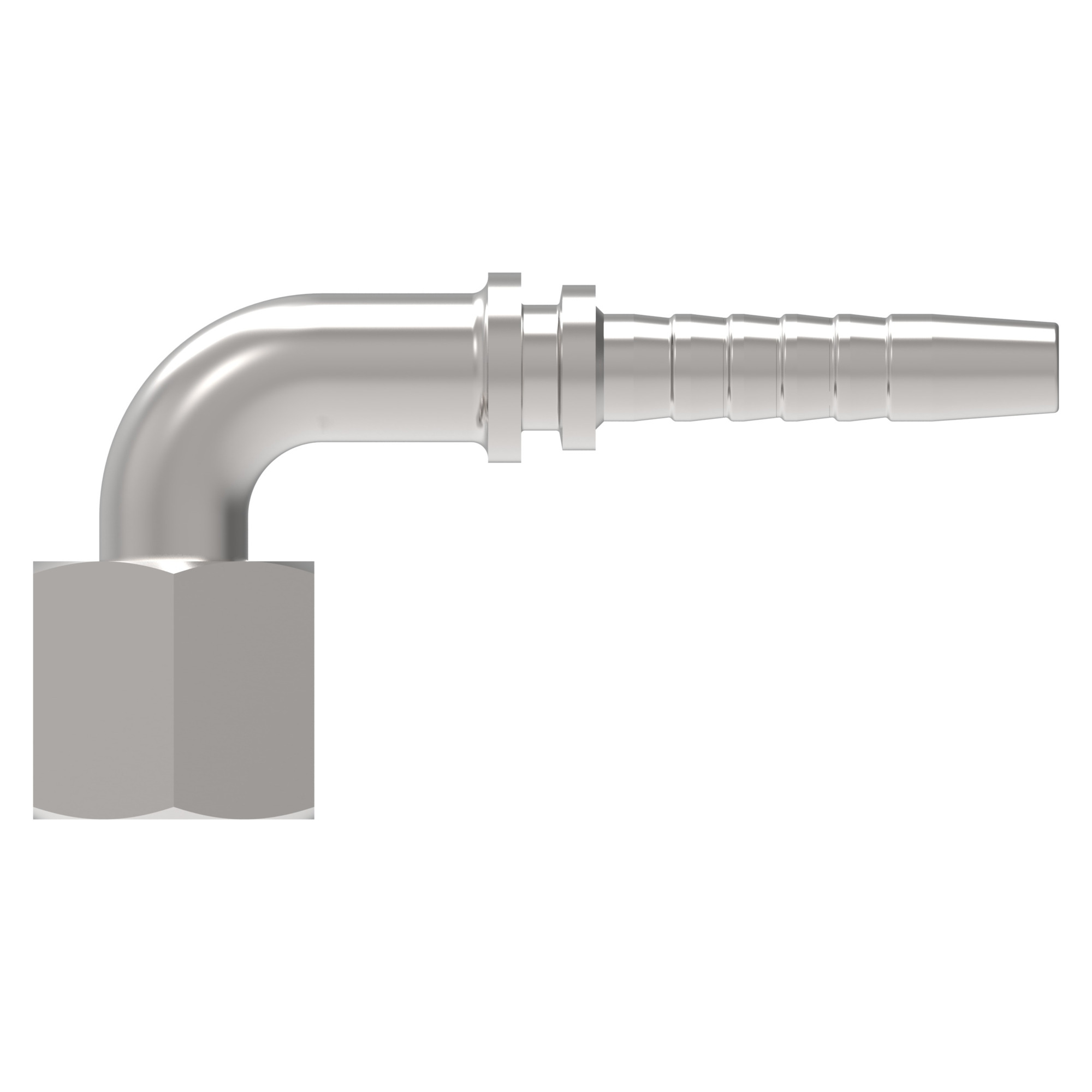

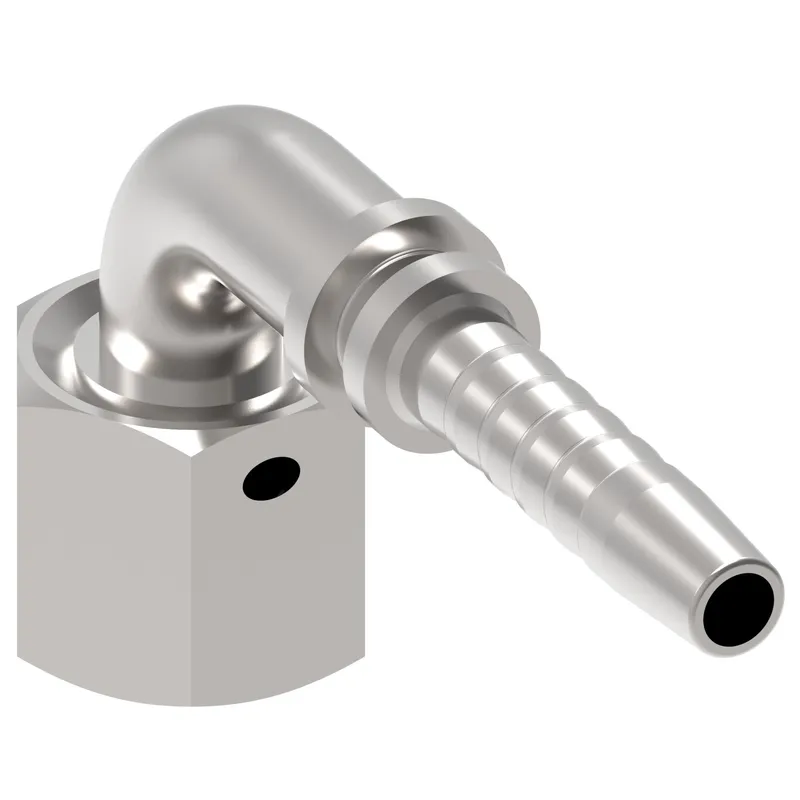

HOSE NIPPLE ASSY,2P/20,DKOH-B/42,CS,90D

MPN: 20591-42-20WZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20591-42-20WZ?

Danfoss HOSE NIPPLE ASSY,2P/20,DKOH-B/42,CS,90D, manufacturer part number 20591-42-20WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	5.728
A dimension MM	145.500
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
Drop dimension IN	3.444
Drop dimension MM	87.50
End Type 1	24 deg. DKO swivel heavy duty
Finish plating	Zinc plating
Hex size 1 IN	1.969
Hex size 1 MM	50.000
Hex size 2 IN	1.969
Hex size 2 MM	50.000
Hose cut off factor IN	3.602
Hose cut off factor MM	91.500
Hose size	-20
Inside diameter IN	1.062
Inside diameter MM	27.000
Product height in	4.350
Product height mm	110.490
Product length in	6.713
Product length mm	170.510
Product material	Carbon steel
Product width in	1.969
Product width mm	50.012
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M42x2
Tube OD 1 IN	1.181
Tube OD 1 MM	30.000
Working temperature max C	100
Working temperature min C	-40
Working temperature min F	-40
