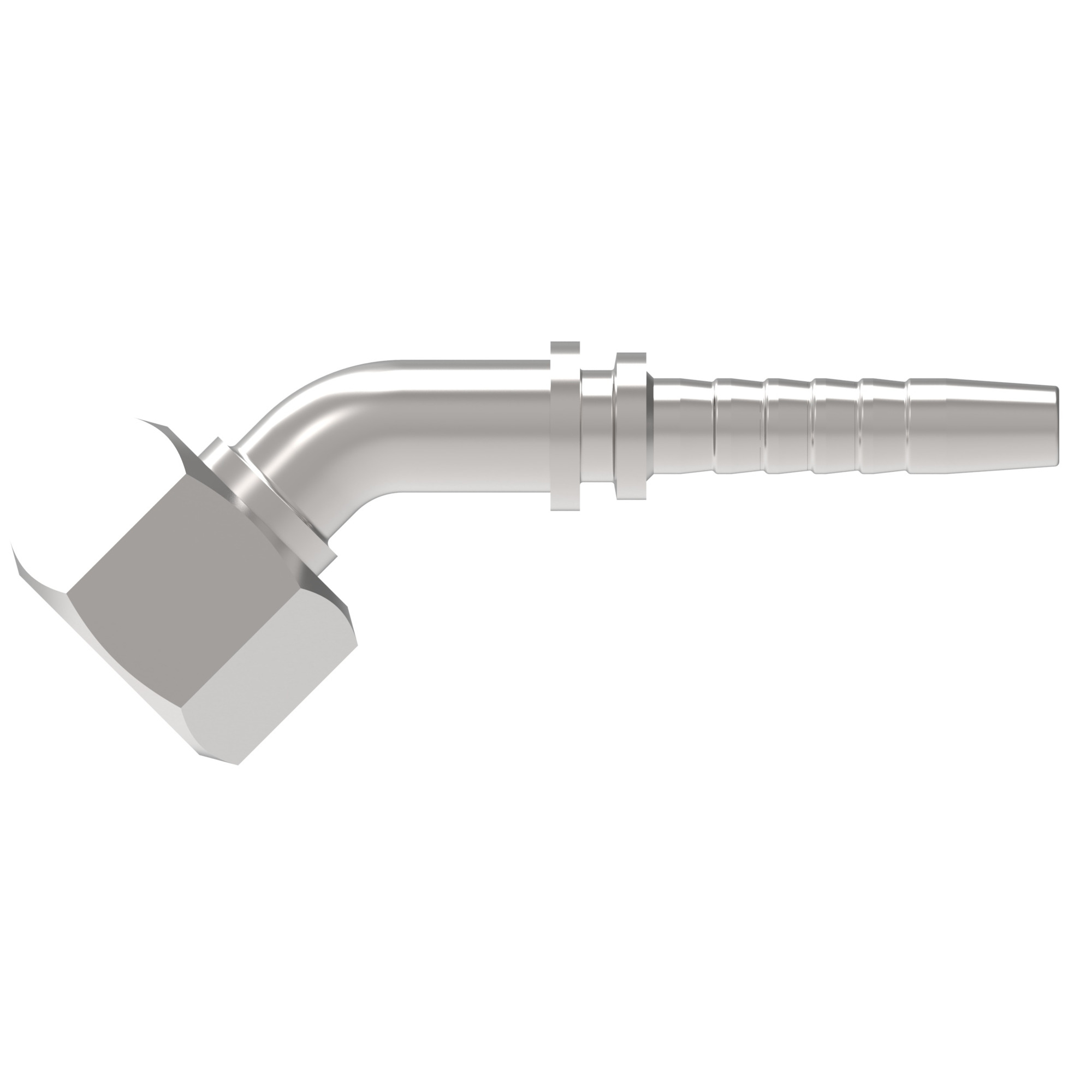

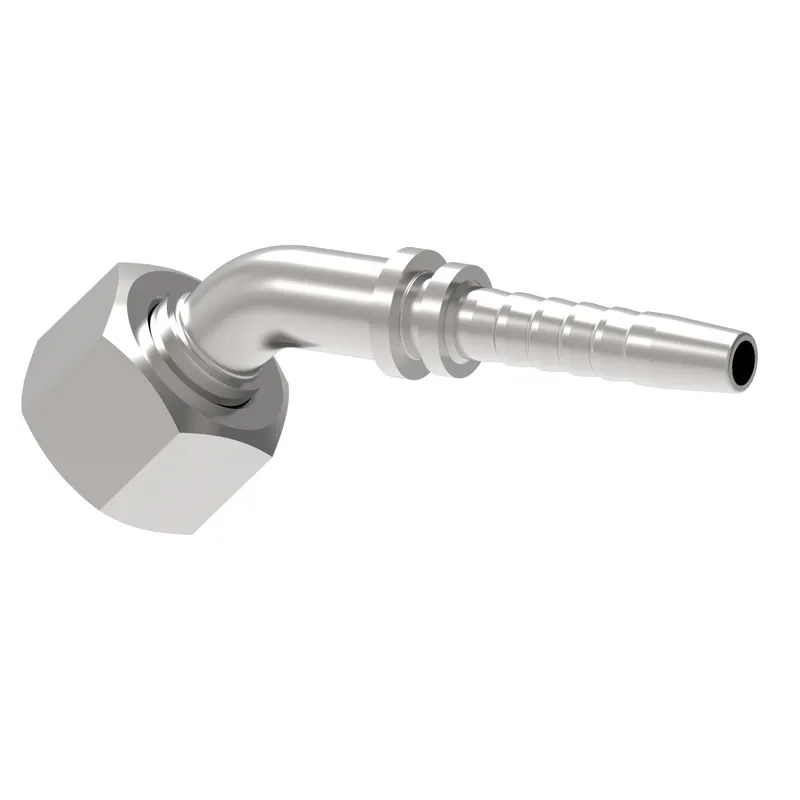

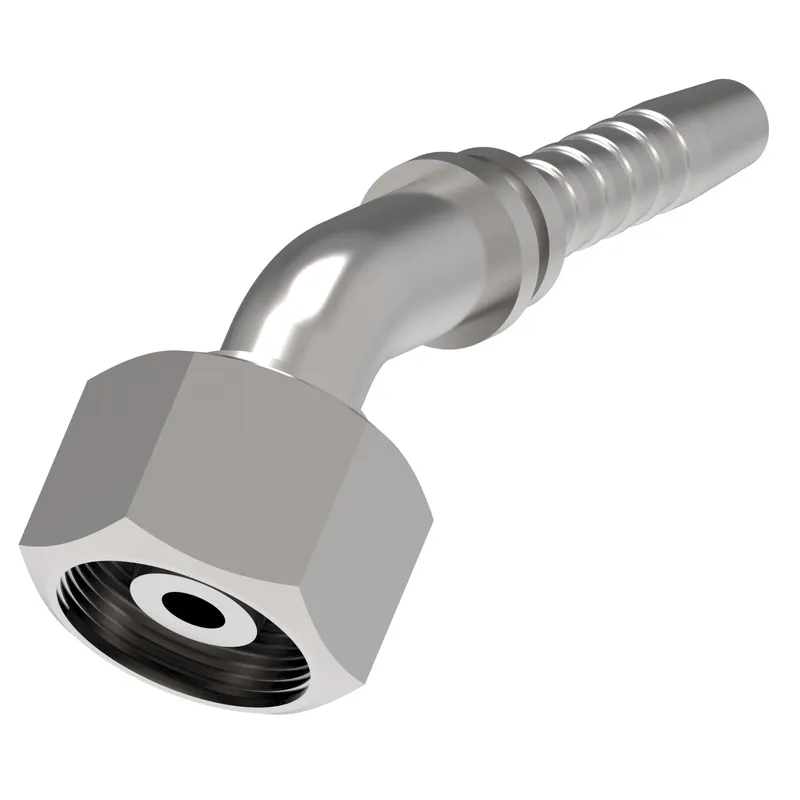

Danfoss 20541-30-12SRT

HOSE NIPPLE ASSY,2P/12,DKOH-B/30,AN,45D

MPN
20541-30-12SRT
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20541-30-12SRT?

Danfoss HOSE NIPPLE ASSY,2P/12,DKOH-B/30,AN,45D, manufacturer part number 20541-30-12SRT. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN4.106
A dimension MM104.300
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.750
Compatible hose ID MM19.000
Construction StyleCrimp
Drop dimension IN1.051
Drop dimension MM26.70
End Type 124 deg. DKO swivel heavy duty
Hex size 1 IN1.420
Hex size 1 MM36.068
Hose cut off factor IN2.590
Hose cut off factor MM65.800
Hose size-12
Inside diameter IN0.590
Inside diameter MM15.000
Product height in2.340
Product height mm59.436
Product length in4.810
Product length mm122.174
Product material304 Stainless steel
Product width in1.420
Product width mm36.068
SeriesWinner 2-Piece
Thread sealantNo
Thread size 1M30x2
Tube OD 1 IN0.787
Tube OD 1 MM20.000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

20541-30-12SRT: frequently asked questions

When can 20541-30-12SRT be shipped?

20541-30-12SRT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20541-30-12SRT in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20541-30-12SRT and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20541-30-12SRT, subject to availability and destination.
