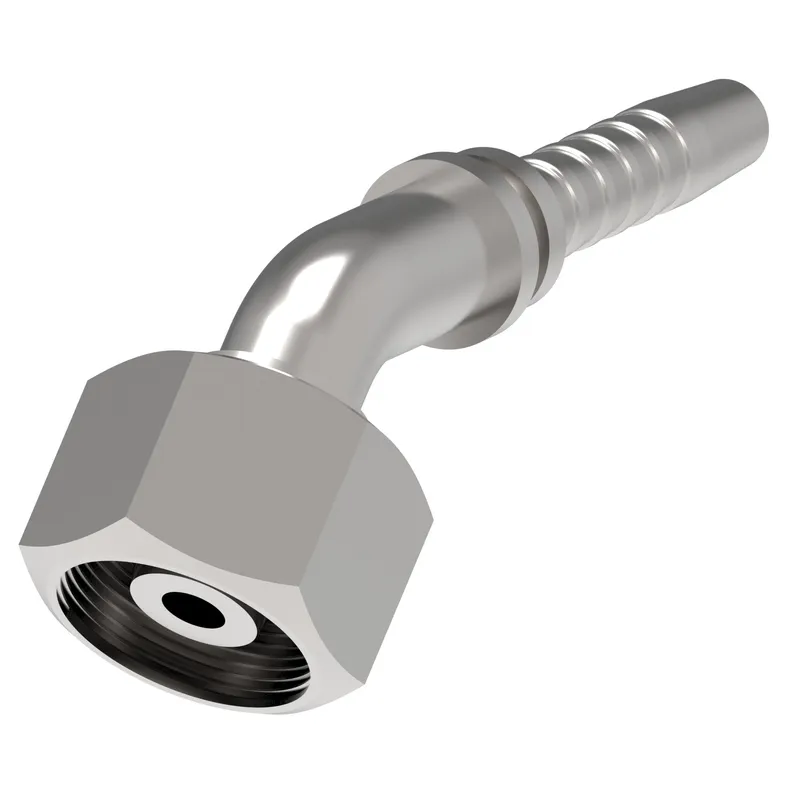

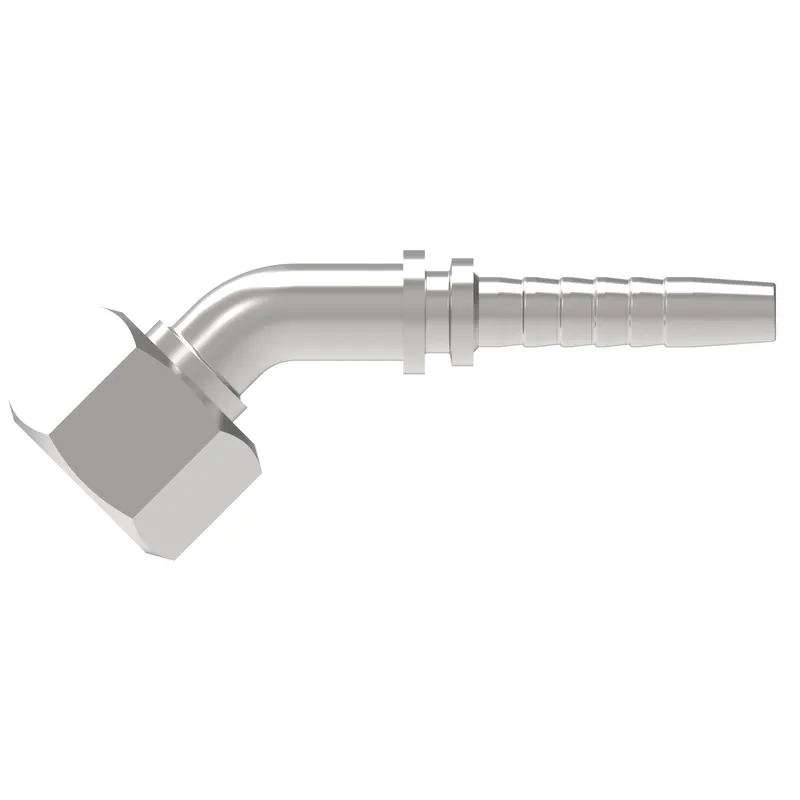

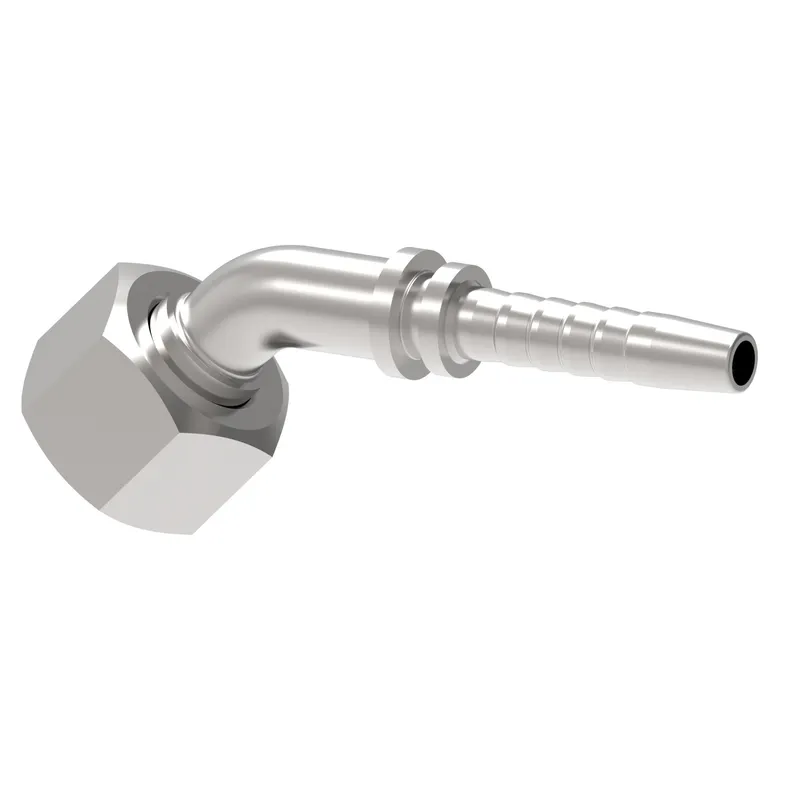

Danfoss 20541-22-06TZF

HOSE NIPPLE ASSY,2P/06,DKOH-B/22,CS,45D

MPN
20541-22-06TZF
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20541-22-06TZF?

Danfoss HOSE NIPPLE ASSY,2P/06,DKOH-B/22,CS,45D, manufacturer part number 20541-22-06TZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.830
A dimension MM72.000
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.380
Compatible hose ID MM9.500
Construction StyleCrimp
Drop dimension IN0.710
Drop dimension MM18.00
End Type 124 deg. DKO swivel heavy duty
Finish platingZinc plating
Hose cut off factor IN1.650
Hose cut off factor MM42.000
Hose size-6
Inside diameter IN0.280
Inside diameter MM7.000
Product height in1.673
Product height mm42.494
Product length in3.366
Product length mm85.496
Product materialCarbon steel
Product width in1.063
Product width mm27
SeriesWinner 2-Piece
Thread size 1M22x1.5
Tube OD 1 IN0.551
Tube OD 1 MM14.000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

20541-22-06TZF: frequently asked questions

When can 20541-22-06TZF be shipped?

20541-22-06TZF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20541-22-06TZF in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20541-22-06TZF and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20541-22-06TZF, subject to availability and destination.

More Danfoss (Drives) parts

Danfoss 20541-20-06TZF – HOSE NIPPLE ASSY,2P/06,DKOH-B/20,CS,45D
Danfoss
20541-20-06TZF

HOSE NIPPLE ASSY,2P/06,DKOH-B/20,CS,45D

Danfoss 20541-20-06WLTZ – HOSE NIPPLE ASSY,2P/06,DKOH-B/20,CS,45D
Danfoss
20541-20-06WLTZ

HOSE NIPPLE ASSY,2P/06,DKOH-B/20,CS,45D

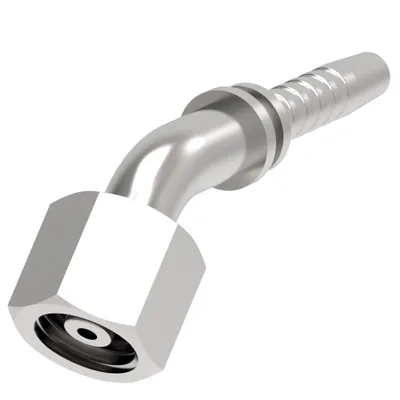

Danfoss 20541-20-08WZ – HOSE NIPPLE ASSY,2P/08,DKOH-B/20,CS,45D
