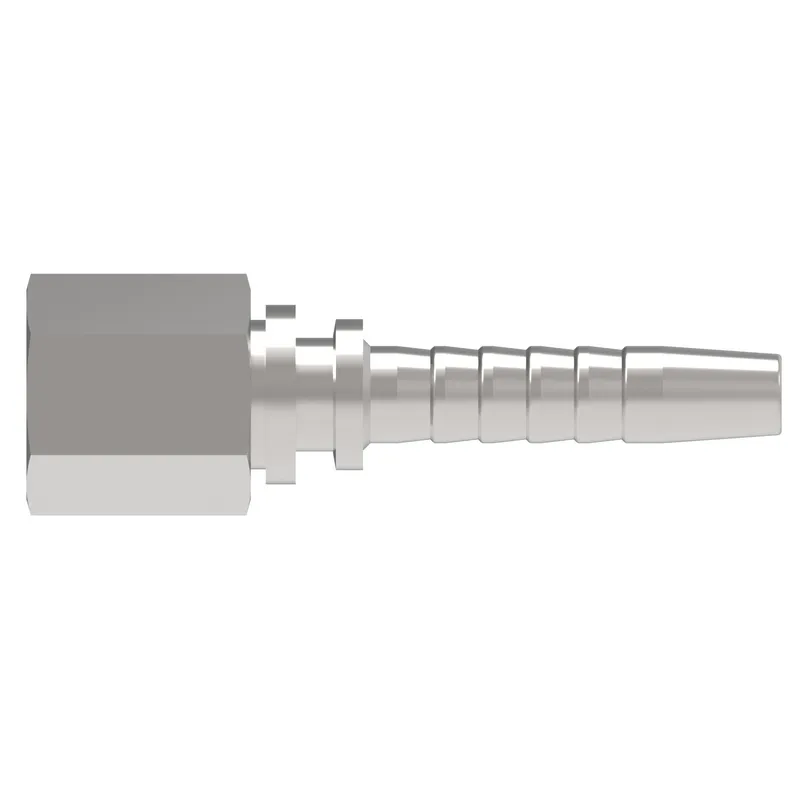

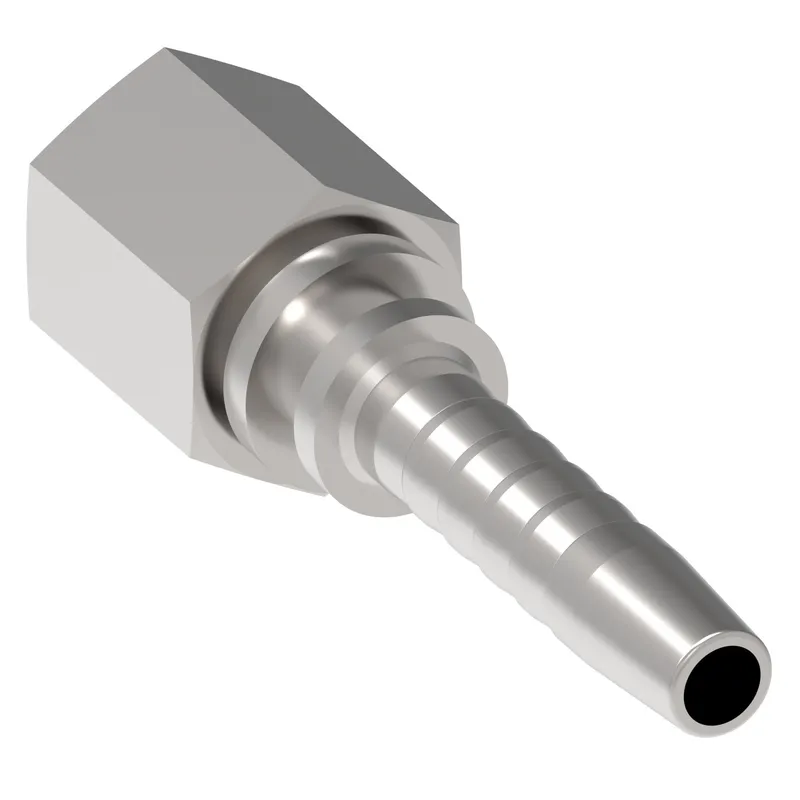

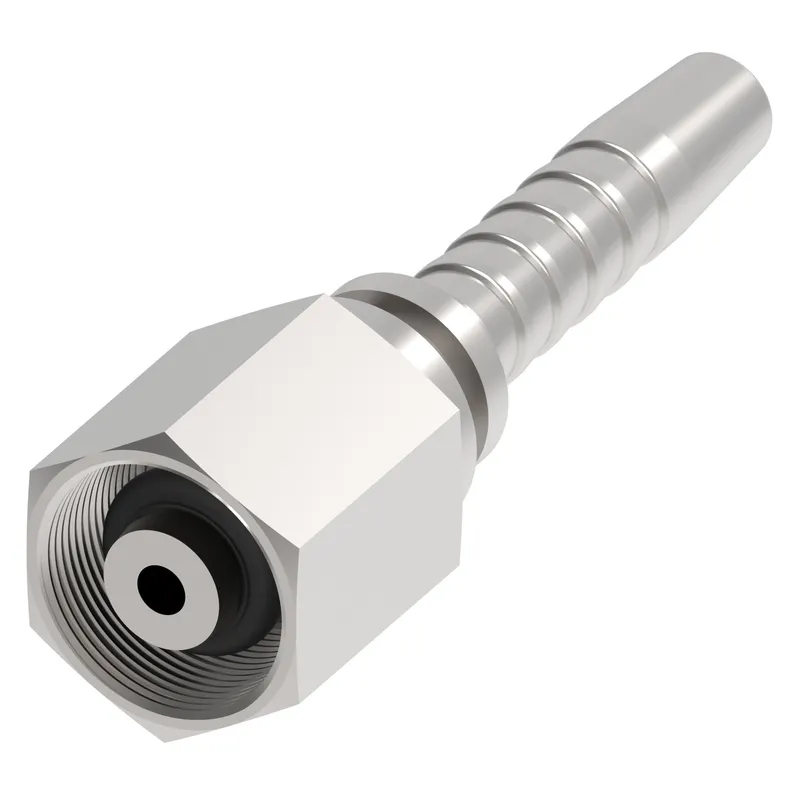

Danfoss 20511-20-08SRW

HOSE NIPPLE ASSY,2P/08,DKOH-B/20,AN,STR

MPN
20511-20-08SRW
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20511-20-08SRW?

Danfoss HOSE NIPPLE ASSY,2P/08,DKOH-B/20,AN,STR, manufacturer part number 20511-20-08SRW. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.240
A dimension MM57.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Construction StyleCrimp
End size 1-20
End size 2-8
End Type 124 deg. DKO swivel heavy duty
End Type 2Line/hose/tube
Hex size 1 IN0.950
Hex size 1 MM24.130
Hex size 2 IN1.063
Hex size 2 MM27.000
Hose cut off factor IN0.980
Hose cut off factor MM25.500
Hose size-8
Inside diameter IN0.400
Inside diameter MM10.000
Product height in1.080
Product height mm27.432
Product length in2.420
Product length mm61.468
Product material304 Stainless steel
Product width in0.940
Product width mm23.876
SeriesWinner 2-Piece
Thread sealantNo
Thread size 1M20x1.5
Tube OD 1 IN0.500
Tube OD 1 MM12.000
Working pressure max BAR172
Working pressure max PSI2500
