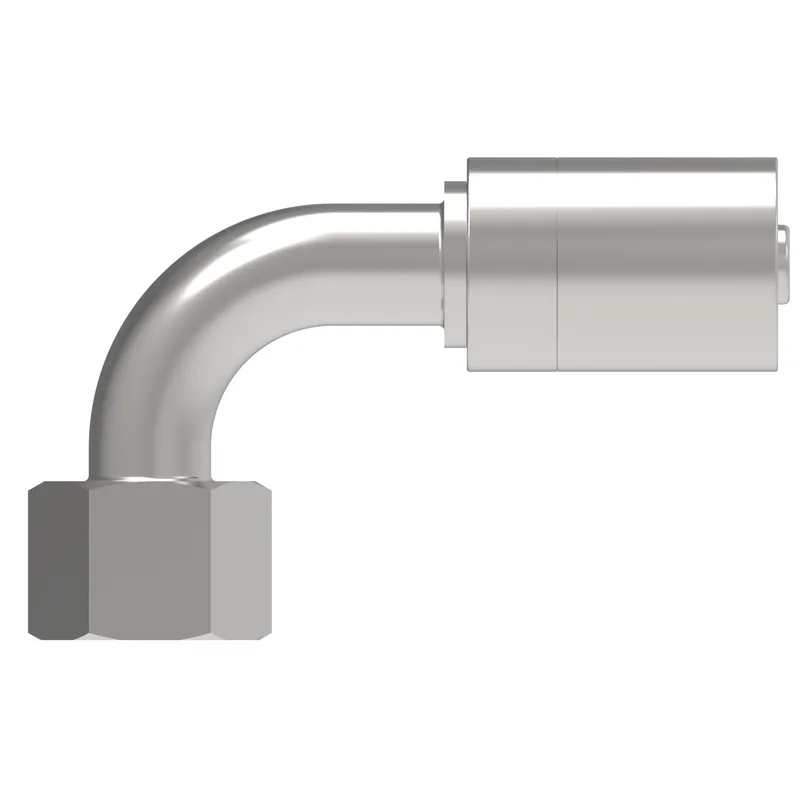

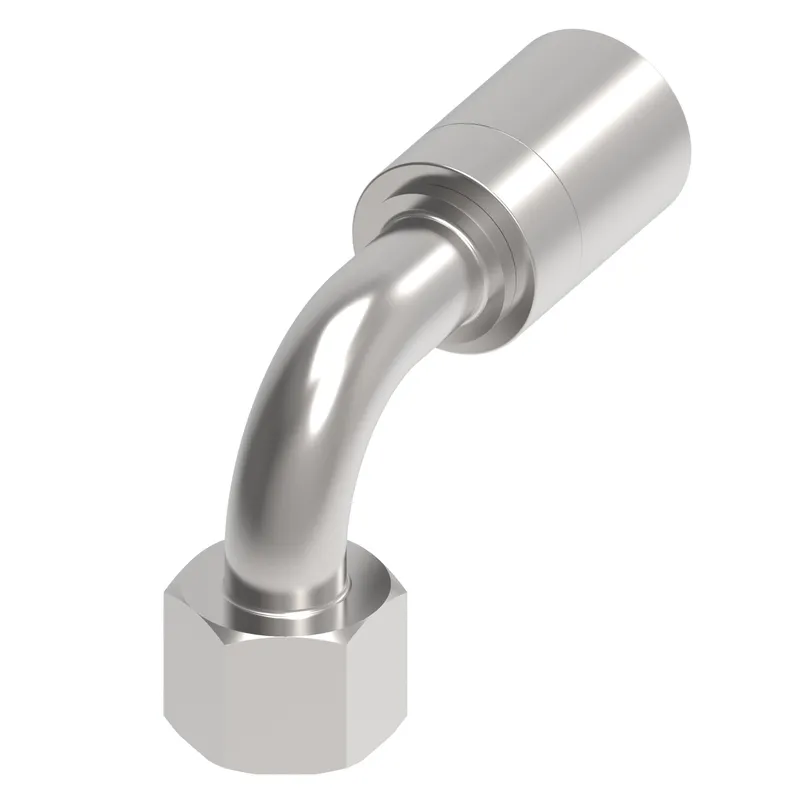

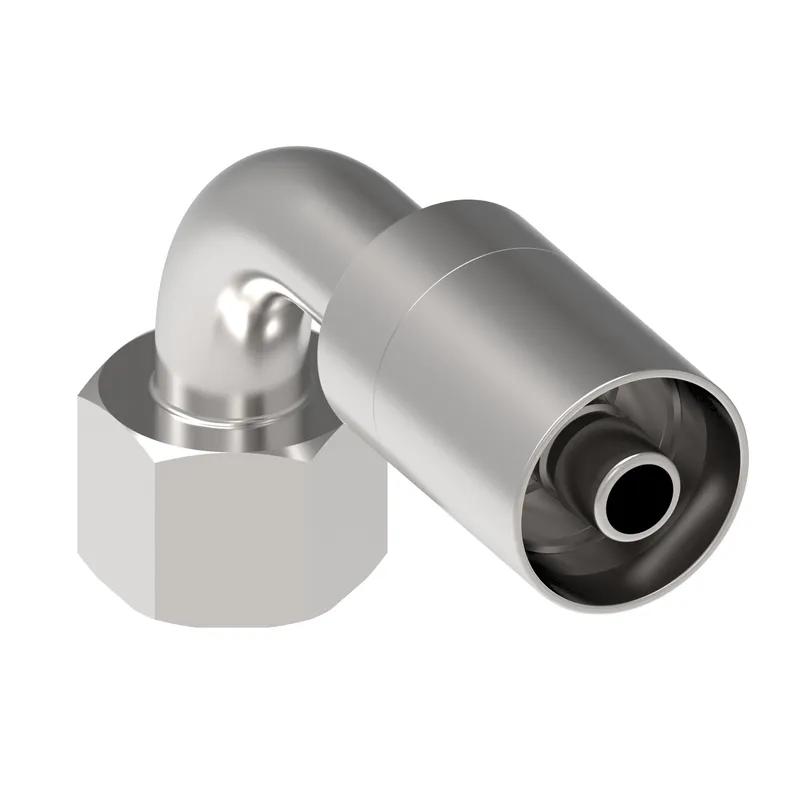

Danfoss 2049TC-22-08TZ

HOSE NIPPLE, 2P/08, DKOL/22, CS, 90D

MPN: 2049TC-22-08TZ
Category: Railway hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 2049TC-22-08TZ?

Danfoss HOSE NIPPLE, 2P/08, DKOL/22, CS, 90D, manufacturer part number 2049TC-22-08TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.910
A dimension MM	74.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
Drop dimension IN	1.633
Drop dimension MM	41.50
End type 1	24 deg. DKO swivel light duty
Finish plating	Zinc plating
Hex size 2 IN	1.063
Hex size 2 MM	27.000
Hose cut off factor IN	1.673
Hose cut off factor MM	42.500
Hose size	-8
Inside diameter IN	0.3770
Inside diameter MM	9.6000
Product height in	2.608
Product height mm	66.243
Product length in	3.444
Product length mm	87.477
Product material	Carbon steel
Product width in	1.062
Product width mm	26.974 mm
Series	Winner 2-Piece
Thread sealant	No

2049TC-22-08TZ: frequently asked questions

When can 2049TC-22-08TZ be shipped?

2049TC-22-08TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 2049TC-22-08TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 2049TC-22-08TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2049TC-22-08TZ, subject to availability and destination.
