Danfoss 20491YT-22-08WZ

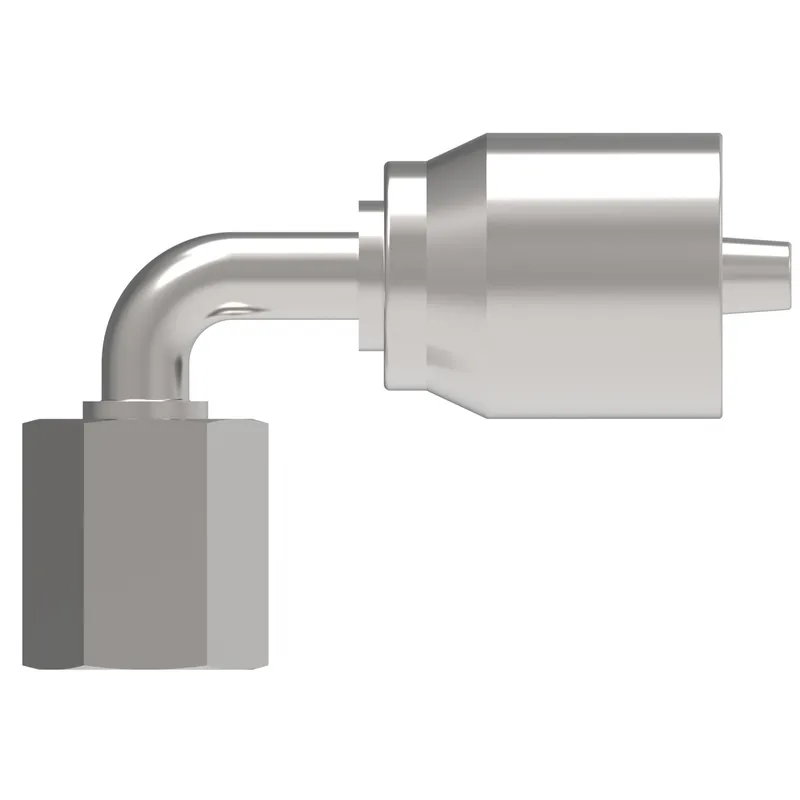

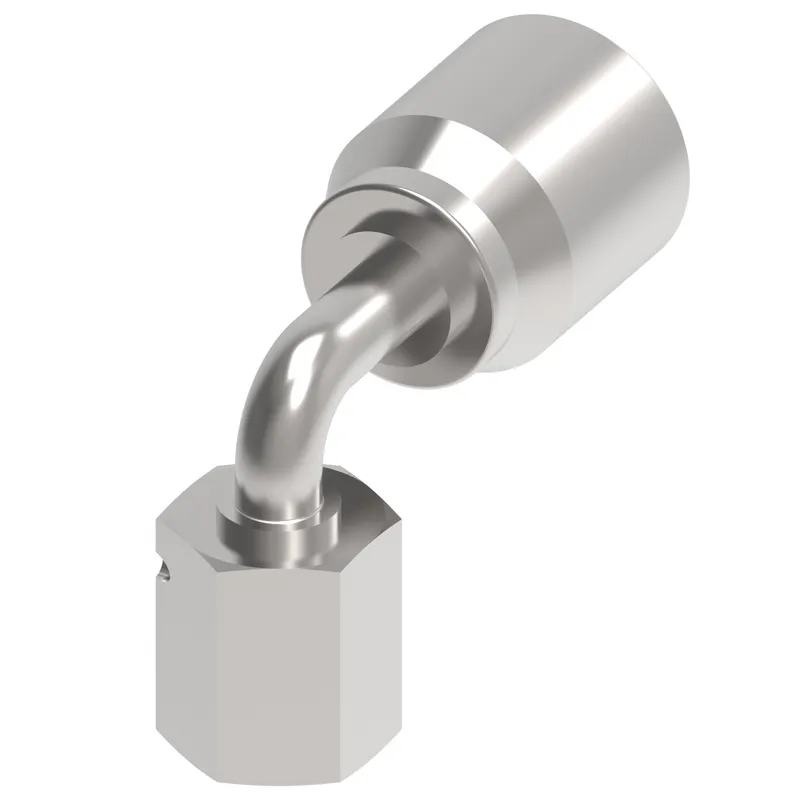

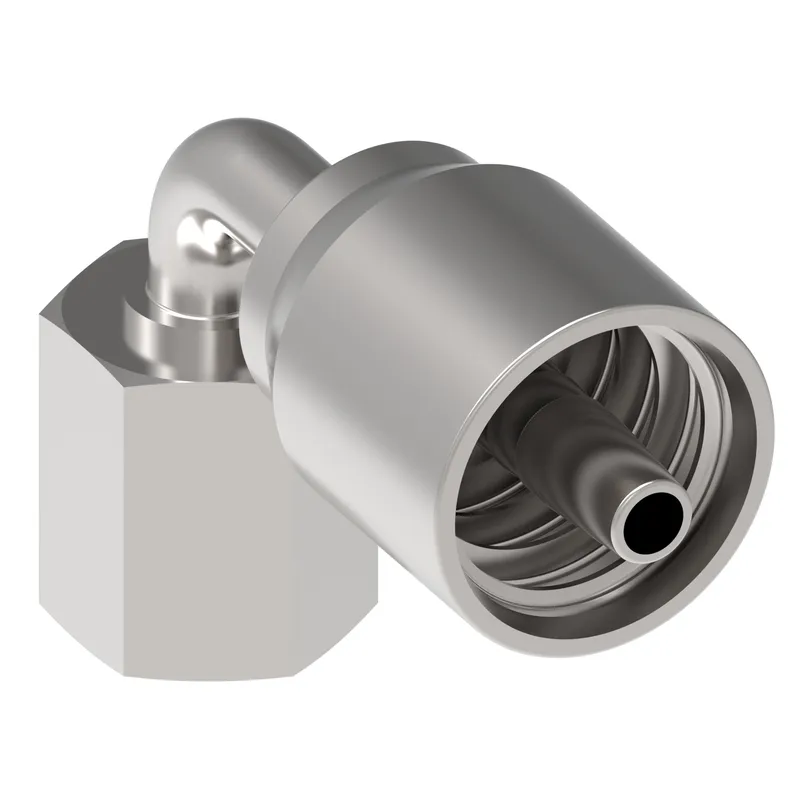

HOSE NIPPLE, 2P/08, DKOL/22, CS, 90D

MPN
20491YT-22-08WZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20491YT-22-08WZ?

Danfoss HOSE NIPPLE, 2P/08, DKOL/22, CS, 90D, manufacturer part number 20491YT-22-08WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.893
A dimension MM73.500
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Construction StyleCrimp
Drop dimension IN1.633
Drop dimension MM41.50
End Type 124 deg. DKO swivel light duty
Finish platingZinc plating
Hex size 1 IN1.060
Hex size 1 MM26.924
Hex size 2 IN1.063
Hex size 2 MM27.000
Hose cut off factor IN1.653
Hose cut off factor MM42.000
Hose size-8
Inside diameter IN0.390
Inside diameter MM10.000
Product height in2.670
Product height mm67.818
Product length in3.070
Product length mm77.978
Product materialCarbon steel
Product width in1.181
Product width mm29.997
SeriesWinner 2-Piece
Thread sealantNo

20491YT-22-08WZ: frequently asked questions

When can 20491YT-22-08WZ be shipped?

20491YT-22-08WZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20491YT-22-08WZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20491YT-22-08WZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20491YT-22-08WZ, subject to availability and destination.
